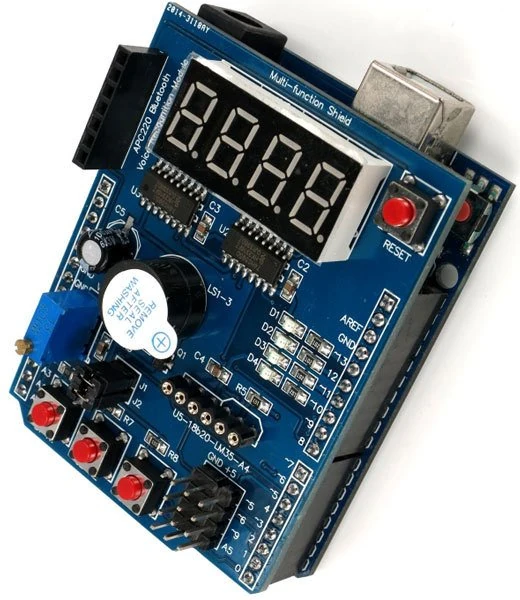

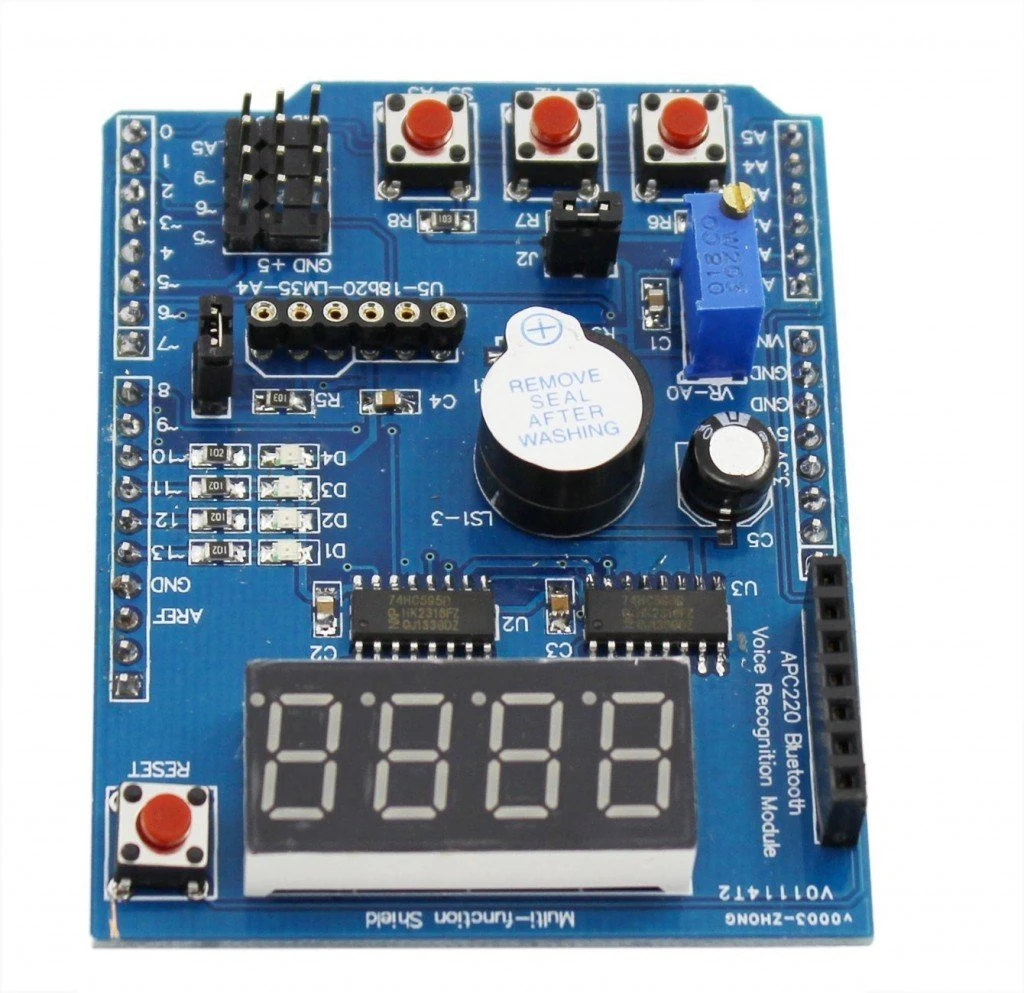

The Arduino 7-Segment Multi-Function Shield features a 4-digit 7-segment display, making it ideal for applications such as clocks, temperature measurement, and indicator systems.
It includes pre-configured header connections for direct use with various temperature sensors and Bluetooth modules. The board is equipped with 3 push buttons, 1 trimpot (connected to Analog 0), and a buzzer for versatile interaction and feedback.
Technical Specifications:
- Compatible with: Arduino UNO, Leonardo, Mega
- Display: 4-digit 7-segment display (driven by 74HC595)
- Temperature Sensor Support: Dedicated headers for DS18B20 and LM35 sensors
- Trimpot: 3296 trimpot connected to Analog 0 (can be used for voltage reading, LED brightness adjustment, etc.)
- Infrared Receiver Connection: Suitable for remote control applications
- Buzzer: Ideal for alarm and melody applications
- Module Support: Header connection for Bluetooth or voice recognition modules
- Additional Connectivity: 4 header connectors linked to digital pins 5, 6, 9 and analog pin 5 for easy sensor integration
- Dimensions: 69 x 54 x 11 mm
- Weight: 27 g
