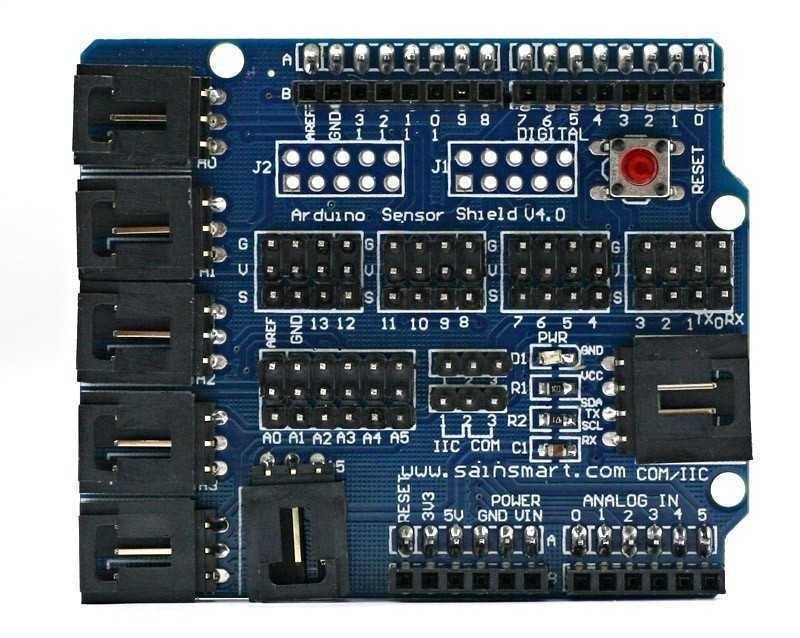

The Arduino Uno Sensor Shield is a highly practical board designed to allow you to easily connect multiple input/output modules to your Arduino.
It is specifically designed for the Arduino UNO R3, but can also be used with Arduino Leonardo and other boards with a similar pin layout.

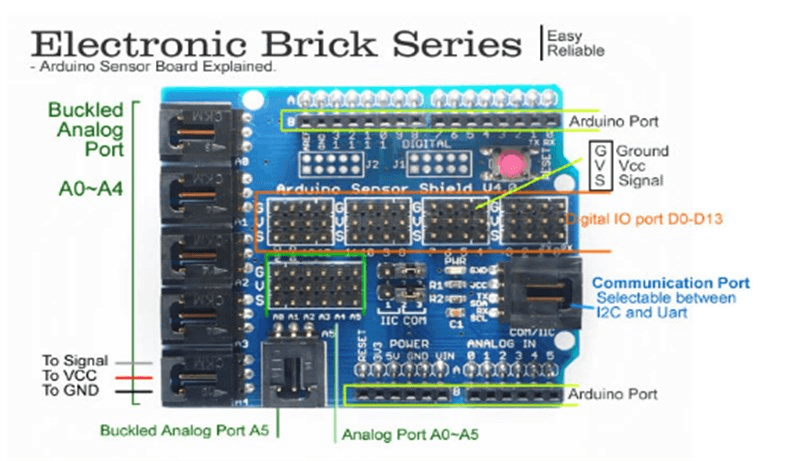

All Arduino I/O pins are arranged on the board as 3-pin groups (DATA, VCC, GND) and distributed in an organized layout. This allows you to easily connect sensors, servo motors, relays, and other modules.
Additionally, the UART and I2C ports are separated into dedicated sections for easier access. The "Communication Port" connector can be configured as either I2C or UART using onboard jumpers.
The Arduino Uno Sensor Shield is fully compatible with Arduino Uno. It can also be used with Leonardo and Mega boards, however, I2C and SPI ports cannot be used on these models due to different pin mappings.
All headers and connectors come pre-soldered.
