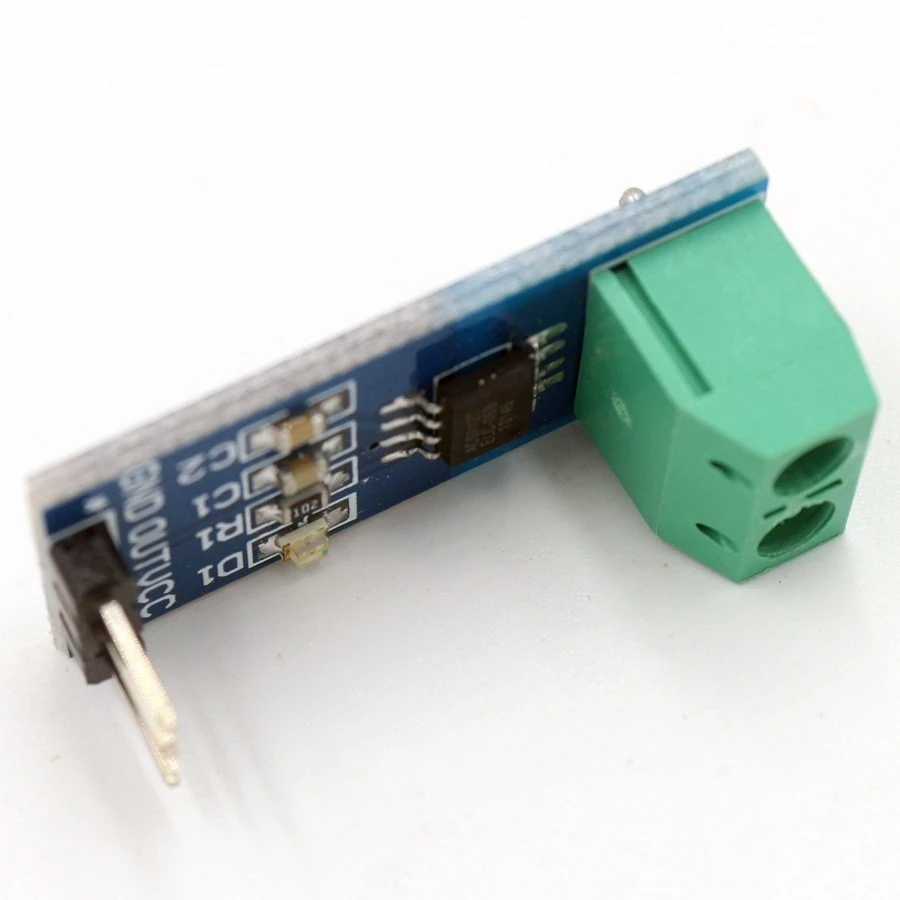

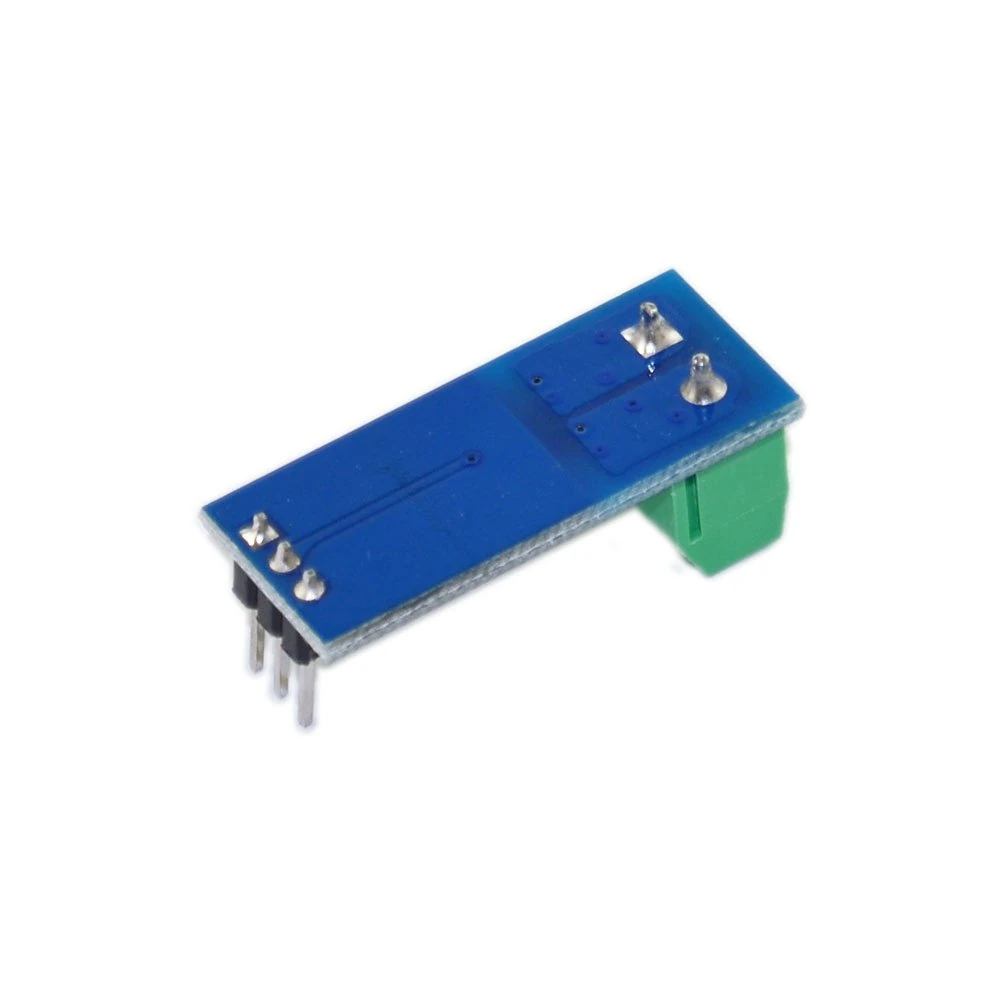

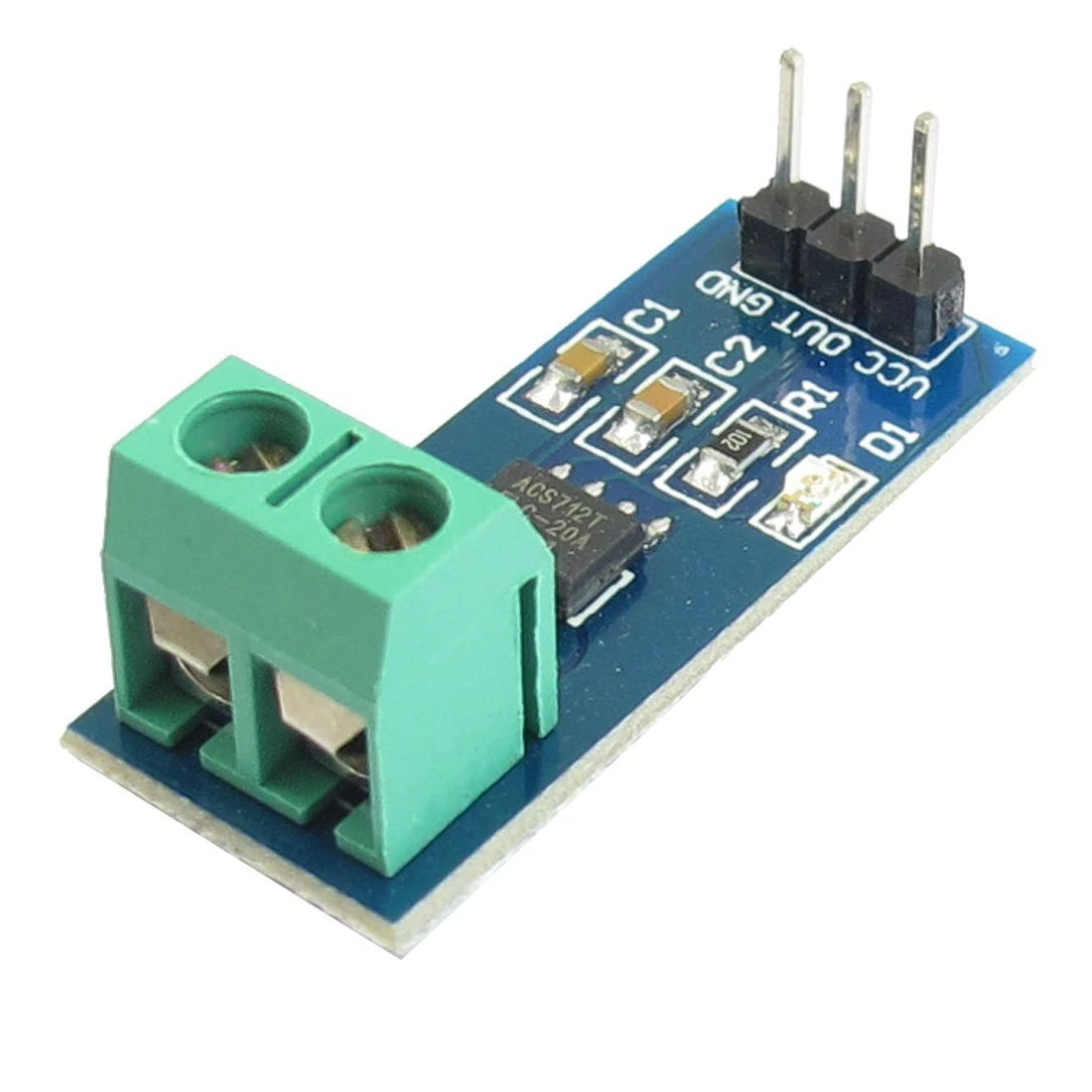

This board is a ±5A ACS712T ELC-5B Hall-effect based linear current sensor developed by Allegro Microsystems. This version allows bidirectional current input up to 5A. It provides an analog voltage output (185 mV/A) with an error margin below 5%.
It is designed for bidirectional input current from -5A to +5A (the stable sensor IC can withstand up to 5 times overcurrent).
The internal conductor resistance is typically 1.2 mΩ.
The internal conductor resistance is typically 1.2 mΩ.
Using a Hall-effect sensor allows the IC to electrically isolate the current path from the sensor electronics (up to 2.1 kV RMS). This enables the sensor to be installed anywhere along the current path and used in applications requiring electrical isolation.
By adding a capacitor to the filter pins on the board, the 80 kHz bandwidth can be optionally reduced.
High accuracy and reliability:
- Typical total output error: 4% (at room temperature, factory calibrated)
- Highly stable output offset voltage
- Near-zero magnetic hysteresis
The IC sensor can withstand overcurrent conditions up to 5 times.
Operating temperature range: -40°C to +85°C.
Operating temperature range: -40°C to +85°C.
Features:
- Minimum operating voltage: 3V
- Maximum operating voltage: 5.5V
