5A Single Phase AC Current Sensor Module
0 Comment
SKU:
Stock:
$ 3.00
More:Voltage & Current

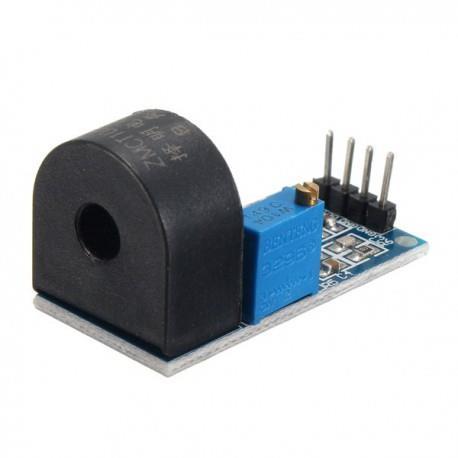

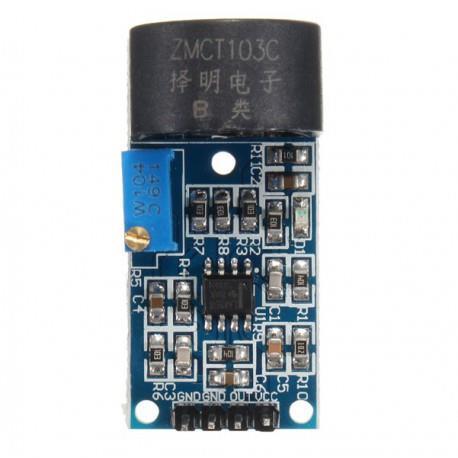

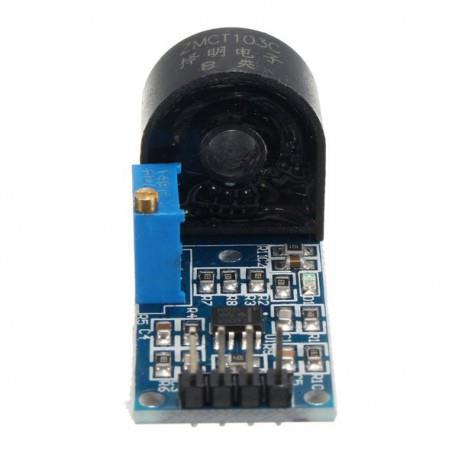

The 5A Single Phase AC Current Sensor Module is designed to measure AC current in the range of 0–5A.
The module provides an output signal of 1/2 VCC AC voltage through its pins. The output voltage can be adjusted using the onboard trimpot.
Technical Specifications:
- Nominal Input Current: 5A
- Nominal Output Current: 5 mA
- Turns Ratio: 1000:1
- Phase Difference (Nominal Input): ≤20′ (100Ω)
- Linearity Range: 0–10A (100Ω)
- Linearity: 0.2%
- Accuracy Class: 0.2
- Insulation Voltage: 3000V
- Encapsulation Material: Epoxy resin
- Operating Temperature: -40°C to +70°C
