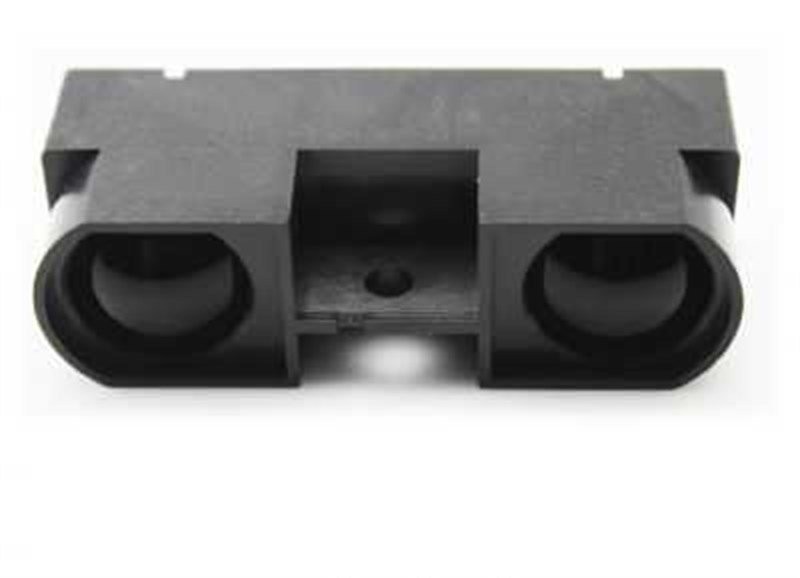

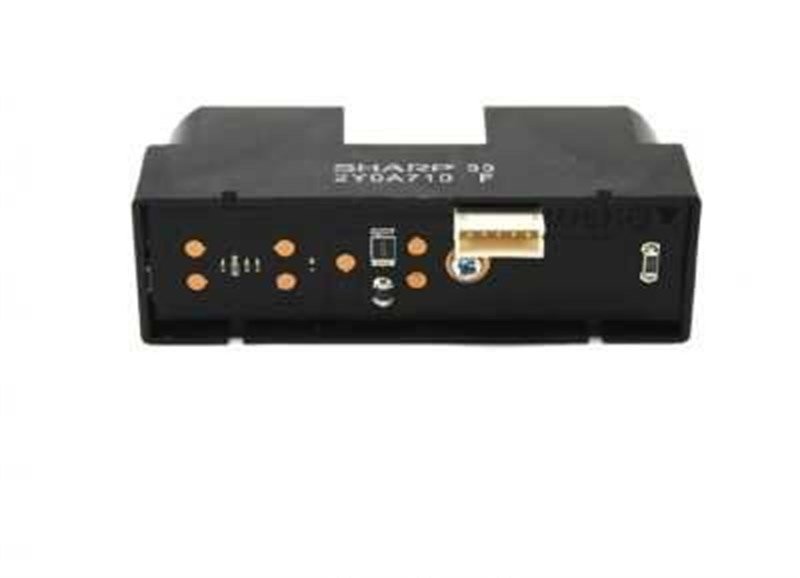

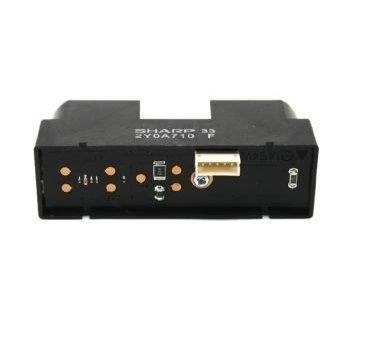

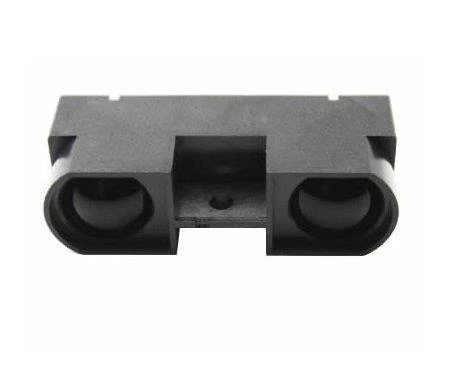

Name: Sharp GP2Y0A710 Long Range Infrared Sensor 100-550cm
Brand: Sumozade
SKU: 114
Price: 29.00 USD
Availability: OutOfStock

Robot Parts, Robot Kits, Mini Sumo Robot, Line Follower Robot, Lipo Battery, Dc Gear Motor and All Robot Parts are at Sumozade.com with Affordable Prices.

Sumozade Robotics | Robot Parts | Robot Kits | Robot Shop

İstanbul

Türkiye

Şişli

Default

{{name}} {{price}} | Sumozade.com

{{name}}Sumozade.com

Metin Listesi

Metin Verisi

Görsel

Metin

Menü Linkleri

Menü Link

İkon

Ana Link

Oran

Link

Alt Linkler

Alt link

Görsel ve Link Listesi

Görsel ve Link

Footer Linkleri

Footer Link

Başlık

Linkler

İçerik

Özel Link Listesi

Özel Link

Renk

İkon Listesi

İkon Verisi

Açıklama

Taksit Listesi

Taksit Verisi

Logo

Taksitler

Taksit

Detaylı Veri

Sekmeler

Sekme

Sekme Adı

Liste Verileri

Bildirimler

Bildirim

Yazı

Komponentler

Komponent Verisi

Komponent

Form Elemanları

Form Elemanı

Seçenekler (Seçim Türü İse)

Seçenek

Metinler

Kategori-Görsel Listesi

Kategori-Görsel

Kategori

Sumozade

This is a high quality product which is produced by sharp. It can measure distance within 100-550cm range. It has a sensitivity of 3mm. It can be used in robotic or electronic applications. The sensor comes with a 5 headed signal and control cable.<div><ul><li>Operating Voltage DC 4.5-5.5V</li><li>Current Draw 30 mA</li><li>Minimum Sight Range: 100cm</li><li>Maximum Sight Range: 550cm</li><li>Analog Voltage Output</li><li>Dimensions 58mm x 17.6mm x 22.5mm</li></ul></div><div>Documents:</div><ul><li><a href="http://38789.static.securearea.eu/Files/2/38000/38789/Attachments/Product/17LS732y16L360j55O47t7w7XY705rkE.pdf" target="_blank">Sensor Datasheet</a></li></ul>

Sharp GP2Y0A710 Long Range Infrared Sensor 100-550cm

Pololu

<div style="color: rgb(0, 0, 0);"></div><div style="color: rgb(0, 0, 0);"></div>The QTR-8A reflectance sensor array is intended as a line sensor, but it can be used as a general-purpose proximity or reflectance sensor. The module is a convenient carrier for eight IR emitter and receiver (phototransistor) pairs evenly spaced at intervals of 0.375" (9.525 mm). Each phototransistor is connected to a pull-up resistor to form a voltage divider that produces an analog voltage output between 0 V and VIN (which is typically 5 V) as a function of the reflected IR. Lower output voltage is an indication of greater reflection.The outputs are all independent, but the LEDs are arranged in pairs to halve current consumption. The LEDs are controlled by a MOSFET with a gate normally pulled high, allowing the LEDs to be turned off by setting the MOSFET gate to a low voltage. Turning the LEDs off might be advantageous for limiting power consumption when the sensors are not in use or for varying the effective brightness of the LEDs through PWM control.The LED current-limiting resistors for 5 V operation are arranged in two stages; this allows a simple bypass of one stage to enable operation at 3.3 V. The LED current is approximately 20-25 mA, making the total board consumption just under 100 mA.<img src="http://sumozade.com/Data/EditorFiles/QTR-8A_Reflectance_Sensor_Array.jpg?1506436350829" alt="" width="540" height="151"> <img src="http://sumozade.com/Data/EditorFiles/QTR-8A_Reflectance_Sensor_Array_sale.jpg?1506436445650" alt="" width="540" height="155">Features:<ul style="color: rgb(0, 0, 0);"><li>Dimensions: 75x 13x3 mm</li><li>Operating Voltage: 3.3-5.0 V</li><li>Current Draw: 100 mA</li><li>Otput Type: 8 Analog Voltage</li><li>Output Voltage Range: 0V to Vcc</li><li>Optimal Sensing Distance: 3 mm</li><li>Maximum Sensing Distance: 6 mm</li><li>Weight: 3,09 gr.</li></ul> <img src="http://sumozade.com/Data/EditorFiles/qtr_8a_pin_map_out_schematic.jpg?1506436641688" alt="" width="540" height="393">&nbsp;There are several ways you can interface with the QTR-8A outputs:<ul style="color: rgb(0, 0, 0);"><li>Use a microcontroller’s analog-to-digital converter (ADC) to measure the voltages.</li><li>Use a comparator with an adjustable threshold to convert each analog voltage into a digital (i.e. black/white) signal that can be read by the digital I/O line of a microcontroller.</li><li>Connect each output directly to a digital I/O line of a microcontroller and rely upon its internal comparator.</li></ul>&nbsp;&nbsp;<div style="color: rgb(0, 0, 0);"><div>If you don’t need or cannot fit all eight sensors, you can break off two sensors and still use all 8 sensors as two separate modules, as shown below. The PCB can be scored from both sides along the perforation and then bent until it snaps apart. Each of the two resulting pieces will function as an independent line sensor.</div></div><div style="color: rgb(0, 0, 0);"></div><div style="color: rgb(0, 0, 0);"></div>&nbsp;<img src="http://sumozade.com/Data/EditorFiles/qtr8aaa.jpg?1506436791038" alt="" width="540" height="301">&nbsp;<div>Documents:</div><div><ul><li><a href="http://www.pololu.com/docs/pdf/0J12/QTR-8x.pdf">QTR-8A and QTR 8-RC Manual</a></li><li><a href="http://www.pololu.com/docs/pdf/0J13/QTR_application_note.pdf">Pololu QTR Senso</a><a href="http://www.pololu.com/docs/pdf/0J13/QTR_application_note.pdf">r Application Note</a></li><li><a href="http://www.pololu.com/docs/pdf/0J19/QTR_arduino_library.pdf">Arduino Library for QTR Sensors</a></li><li><a href="http://www.pololu.com/docs/pdf/0J20/pololu_avr_library.pdf">Pololu AVR C/C++ Library Usage Guide</a></li><li><a href="http://www.pololu.com/docs/pdf/0J18/avr_library_commands.pdf">Detailed Information about Pololu AVR Library</a></li><li><a href="http://www.pololu.com/docs/pdf/0J22/building_line_courses.pdf">A Document about Line Following Robots and Labyrinth Solver Robots</a></li><li><a href="http://webdelcire.com/wordpress/archives/619">Robot Zero: A Well Prepared Line Following Robot</a></li></ul></div>&nbsp;&nbsp;&nbsp;

QTR-8A Reflectance Sensor Array

Pepperl Fuchs

It is a Diffuse mode sensor with adjustable until 1000 mm detection range, it has red light.&nbsp; Technical Specifications:Operating voltage: 10-30 V DCSwitching type The switching type of the sensor is adjustable.&nbsp;The default setting is: light on Signal output 1 PNP output, short-circuit protected, reverse polarity protected, open collector.Detection range 0 ... 1000 mm adjustable. Light source LED.Light type modulated visible red light.Connection 2 m fixed cable; <ul><li style="border: 0px; margin: 5px 0px 5px 10px; padding: 0px; list-style-type: disc;">Brown&nbsp;: + 10-30VDC ( VCC )</li><li style="border: 0px; margin: 5px 0px 5px 10px; padding: 0px; list-style-type: disc;">Blue : - ( GND )</li><li style="border: 0px; margin: 5px 0px 5px 10px; padding: 0px; list-style-type: disc;">Black&nbsp;: Signal&nbsp; Output</li></ul>

Pepperl Fuchs ML100-8-1000 infrared Object Sensor

It is a fast response digital sensor with a range of 80 centimeters for projects such as Mini Sumo Robot and etc.The distance of the sensor can be adjusted between 1-80 cm with the trimpot on the sensor.You can easily use it even in the fastest robots with its 2 ms. response time.You can gain an advantage over your competitors by using this high-quality sensor in your degree-oriented robot projects. Technical SpecificationsWorks with 5Volt2ms. response time80Cm sensing distanceWorking current is only 40mABrown: (+) 5 Volt VCCBlue: (-) GNDBlack: (Signal) OutPutSensor Dimensions Only: 31 x 25.3 x 12.8 mm

FS80 Object Sensor - 80cm

RZ60S has distance 60 cm and a fast reaction time. It is high-quality diffuse mode micro sensor for mini sumo robot designs. It is the sensor that will end all sensors (Sharp / MZ80 / FS80 / Omron etc.) in the market!Good and economical sensor which can be used for many robots  projects with high response and long range in this size. It is the smallest sensor in the world produced for robot projects in these sizes. It will not cause any delay due to the dual transmitter in the sensor. You can use it especially in mini-sumo robot and line follower robots also as an obstacle or door detection sensor . You can see the response of the sensor with the red LED on the back of the sensor,  It is designed to be easily used without connecting any circuit elements to the sensor to operate the sensor. General specifications;<ul><li>Operating voltage :  5VDC, reverse polarity protected</li><li>Detection range :    0 … 600 mm</li><li>Response Time: 0,5 ms</li><li>Light source :     modulated visible red light</li><li>Signal output :   1 PNP output, open collector, when the sensor is detecting something output goes high</li></ul> Size &amp; Weight11.7mm(4.7 inches) Length x 6.93mm(2.75 inches) Width x 8,75 mm(3.45 inches) Height.It is 2 grams weight. It comes with 20 cm cable.  Wire ConnectionRZ60S has 3 connections:<ul><li>Ground (Black)</li><li>logic power (Red),</li><li>Signal Output (Yellow)</li></ul>                                                   <img src="/class/INNOVAEditor/assets/RZ-60S Kızılötesi Mesafe Sensörü Ölçüler.jpg" alt="" border="0" style="margin: 0px;" /><img src="/class/INNOVAEditor/assets/RZ-60S Kızılötesi Mesafe Sensörü-3.jpg" alt="" border="0" style="float: none; margin: 0px; width: 600px; height: 400px;" /><ul><li> </li></ul>

Sharp GP2Y0A710 Long Range Infrared Sensor 100-550cm
