MZ80 Object Detection Sensor – 80cm Range Infrared Sensor
0 Comment
$ 3.00
More:Sumozade
The MZ80 Object Detection Sensor is a high-quality industrial infrared sensor with digital output, suitable for a wide range of electronic and robotics projects. It is commonly used in award-winning robot projects and various automation applications.
Thanks to its cost-effective and reliable design, the MZ80 sensor can be used smoothly in many different projects.
Features:
- Digital output, high-quality industrial sensor
- Adjustable detection range from 3 cm to 80 cm via onboard trimpot
- NPN output type
- Operating Voltage: 5V
- Fast response time: 2 ms

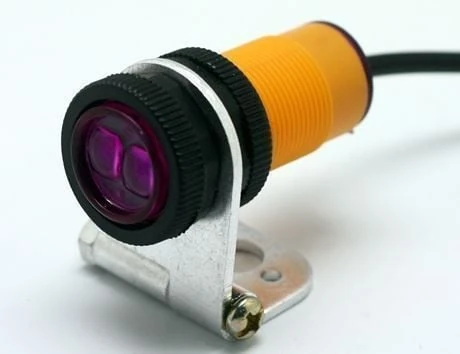

- Easy mounting with included mounting bracket

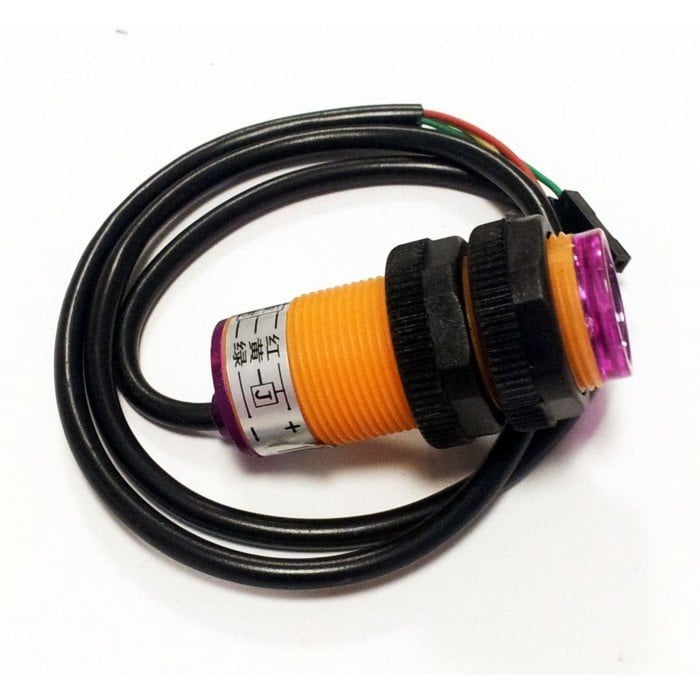

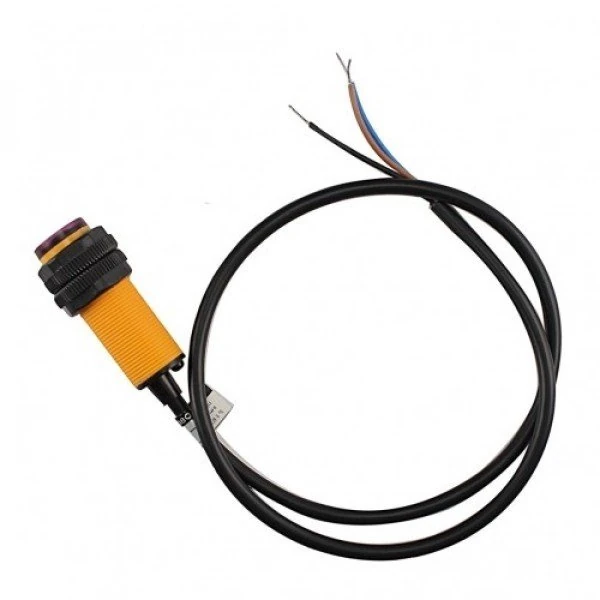

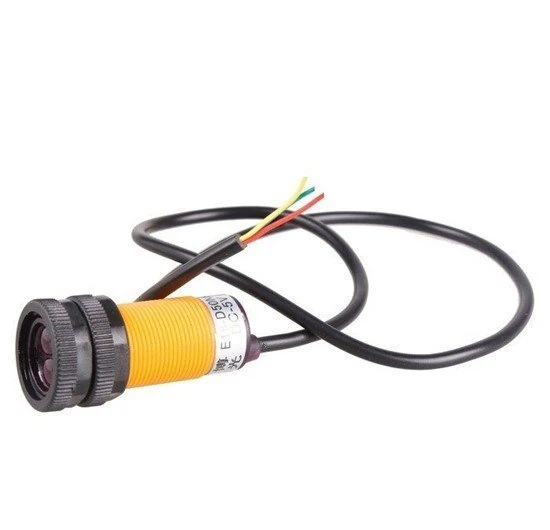

Cable Connections (may vary depending on batch):
- Brown: +5V
- Blue: GND
- Black: Data Output
or
- Red: +5V
- Green: GND
- Yellow: Data Output
Dimensions: 1.7 cm (diameter) x 4.5 cm (length)
Applications:
- Automation systems
- Sensor-based disinfectant machines
- Obstacle detection
- Object counting
- Security systems
- Maze-solving robots
- Sumo robots
