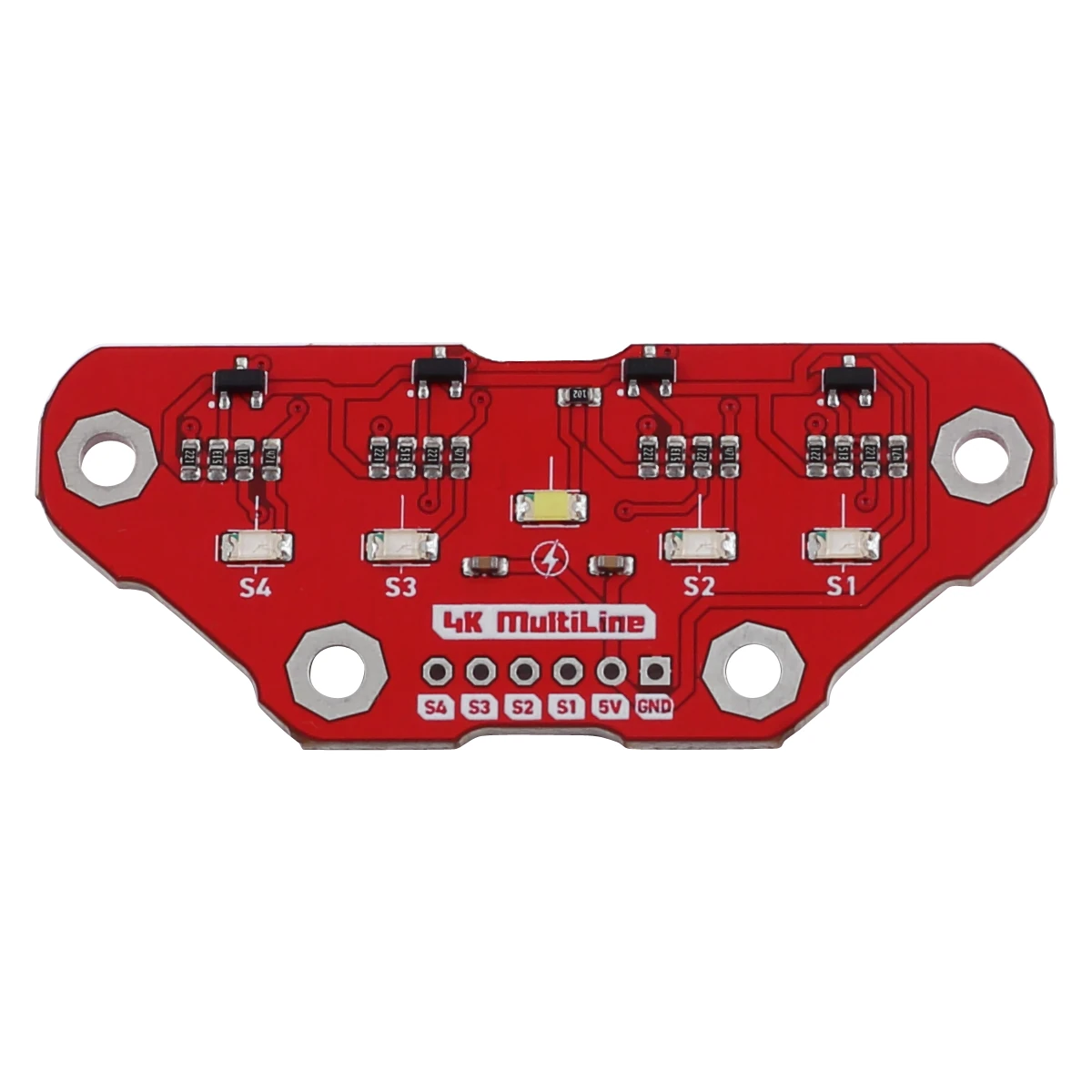

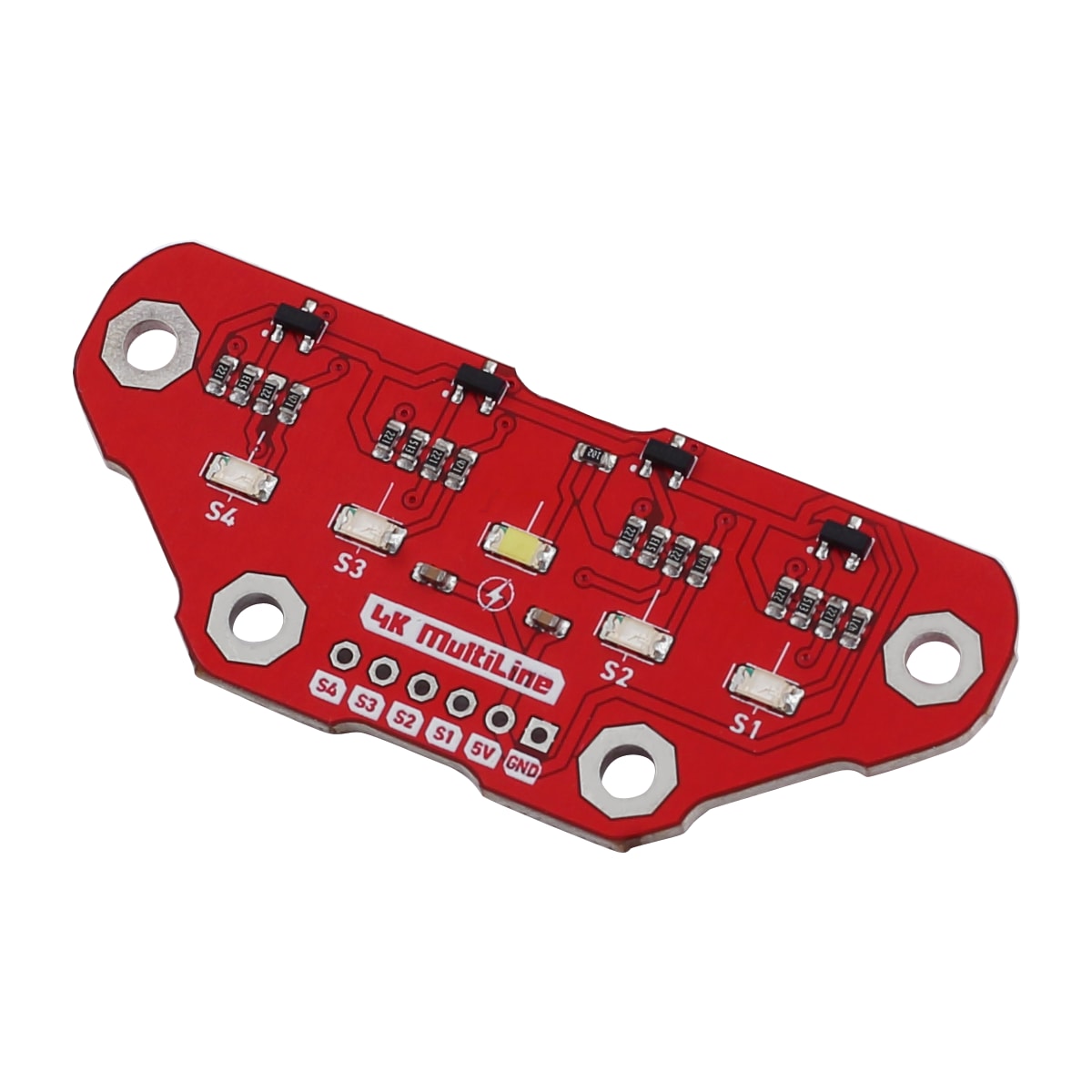

The 4K Multi-Line Infrared Sensor Board has been specially designed and manufactured by our team for line-following robots.
It features 4 optical infrared sensors that you can easily use in your competition line-following robots. It has 4 mounting holes for simple installation compatible with all robot chassis.
Technical Specifications:
- It has 4 output pins and 2 power pins.
- The sensors transmit line data to your processor in analog form through 4 pins.
- It outputs values between 0–100 on white surfaces and 900–1023 on black surfaces.
- It operates on all colors and is compatible with the entire Arduino family.
- Sensor detection distance is between 1mm – 10mm (more precise and stable compared to many sensors).
- It includes 4 blue LEDs that change according to color data and 1 white power LED.
- Operating voltage is between 3.3V – 5V.
- The sensors are protected against reverse voltage and short-circuit conditions.
We use this simple and practical line sensor board in all of our basic robot kits. We strongly recommend this sensor board to all teams that plan to use a line sensor on their robot.
