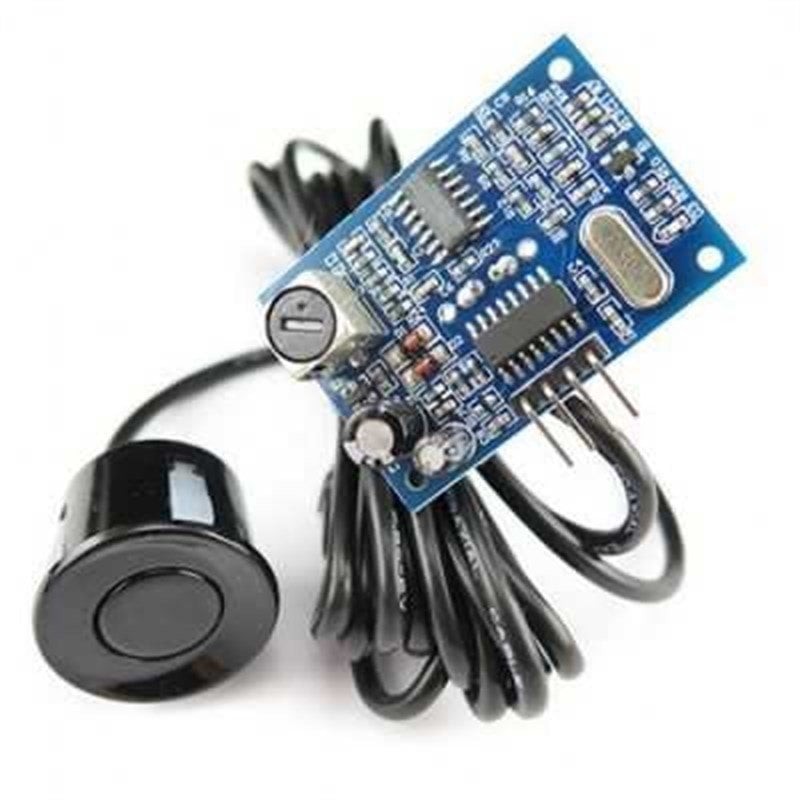

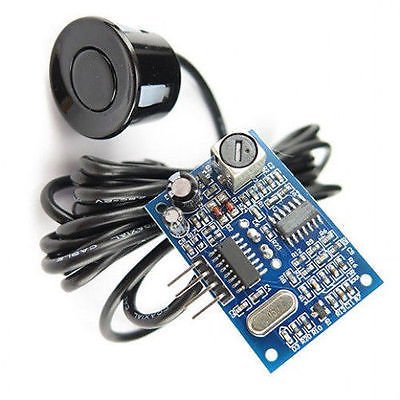

The JSN-SR04T Waterproof Ultrasonic Sensor is a waterproof version of the popular HC-SR04, commonly used in projects such as obstacle avoidance robots. It offers the same interface and usage as the HC-SR04, making it easy to integrate into existing designs.
Thanks to its waterproof probe, it is suitable for outdoor and harsh environment applications.
Technical Specifications:
- Operating Voltage: 5V DC
- Standby Current: 5 mA
- Working Current: 30 mA
- Frequency: 40 kHz
- Maximum Range: 4.5 m
- Minimum Range: 25 cm
- Accuracy: ~0.5 cm
- Detection Angle: <50°
- Operating Temperature: -10°C to +70°C
- Storage Temperature: -20°C to +80°C
Pin Connections:
- VCC: +5V
- Trig: Trigger input
- Echo: Echo output
- GND: Ground
