Developed with Robotzade’s pioneering approach to compact sensor technologies, the RZ100 stands out with its compact structure, adjustable detection range, and advanced sensing capability!

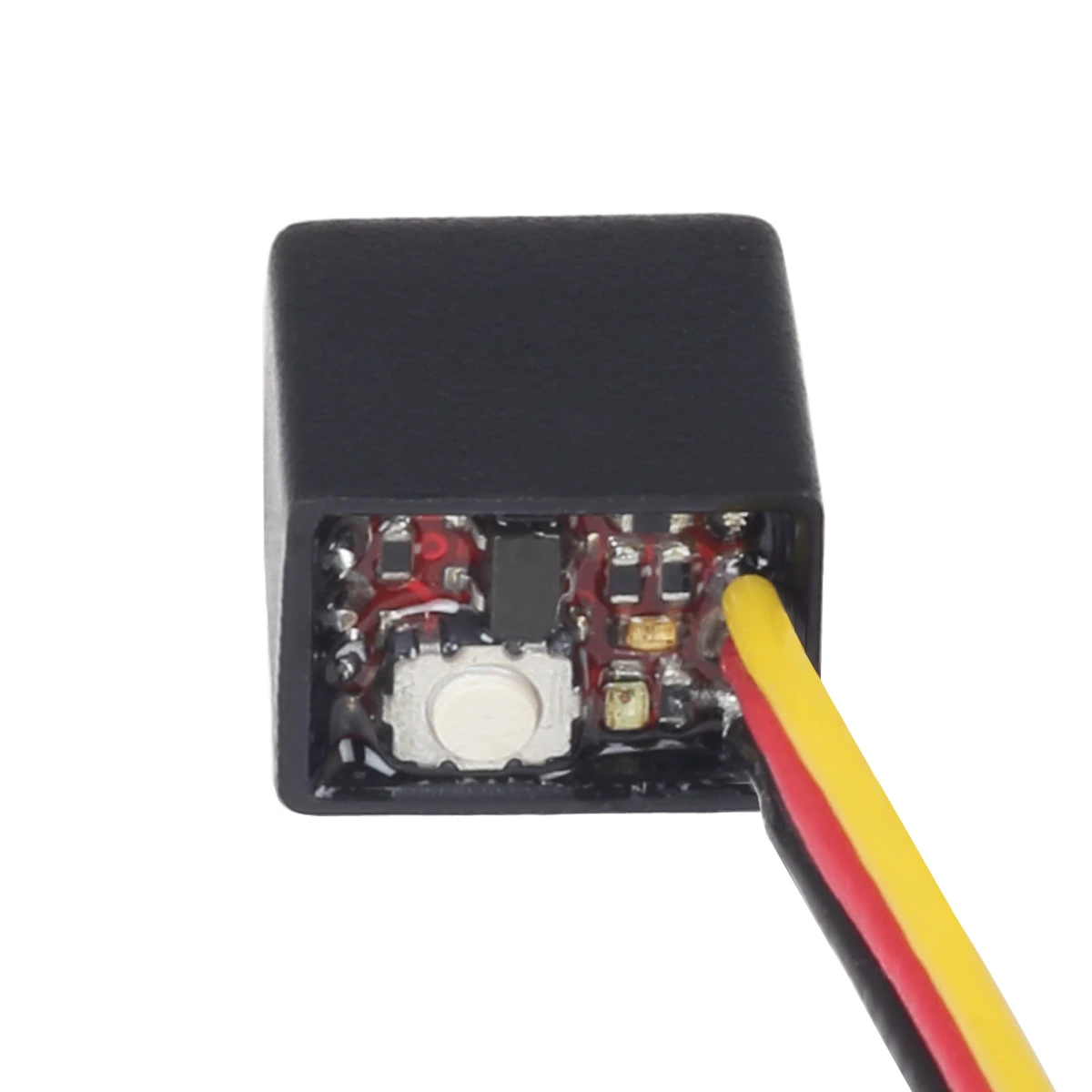

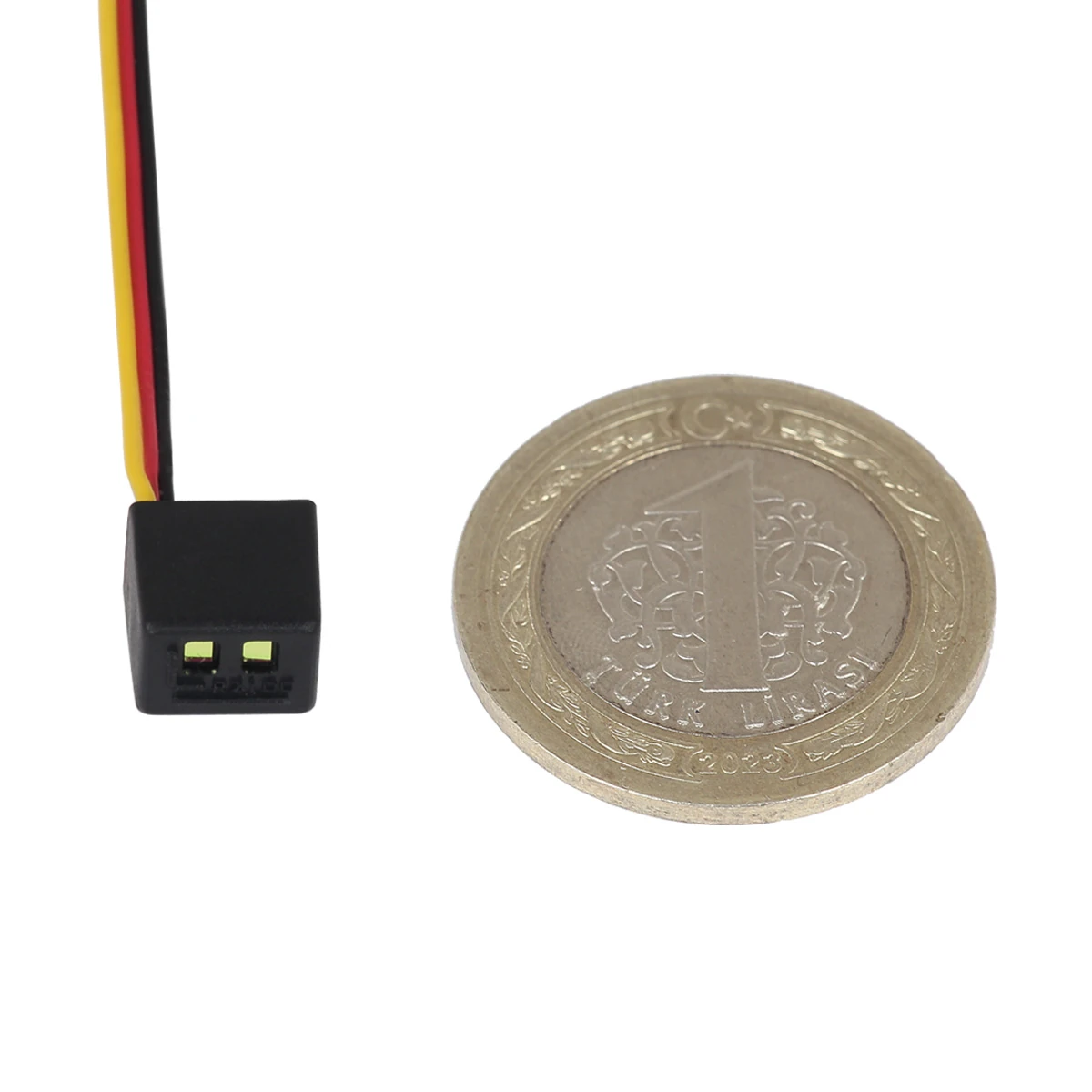

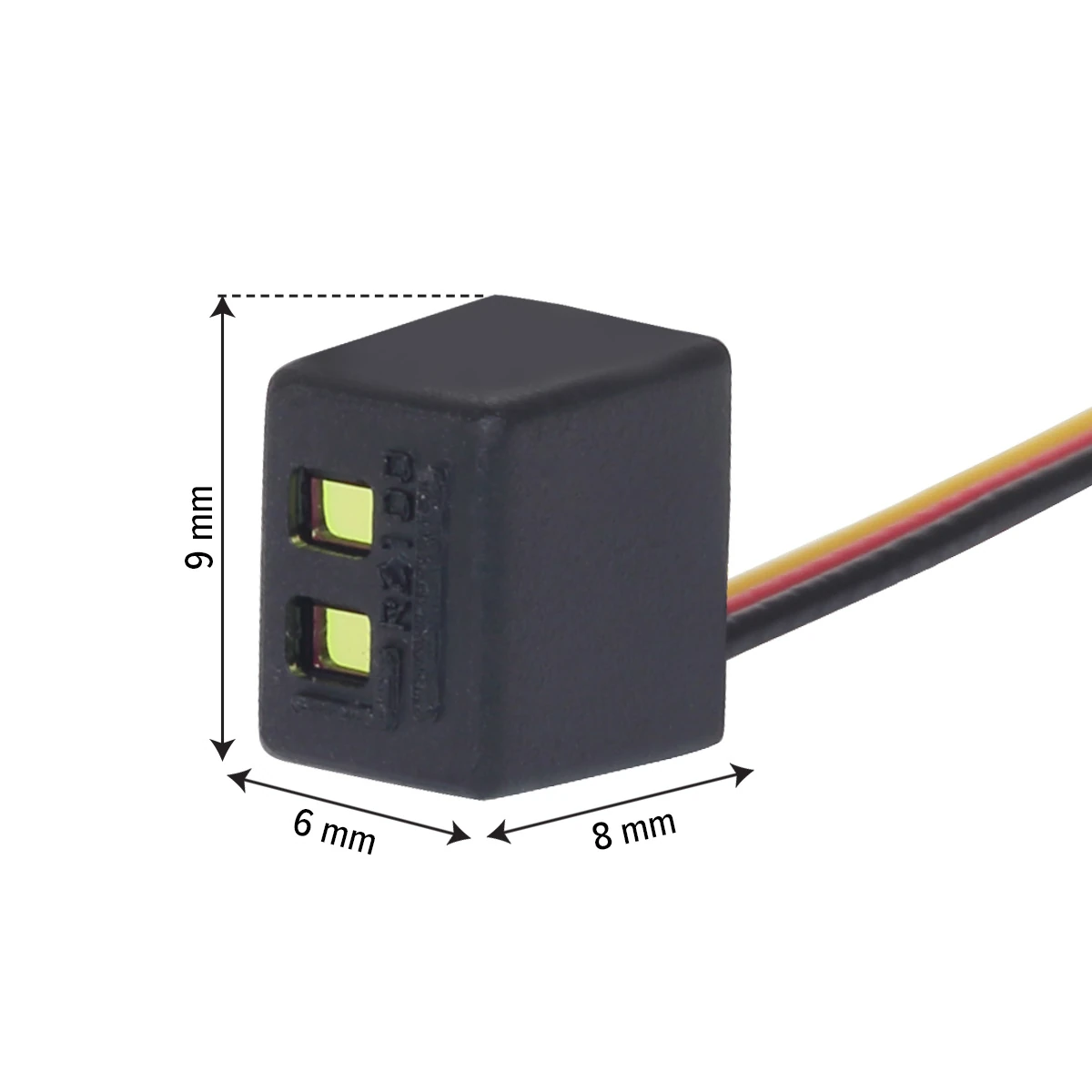

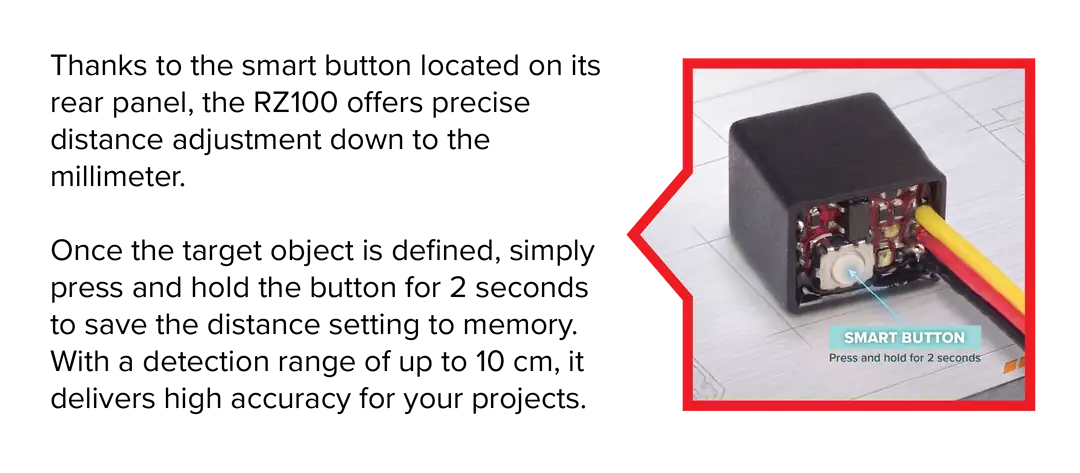

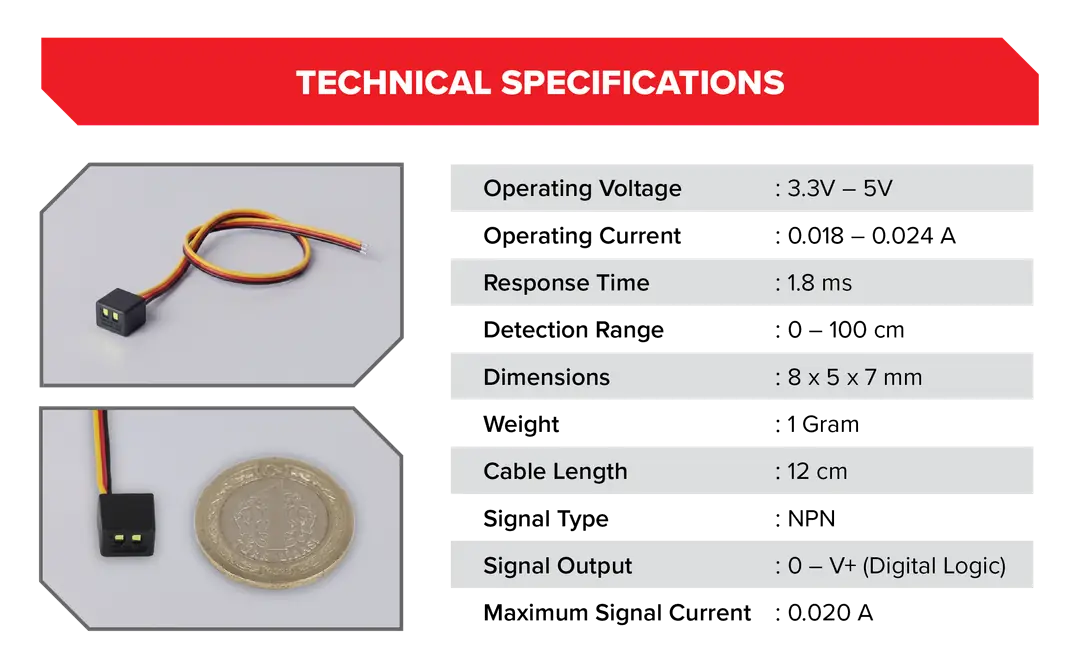

In addition, when there is no object positioned in front of the sensor, the calibration process can be repeated, allowing the limited detection distance to be easily reset to the default maximum viewing range of 100 cm. The compact design, specially developed for mini and micro sumo robots, is combined with unmatched object detection performance. Lightweight, fast, and stable — engineered to make a di erence in your projects. This technology intelligently compensates for di erences in light absorption and reflection, reducing detection deviations on black and white surfaces to a minimum level of just 2 cm. By successfully balancing variations caused by angled surfaces, it delivers stable performance even under the most challenging conditions. Supporting both 3.3V and 5V operating voltages directly, the RZ100 integrates seamlessly into your system without the need for an additional converter. Thanks to its direct digital logic signal output, it communicates flawlessly with microcontrollers while minimizing processing load in your projects. The blue status LED integrated into the rear panel allows you to monitor the operating process instantly. Activating immediately upon detection, this blue indicator provides clear visual feedback for easier system control.
