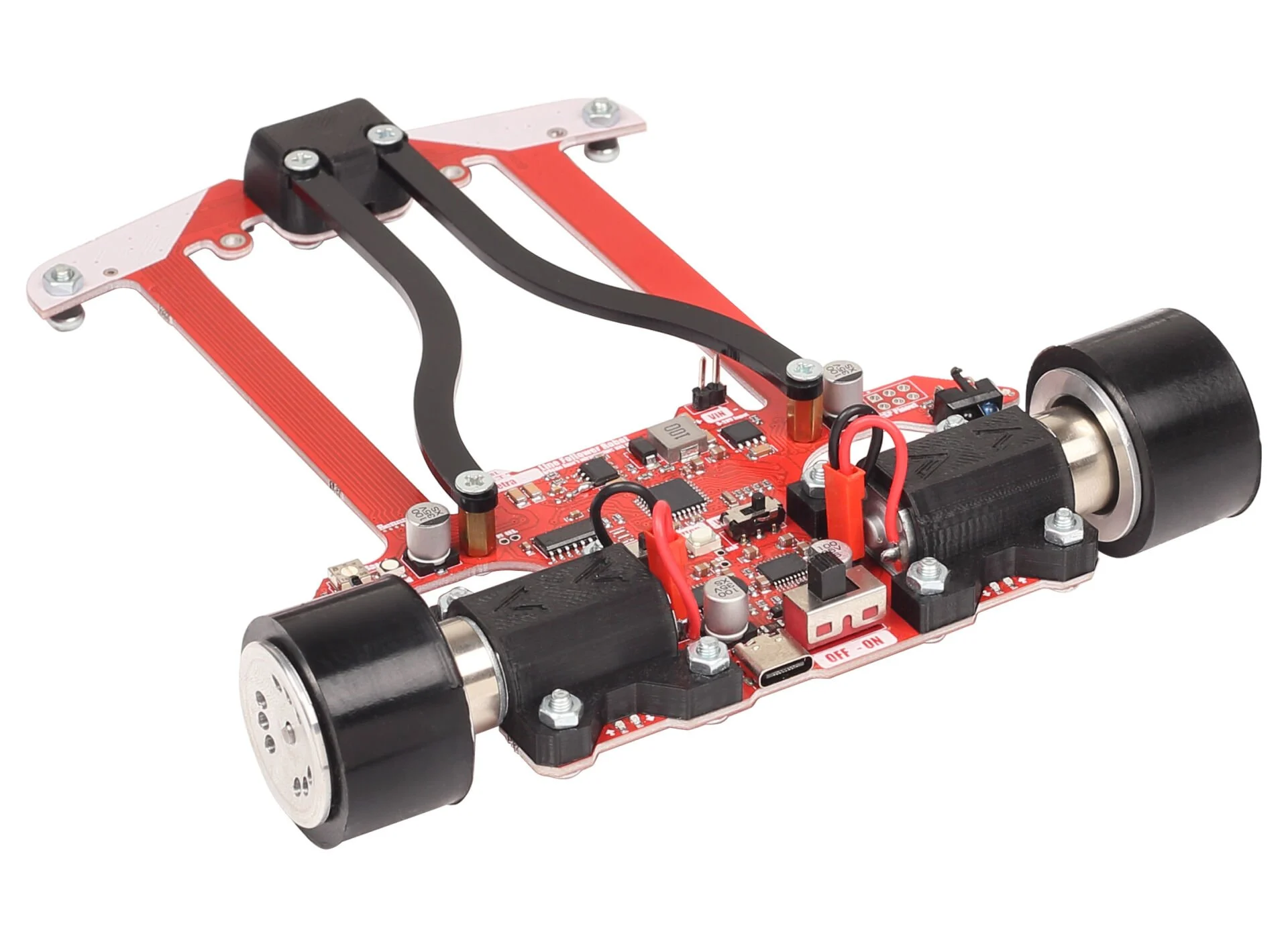

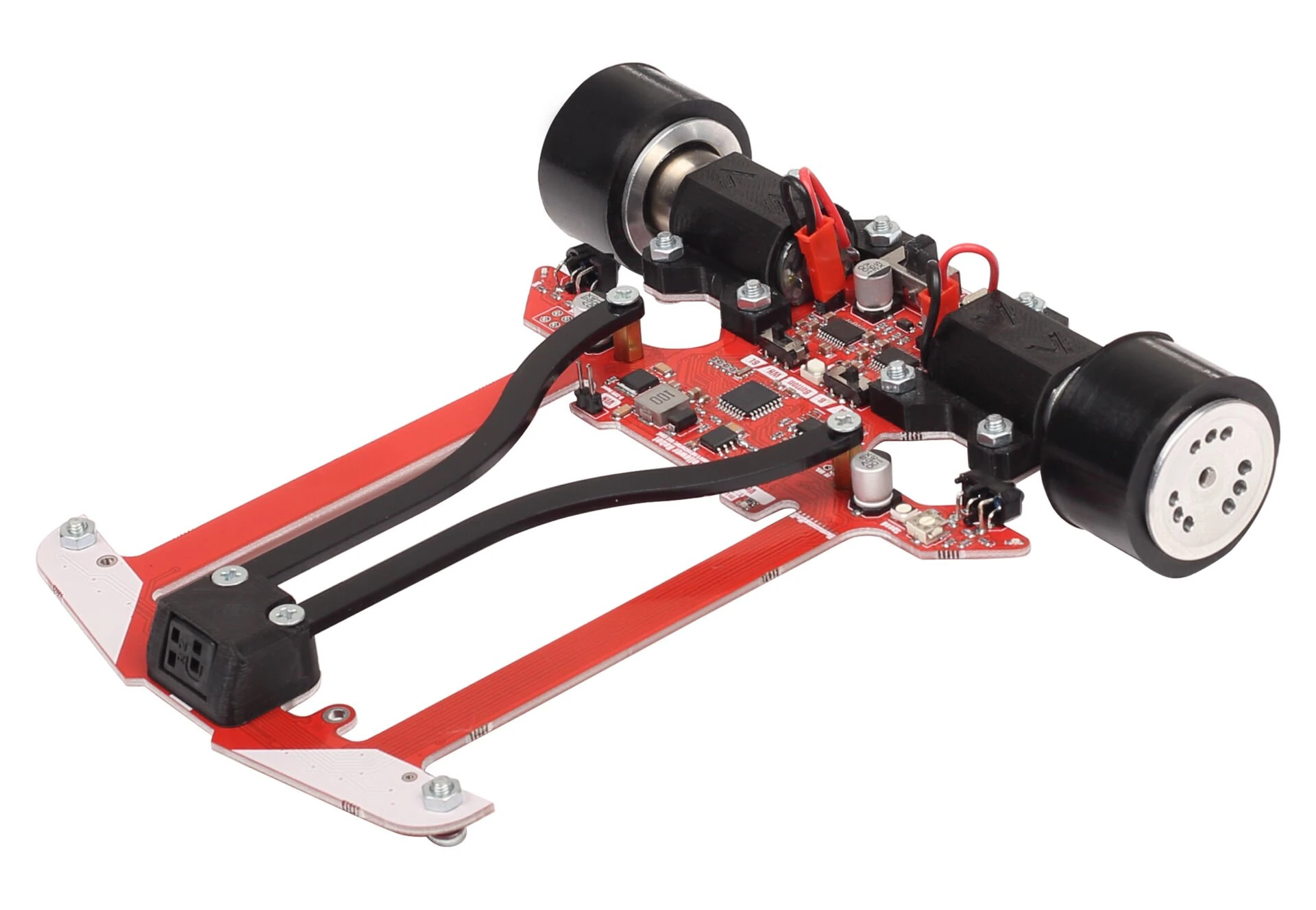

Vetra - A New Generation Fast Line Follower Robot with Professional Design!


The Vetra Advanced Fast Line Follower Kit is a professional robot kit specially developed for competitions, featuring a powerful Arduino-based infrastructure. Equipped with 10 line sensors, the robot delivers highly precise line tracking, making it stand out from the competition.

Thanks to its modern Type-C programming port and reliable processor connections, it offers users an easy, fast, and secure competition experience.

Designed to be 100% compliant with robot competition regulations, Vetra distinguishes itself on the track with a powerful motor drive system supported by high-current MOSFETs.

Motor drivers providing 6A continuous current per channel and 8A peak current ensure superior stability in sharp turns, strong acceleration, and effective braking.

Encoder-compatible TCRT5000 sensors simplify lap counting and speed control, while the speed trimpot and track color selection switch provide full compatibility across different surfaces.

Additionally, the 10-element QRE1113 sensor array enables high-resolution line tracking, creating a real competitive advantage in races.

With open-source Arduino software support, users can apply personal adjustments on the track, optimize turns, and program the robot with ease.

Moreover, Vetra is shipped fully assembled and ready to use - read for competitions straight out of the box !



Specially Designed for Competitions


  • Encoder support → Lap counting and acceleration control
  • Track color selection switch → Smooth operation on different surfaces
  • Speed trimpot → Manuel speed adjustment
  • 10-element QRE1113 sensor array → High-precision line tracking
  • Wide voltage range and powerful motor options → Maximum efficiency
  • Fully assembled design → Plug-and-play convenience


Hardware Specifications
  • Motor Drivers: 6A continuous current and 8A peak current support per channel
  • RZ60 Object Sensor: Integrated into the chassis with a special Halo design
  • RGB LED System: Real-time visual feedback
  • User Button: Optimized startup control
  • A–B Selection Switch: Track configuration adjustment
  • Force-Up Motor Options: 12V 5000 RPM for high speed and torque performance
  • Bond Silicone Wheels: Maximum grip and stability
  • 10-element QRE1113 Sensor Array: High-resolution line tracking
  • TCRT5000 Sensors: Encoder accessory support
  • Speed Adjustment Trimpot: Manual track speed control
  • Arduino Support: Easy programming with open-source software
  • Reverse Polarity Protected Power Line: Reliable and long-lasting operation
  • Operating Voltage Range: 6V–35V
  • Dimensions: 140 × 170 × 30 mm (Suitable for competitions)
  • Weight: ~220 g (excluding battery)

A Force-Up 11.1V 500mAh LiPo battery is included with the robot set.

It will provide optimal performance throughout competitions.


Why Vetra?
  • 100% compliant with professional competition rules
  • Exceptional performance with a powerful MOSFET-based motor drive system
  • High precision line tracking with 10 sensors
  • Easy programming with Arduino support
  • Fully assembled, plus-and-play easy of use
