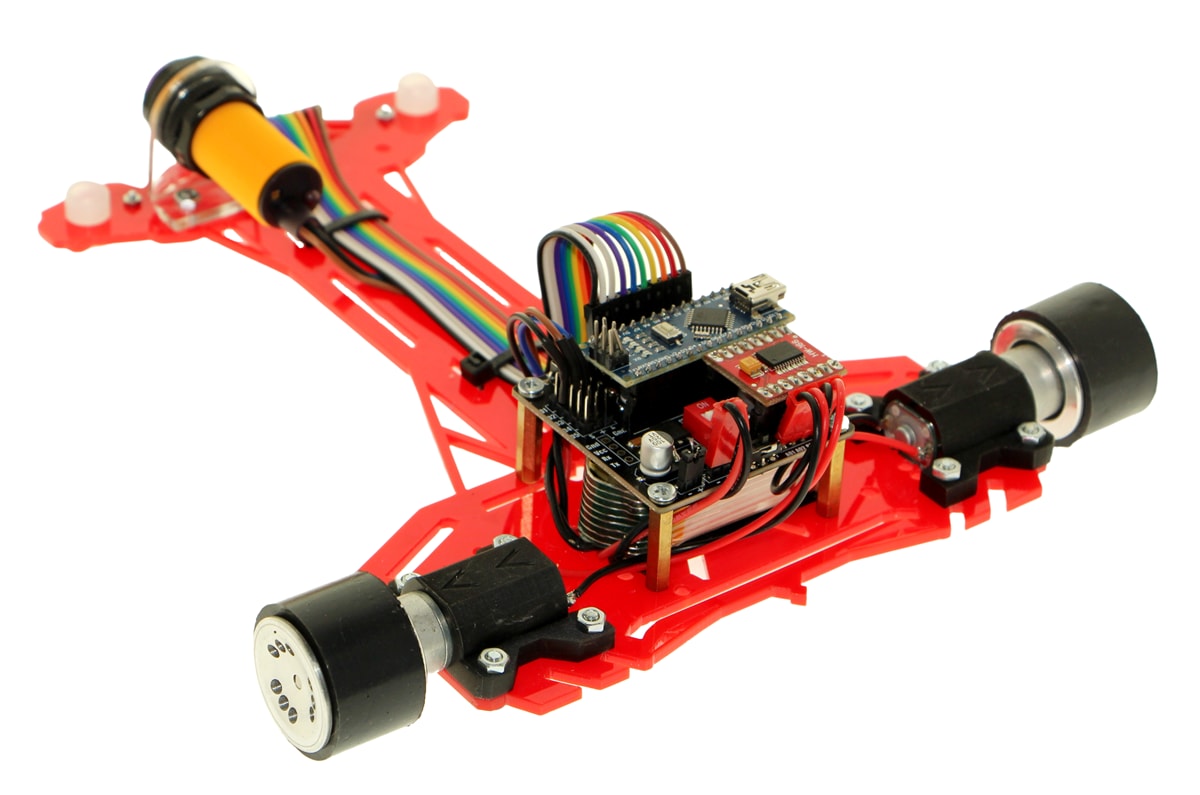

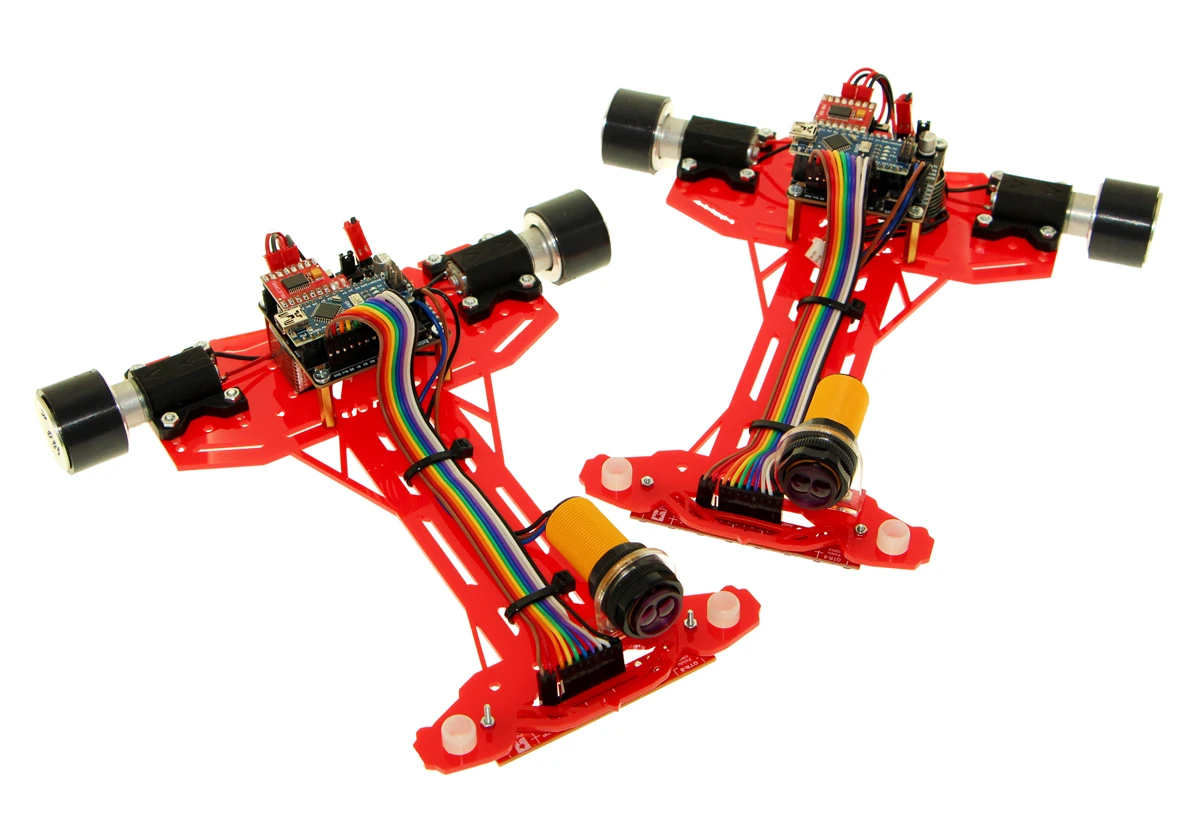

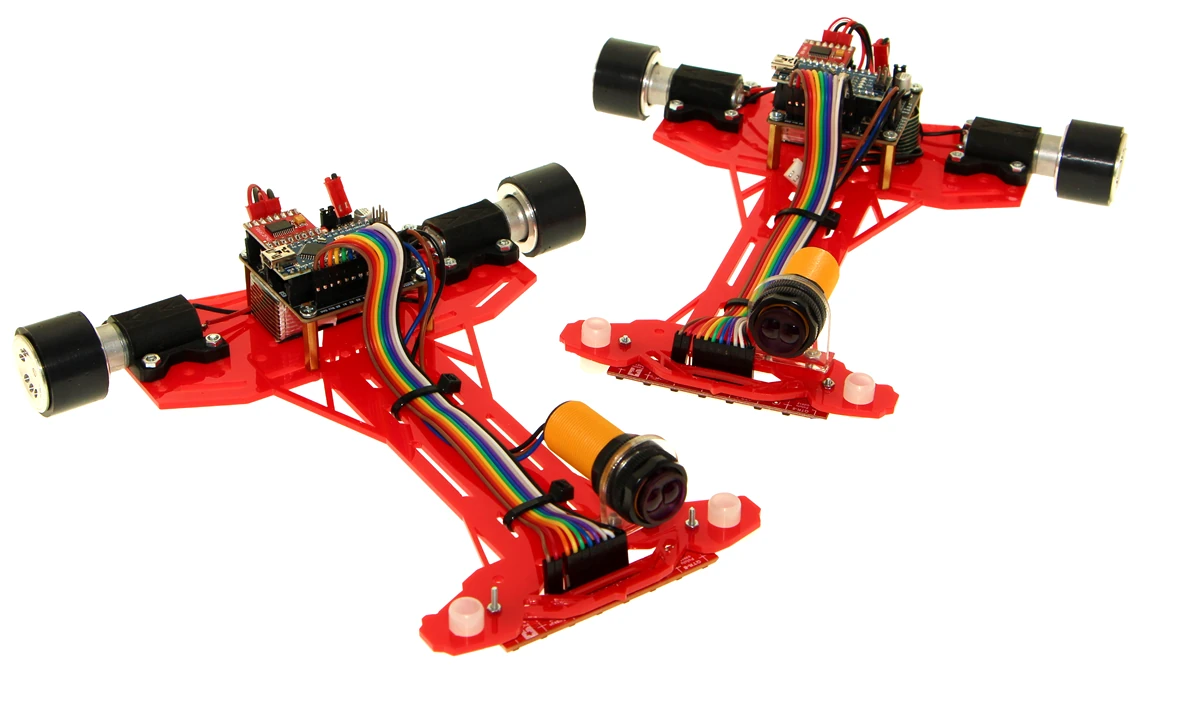

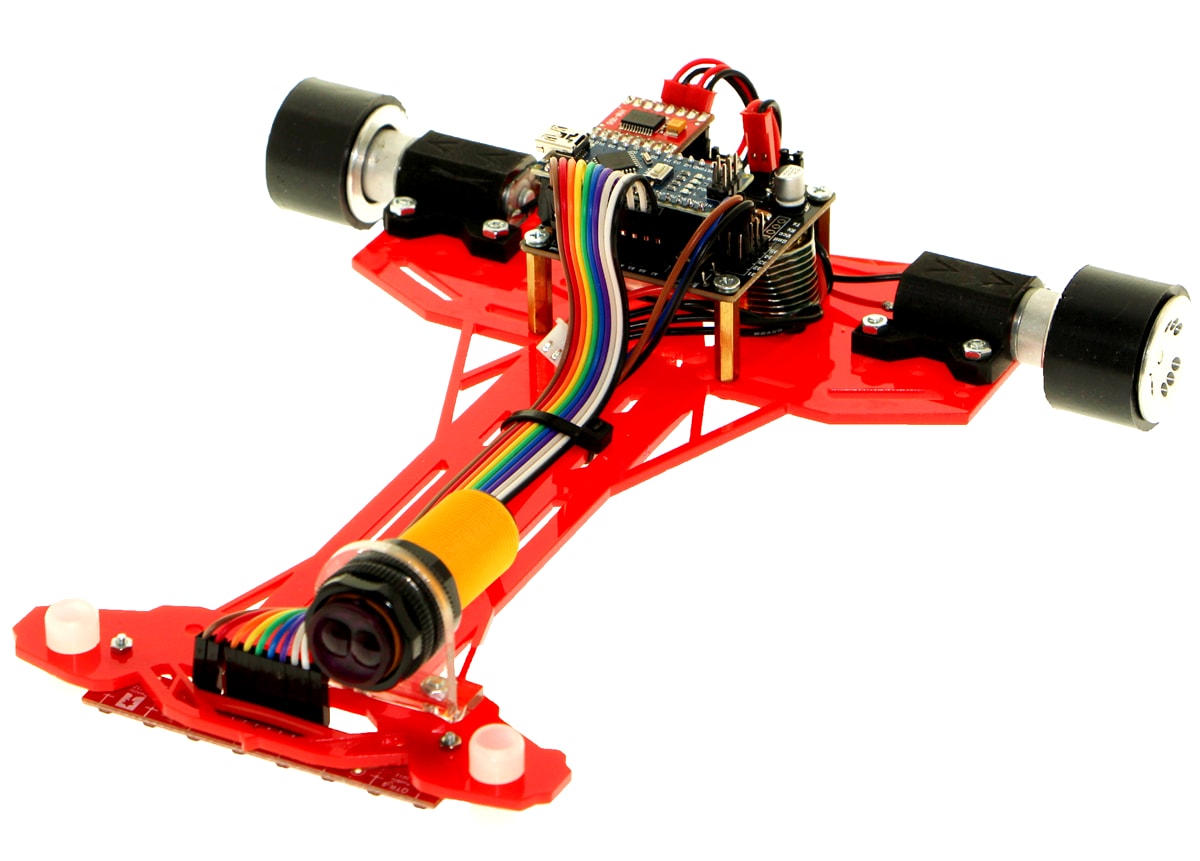

Meet the Renewed New Version Rapid V2 Arduino Fast Line Follower Robot Kit!


It is an indispensable robot kit for all robot competitions, project assignments, robotics, and Arduino education.


It is the robot kit that won 1st place for Turkey at Robotex International 2022 Antalya, the world’s largest robotics festival!


It is suitable for national and international robot competitions. Everyone who purchases our kit will be provided free PID-programmed software that allows participation in competitions.


The product’s assembly guide and required installation programs are sent to you via email. (Assembly takes approximately 50 minutes.) It is specially manufactured for robot competitions.

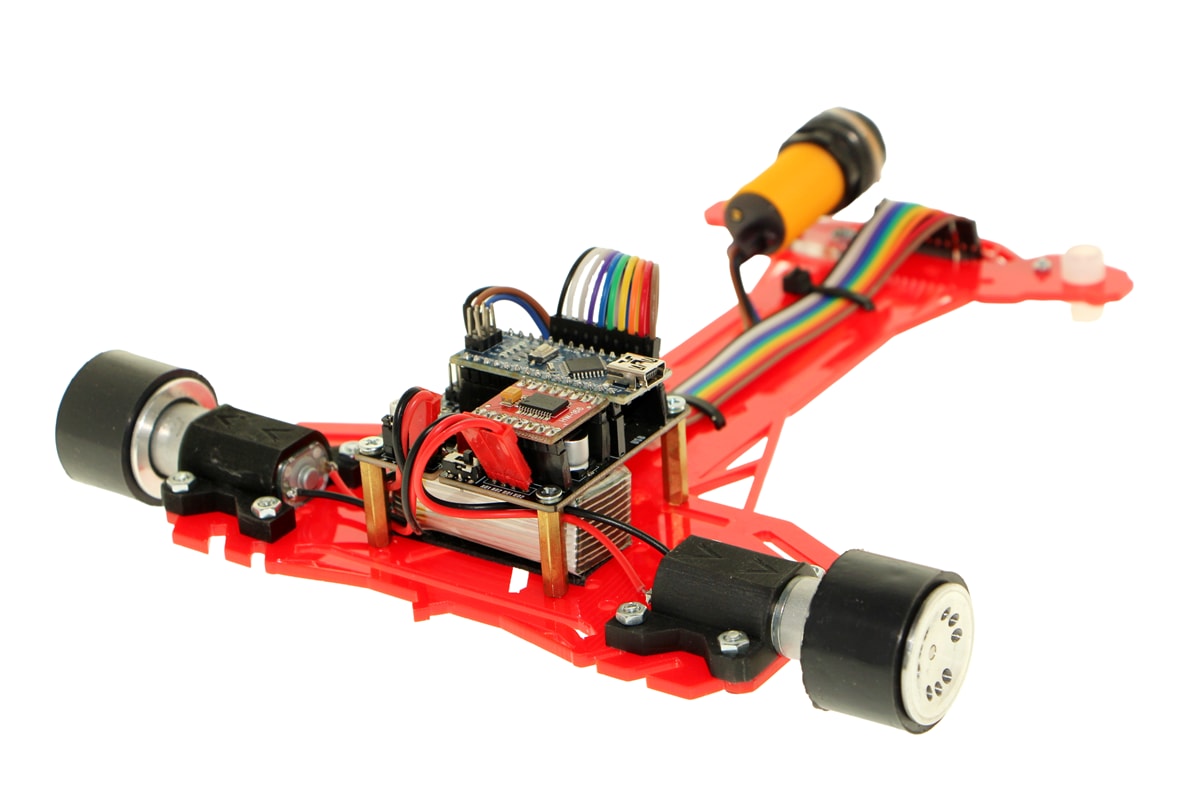

In order to keep the center of gravity—an important factor in line follower robots—close to the ground, and to prevent the front from lifting during sudden movements while allowing easier climbing of ramps in competitions, the robot’s motors and battery are specially positioned at the very rear of the chassis. Thanks to this design, your robot’s road grip will be much more stable.


With the dual DIP switches located on the robot board, you can select the track on the course during competitions, send track information to the robot before operation, and instantly choose the desired software. With this feature, you will be one step ahead of other line follower robots!


By purchasing a Bluetooth module for the Rapid V2 Arduino Line Follower Robot Kit, you can revise the programming section and control the robot via your phone or tablet. Additionally, you can remotely intervene in your robot and instantly adjust values such as maximum speed, average speed, PID parameters, and more—eliminating the hassle of connecting your robot to a computer every time and enabling faster improvements during the programming phase.




General Features of the Components Included in the Kit:

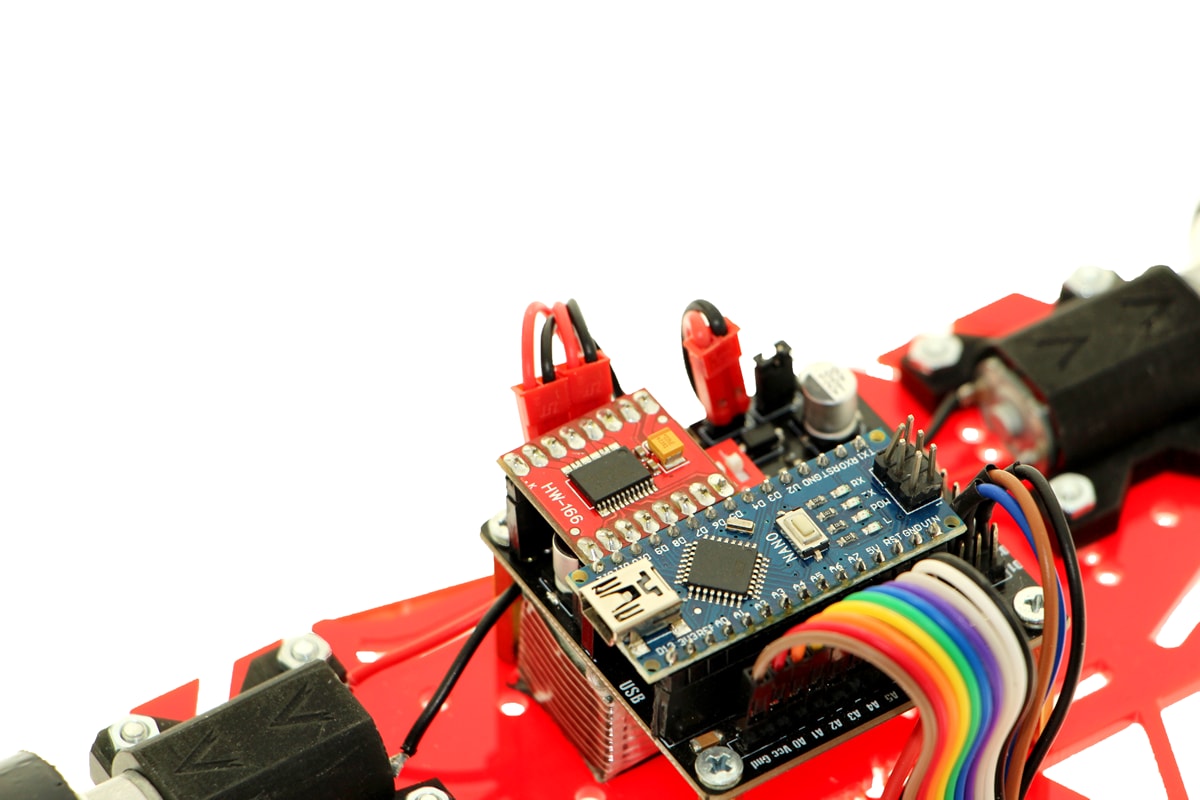

Rapid Line Follower Control Board:
An extremely practical line follower robot board based on the Arduino Nano, designed to accommodate a motor driver. With the dual DIP switches located on the control board, you can select the track during competitions and send track information to the robot before operation.


Arduino Nano:

The latest version of Arduino development boards. It features 14 digital I/O pins (6 of which support PWM). The robot’s software is stored and runs on this board.


TB6612FNG Dual Motor Driver Circuit:

Using the Toshiba TB6612FNG motor driver, it can control two DC motors with 1.2A continuous current and up to 3.2A peak current. You can independently control the direction and speed of two DC motors. When combined with an Arduino, it provides an excellent platform for projects such as line follower robots, RC vehicles, mobile, or autonomous robots.

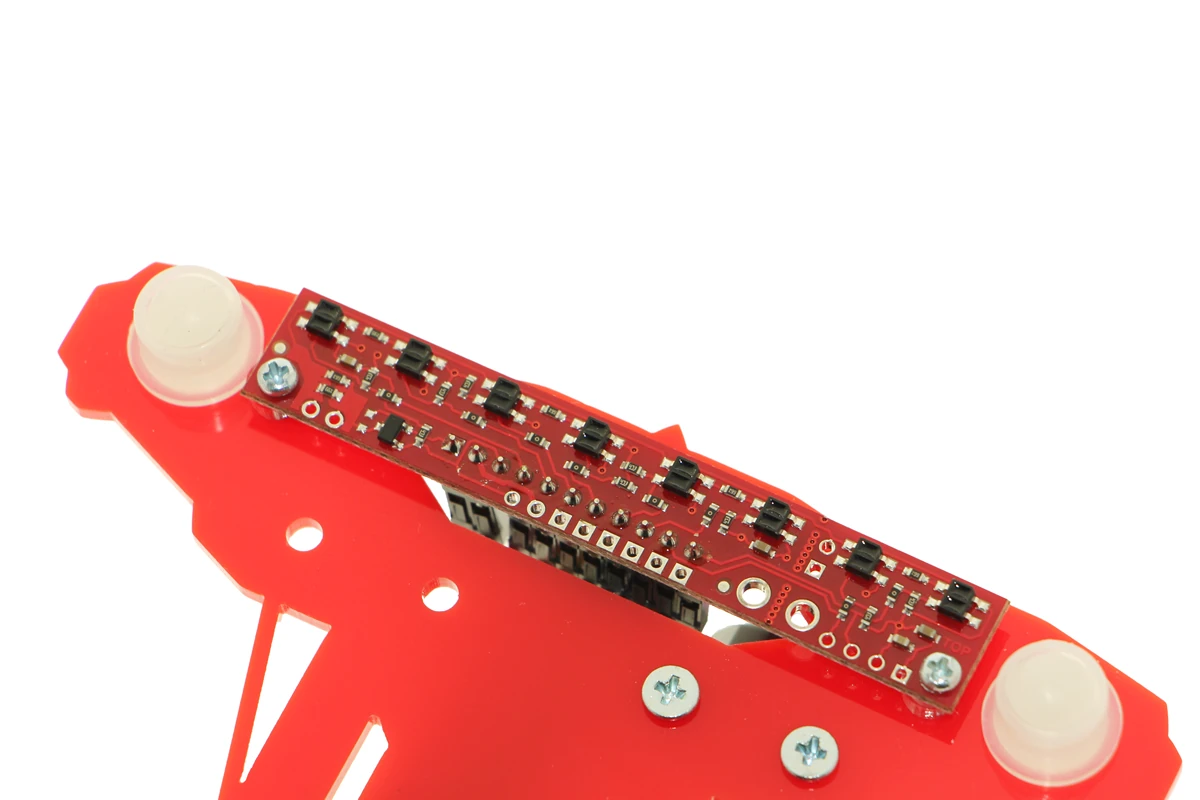

QTR-8A Infrared Sensor:

Originally designed for line follower robots, this sensor board contains 8 IR LED/phototransistor pairs spaced 1 cm apart. Due to its stable and reliable performance, it is widely preferred in robotic applications. To avoid disappointment in competitions, we strongly recommend not using non-original QTR sensors.


12V 2500 RPM Force-Up DC Motor:

Our robot kit uses geared motors with a speed of 2500 RPM. These high-quality motors are the preferred choice of award-winning competition robots. With these motors, you can develop powerful and competitive projects. We do not recommend participating in competitions with lower-speed motors.


BOND Silicone Wheels:

For wheels, we have chosen locally manufactured silicone wheels that have been used by many teams in line follower robot projects for years. Thanks to their excellent grip, your robot will move along the track without slipping or skidding.


You can purchase our robot kit either disassembled or fully assembled. Along with the kit, PID-programmed competition software is provided free of charge. By further developing this software, you can achieve even greater success. Software matching the speed and quality of the robot shown in the video at the bottom of the page will be provided.


Rapid Arduino Line Follower Robot Kit – Parts List:

  • 1 × Rapid Line Follower Robot Control Board (Arduino Nano + TB6612FNG included)
  • 1 × MZ80 Object Sensor – 80 cm Range Infrared Sensor
  • 2 × 12V 2500 RPM Force-Up DC Motor (Turkey’s Highest Quality Line Follower Motors)
  • 1 × QTR-8A Infrared Sensor – Analog
  • 2 × Bond Silicone Wheel Sets
  • 2 × 16 mm Motor Mount Brackets (Custom Made)
  • 2 × Plastic Caster Wheels
  • 1 × Rapid Line Follower Robot Chassis
  • 1 × 7.4V / 11.1V LiPo Battery (300–500 mAh)
  • 1 × Cable Set
  • 1 × Consumables Set (Nuts, Bolts, etc. for Assembly)

All spare parts of the robot kit are continuously available in our stock. We guarantee that we will always support you with our technical support team both before and after the sale.
