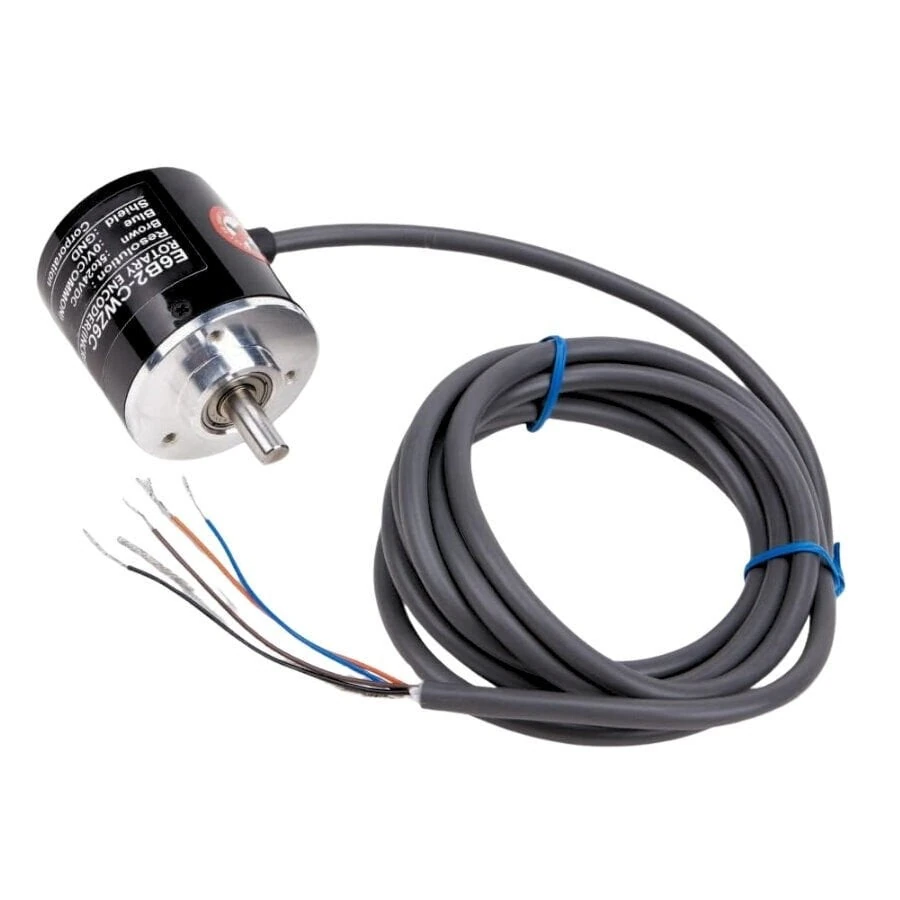

The E6B2-CWZ6C 5–24V 1000 Pulse Rotary Encoder is an industrial-grade incremental rotary encoder with a 40 mm diameter. This model features high-resolution options, a robust mechanical design, a wide supply voltage range, and stable output signals, making it suitable for a variety of applications—from servo systems and CNC machines to conveyors and automation lines. It includes A/B phases plus a Z (index) signal, enabling both direction and position tracking.

Applications:
  • Position feedback for CNC machines, milling machines, and lathes
  • Encoder feedback in servo motor systems
  • Speed and position control in conveyor systems
  • Phase/rotation monitoring in industrial automation lines
  • Robotic arms, axis control systems, and high-performance machinery

Technical Specifications:
  • Pulses: 1000
  • Supply Voltage: 5–24V DC
  • Current Consumption: 0.6 W max. (80 mA max.)
  • Output Phases: A, B, and Z
  • Output Configuration: NPN
  • Maximum Response Frequency: 100 kHz
  • Starting Torque: 0.98 mN·m max.
  • Maximum Speed: 6000 RPM
  • Insulation Resistance: 20 MΩ
  • Dielectric Strength: 5000 VAC, 50/60 Hz
  • Protection Rating: IP50
