Incremental Optical Rotary Encoder 5–24V DC 360 Pulses - E38S6G5
0 Comment
SKU:
Stock:
$ 13.00
More:Magnetic & Encoder

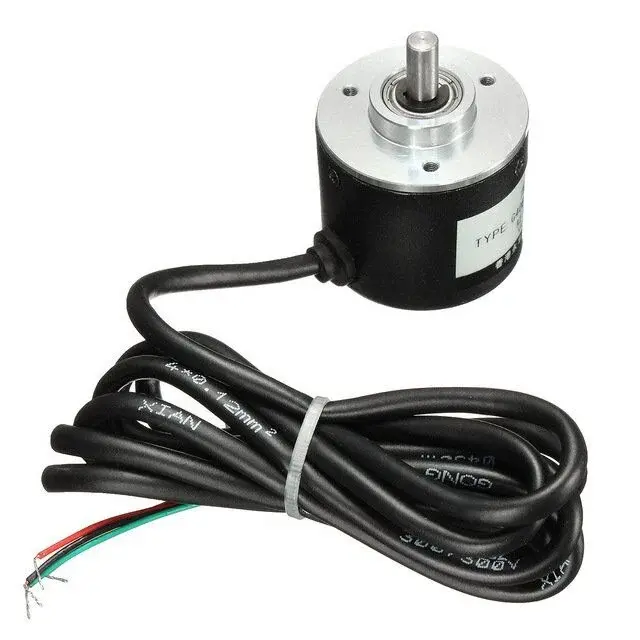

The Incremental Optical Rotary Encoder (Encoder) is an electromechanical sensor that detects the rotational movement of a shaft and converts it into an electrical signal. It is used to measure the position, rotation direction, and speed of motors with high accuracy. Using magnetic, mechanical, and especially optical detection technologies, it converts motion data into digital electrical signals for control systems.
Optical encoders detect light interruptions on a rotating disk using the built-in light source and sensors, producing pulses. This provides high precision and fast response, making them reliable for applications requiring accurate feedback.
This model features a 360 pulses per revolution (PPR) resolution and AB two-phase output, allowing easy analysis of rotation direction and speed. It is compatible with PLCs, microcontrollers, and automation systems.
Applications:
- Industrial automation systems
- CNC machines
- Robotic applications
- Motor control systems
- Medical devices
- Projects requiring precise position and speed control
Technical Specifications:
- Part Number: E38S6G5-360B-G24N
- Encoder Type: Incremental Optical Rotary Encoder
- Resolution: 360 pulses/revolution (PPR)
- Supply Voltage: DC 5–24V
- Output Type: AB two-phase quadrature pulse output
- Output Circuit: NPN open collector
- Maximum Mechanical Speed: 5000 RPM
- Response Frequency: 0 – 20 kHz
- Shaft Size: 6 × 13 mm
- Body Size: 38 × 35.5 mm
- Cable Length: 1.5 meters
Connection Pins:
- Green: Phase A
- White: Phase B
- Red: VCC (+ Supply)
- Black: GND
⚠ Warning: Do not connect the AB two-phase output directly to VCC, as this may damage the output transistor.
