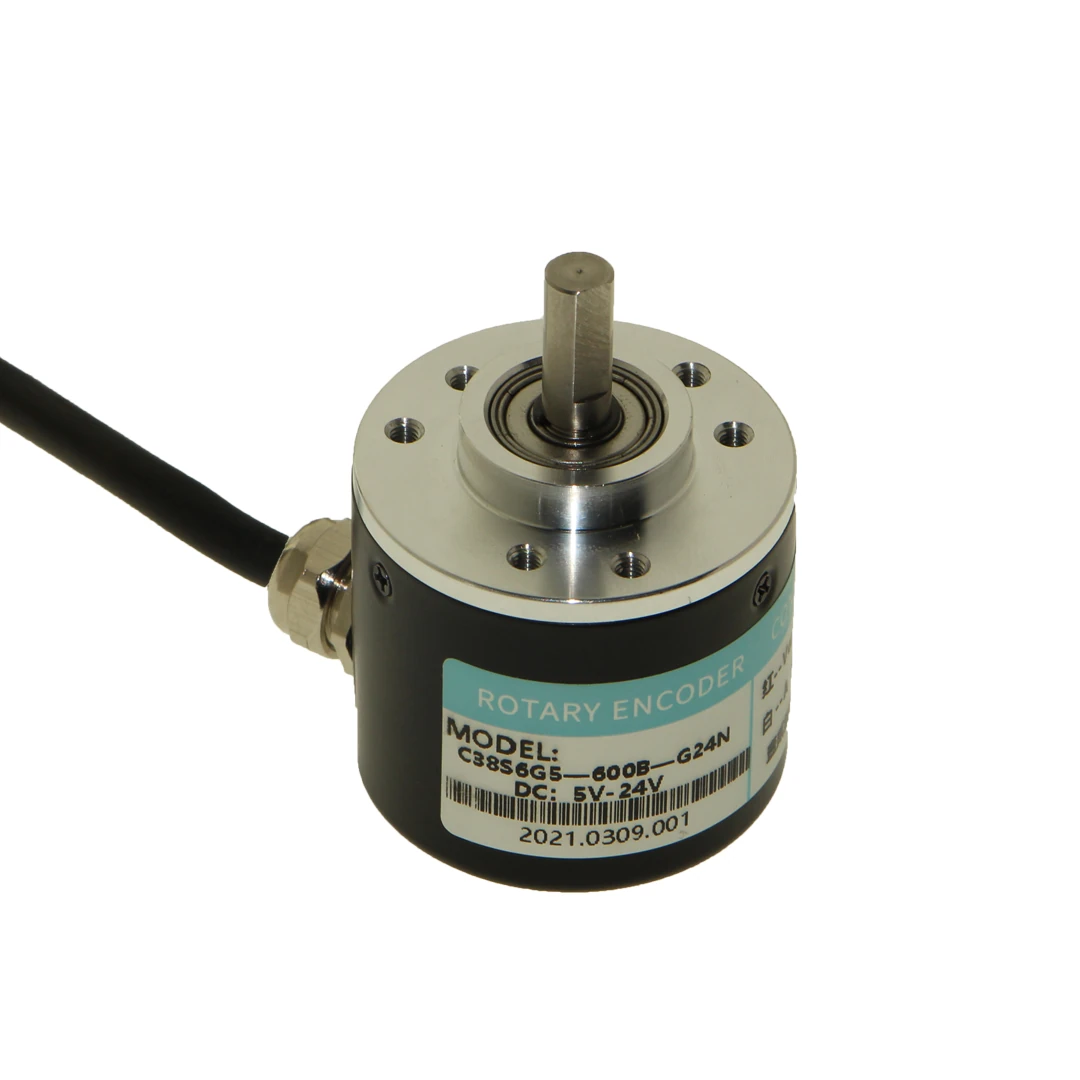

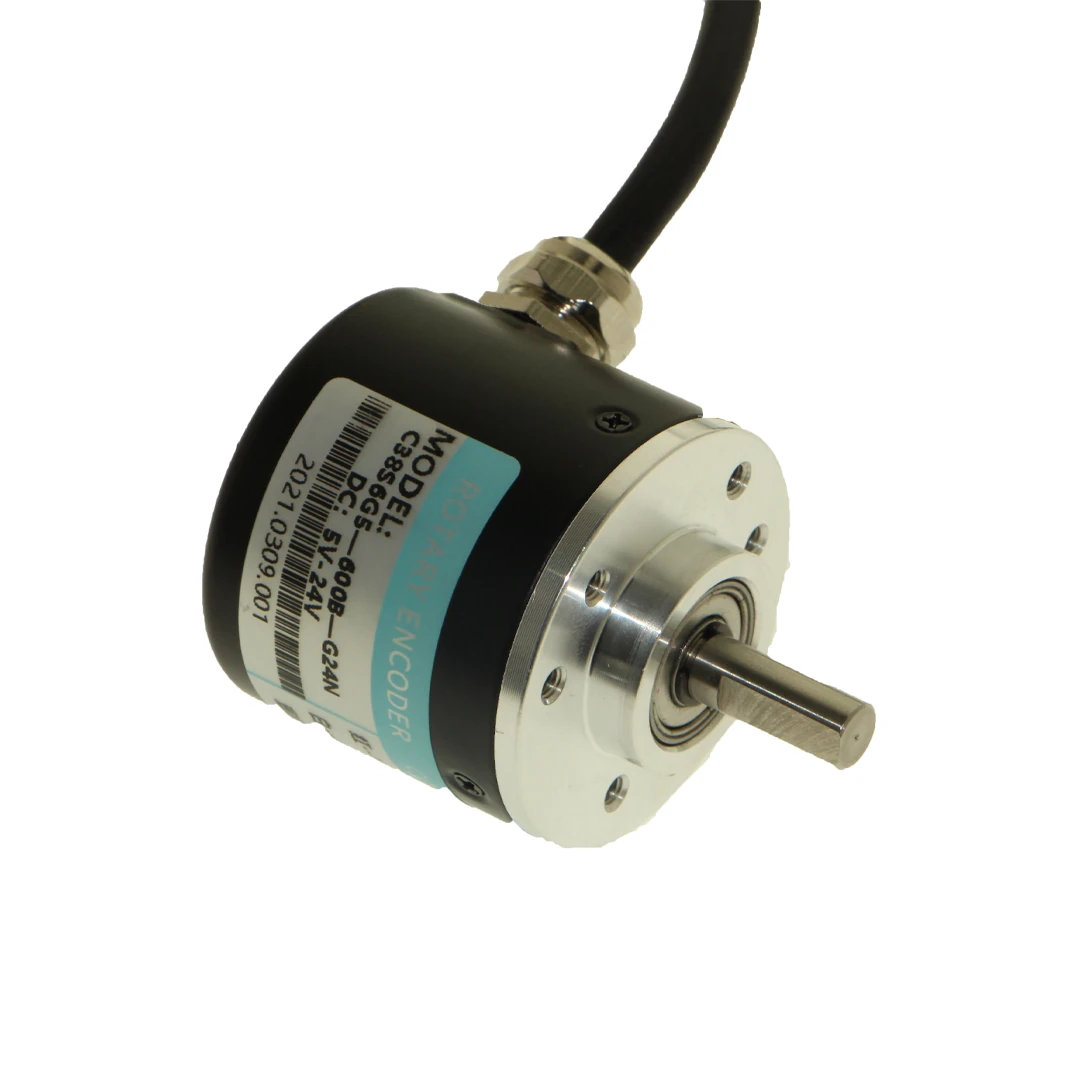

Rotary Encoder 5–24V 600 Pulse C38S6G5-600B-G24N
0 Comment
SKU:
Stock:
$ 14.00
More:Magnetic & Encoder
This rotary encoder is part of a series that can provide selectable pulses per 360° (50, 100, 200, 300, 360, 400, 600 pulses). It is capable of detecting rotation direction. It normally operates at 2000 RPM, with a short-term maximum speed of 6000 RPM.

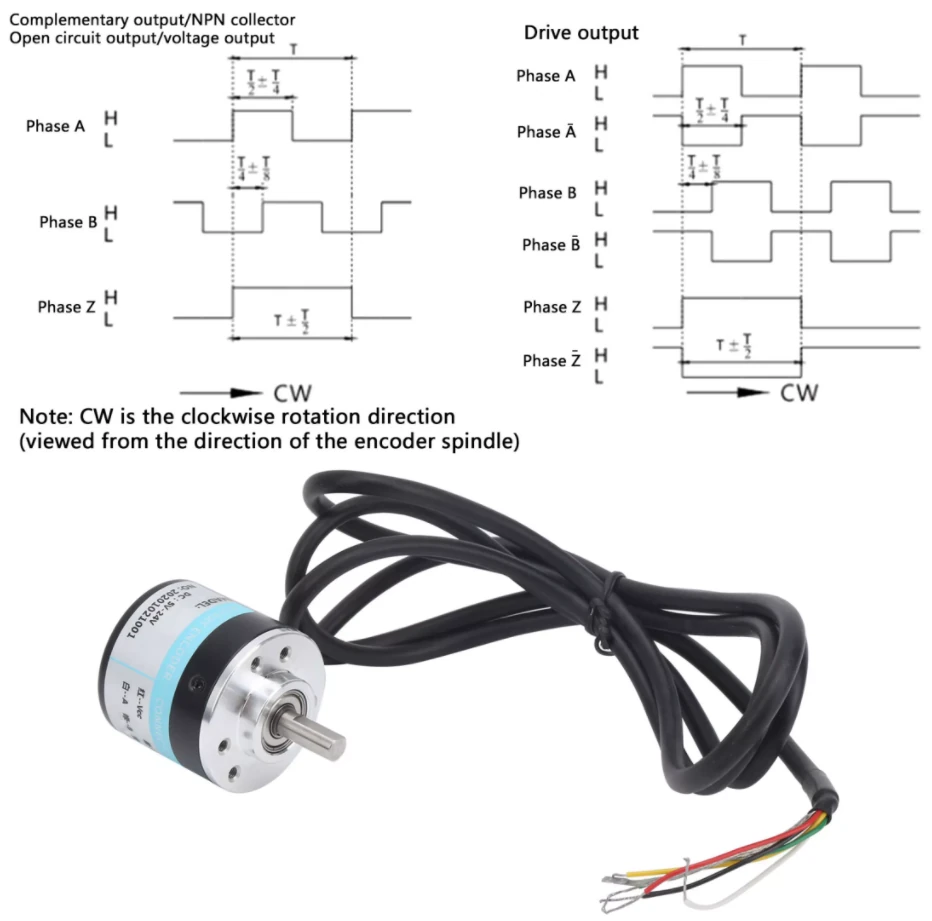

It has been successfully used in simulator steering systems, textile machines, and many other projects. The encoder features AB two-phase output, and pulse counting is achieved via a rotating slotted disk and an optocoupler.
Specifications:
- Pulses: Selectable per 360°: 50 / 100 / 200 / 300 / 360 / 400 / 600
- Continuous Rotation: Yes

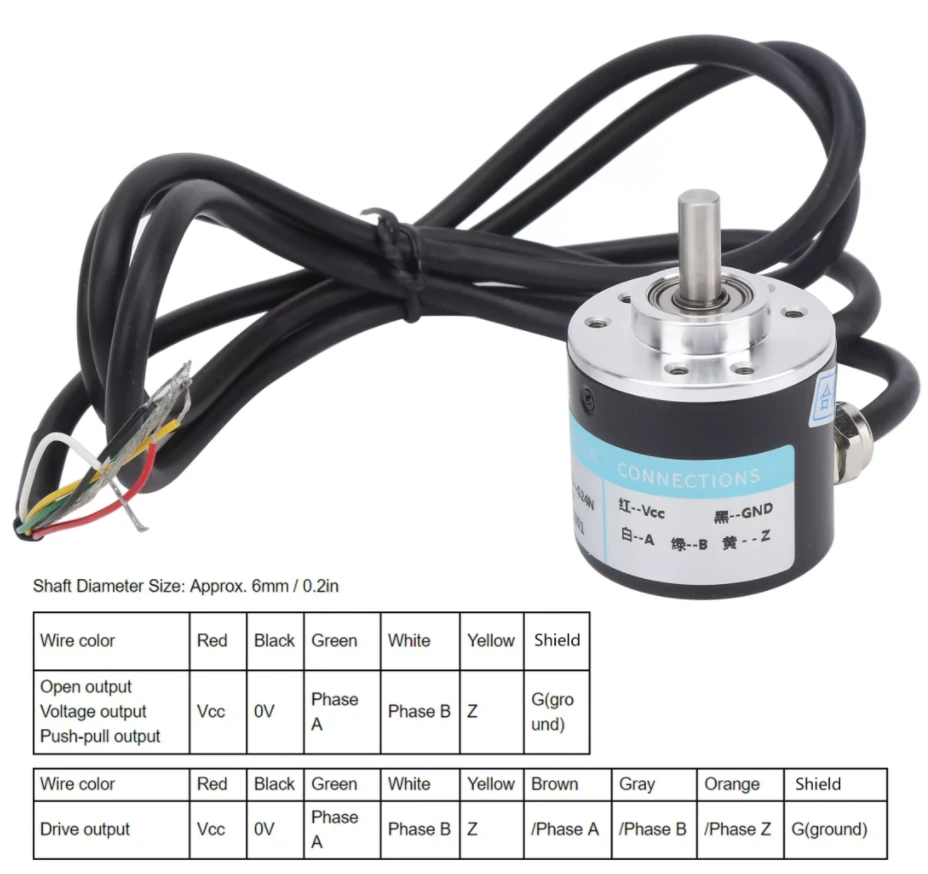

- Output: NPN open collector output
- Supply Voltage: DC 5–12V (can also operate with 12–24V)
- Response Frequency: 0–100 kHz
- Current Consumption: 30 mA
- Mounting: Standard M3 screws
- Body Dimensions: 39 × 6 × 13 mm / 35.5 mm
- Shaft Diameter: 6 mm
