This motor is a member of Pololu High-Power Series. This micro gear motor can bes used at your projects with it's high power feature.

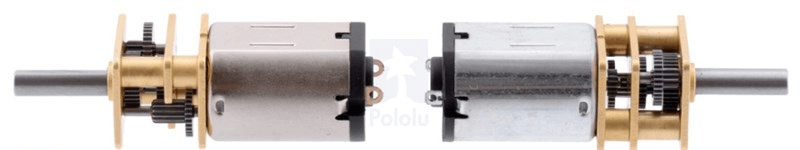

This gearmotor is a miniature high-power, 6 V brushed DC motor with a 75.81:1 metal gearbox. It has a cross section of 10 × 12 mm, and the D-shaped gearbox output shaft is 9 mm long and 3 mm in diameter.
Key specs at 6 V: 400 RPM and 120 mA with no load, 22 oz-in (1.6 kg-cm) and 1.6 A at stall.

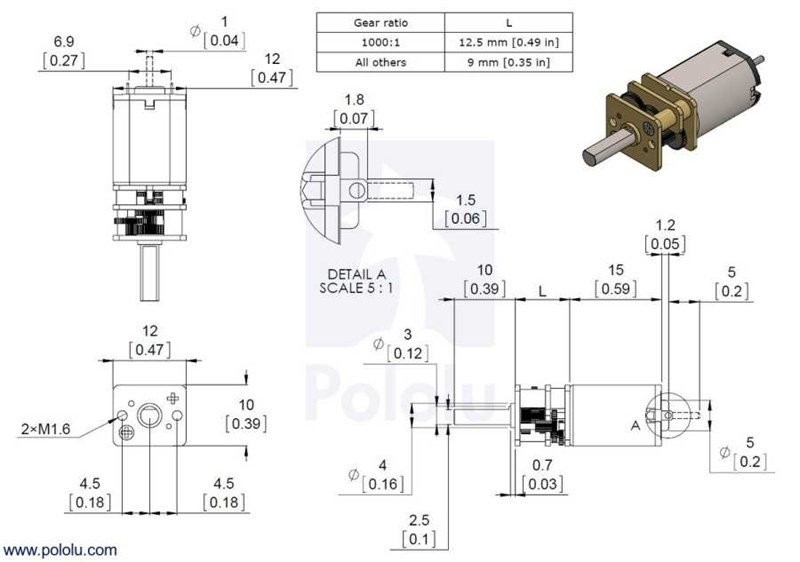

Dimensions
- Size:10 × 12 × 26 mm
- Weight:9.5 g
- Shaft diameter:3 mm
General specifications
- Gear ratio:75.81:1
- Free-run speed @ 6V:400 rpm
- Free-run current @ 6V:120 mA
- Stall current @ 6V:1600 mA
- Stall torque @ 6V:22 oz·in
- Extended motor shaft?:N
- Motor type:1.6A stall @ 6V (HP 6V)
