1000:1 Micro Metal Gearmotor HP 6V 32Rpm

0 Comment
Brand/Manufacturer:Pololu
SKU:T421
Stock:Out of stock
$ 24.90
More:Pololu
Contact
This motor is a member of Pololu High-Power Series. This micro gear motor can bes used at your projects with it's high power feature.

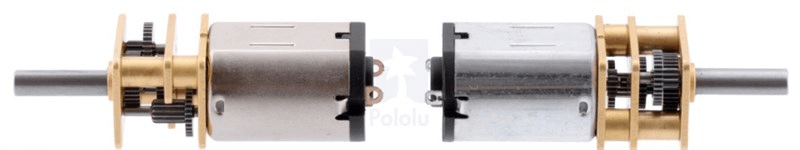

This gearmotor is a miniature high-power, 6 V brushed DC motor with a 986.41:1 metal gearbox, making it a great choice for applications requiring fine control at very low speeds. It has a cross section of 10 × 12 mm, and the D-shaped gearbox output shaft is 9 mm long and 3 mm in diameter.

Key specs at 6 V: 32 RPM and 120 mA with no load, 125 oz-in (9 kg-cm) and 1.6 A at stall. (Note: stall torque and current specifications are theoretical values; stalling the motor will damage the gearbox.)

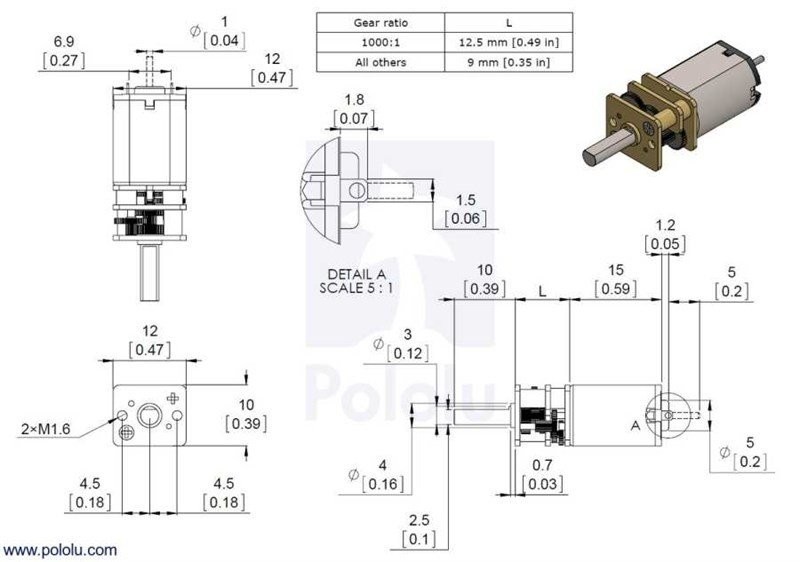

Dimensions
  • Size:10 × 12 × 29.5 mm1
  • Weight:10.5 g
  • Shaft diameter:3 mm2

General specifications
  • Gear ratio:986.41:1
  • Free-run speed @ 6V:32 rpm
  • Free-run current @ 6V:120 mA
  • Stall current @ 6V:1600 mA3
  • Stall torque @ 6V:125 oz·in3
  • Extended motor shaft?:N
  • Motor type:1.6A stall @ 6V (HP 6V)
