37mm DC Gear Motor 24V 800Rpm

-

+

Lorem ipsum dolor sit amet,consecteturdipisi eiushaliquast. o dtempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim.
Lorem ipsum dolor sit amet,consecteturdipisi eiushaliquast. o dtempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim.
Lorem ipsum dolor sit amet,consecteturdipisi eiushaliquast. o dtempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim.
Lorem ipsum dolor sit amet,consecteturdipisi eiushaliquast. o dtempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim.
Campaign

{{CMP.TITLE}}

{{CMP.DESCRIPTION}}

  • Features
  • Payment Options
  • Comments (0)
  • Zheng 37mm motors are great for hobby use and in competition robots such as sumo robot and rover robot.

    Motor has closed gear so motor has high performance and long life.

    It is not only Using for Robotic project also you can use for project  that need Power and Speed .

    This is a compact yet powerful DC brushed motor with gear head, a low cost solution for projects such as medium size robot, omni drive robot, sumo robot, fighting robot, or any mechanism. It is not only Using for Robotic project also you can use for project  that need Power and Speed

    It is being used in student final year projects, and competition robot.

    Sample Application: lightweight mechanism such as: bank note machine, handling machine, educational robot, etc

    Specific production dc gearmotors. There is product no real alternative at that feature! Your gearmotors is designed especially for projects such as the powerful all robot

    In Recent Years This  is one of  Most Popular Motor are used successfully in many industries due to their light weight and small size.

    Why Should i buy This Motor? Cheap Price, High Efficieny, Reasonable Power Do it now!

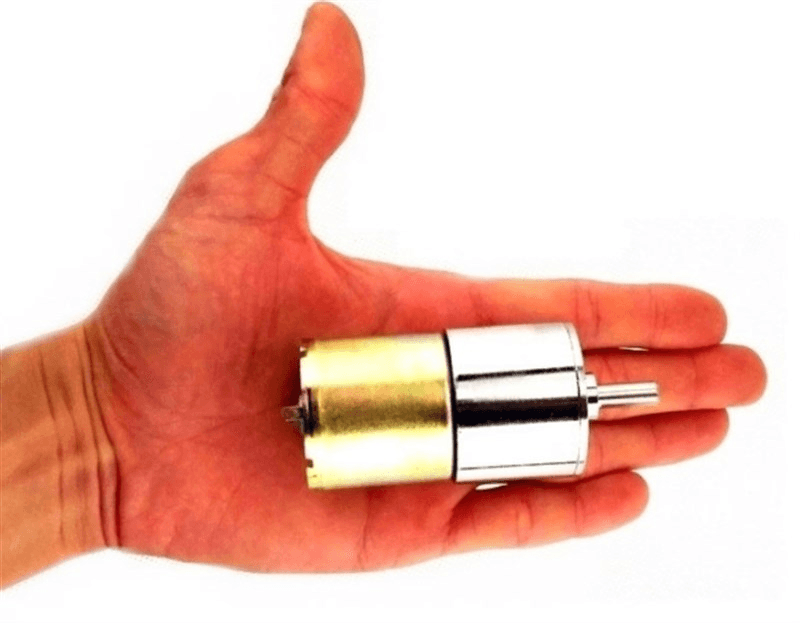

    At only 175 grams , these are a lightweight yet powerful motor.

    Working voltage is 24v but You can increase from 6v to 25v and you can feel the power

    • Voltage: 24V
    • Speed: 800Rpm
    • Stall Torque: 13 kg-cm
    • Stall Current: 2A
    • Current: 265mA

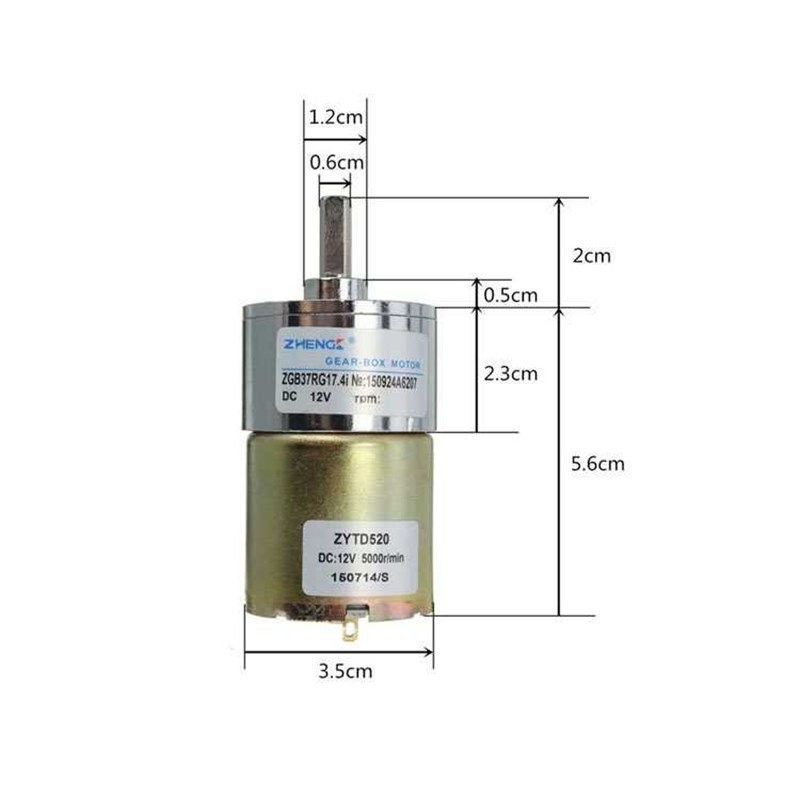

    • Shaft Diameter is 6mm and D type
    • Shaft Dimension is 17mm
    • Motor size 37mm
    • Weight: 175gr
    • Lenght top to end: 86mm
    The face plate has six mounting holes evenly spaced around the outer edge threaded for M3 screws.
