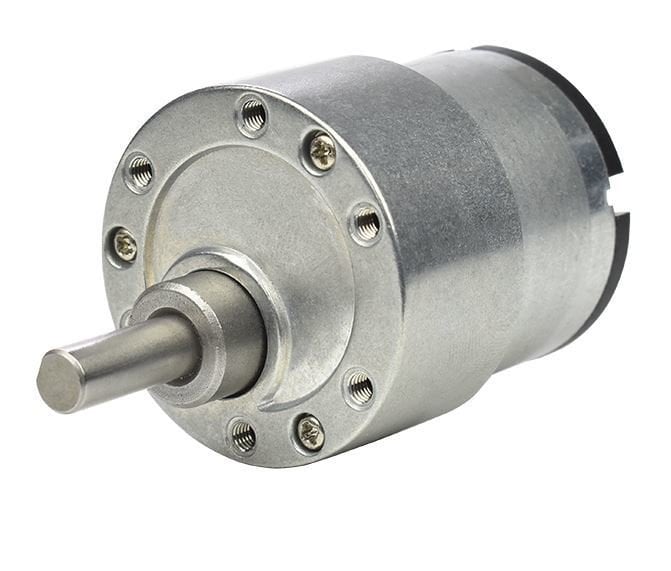

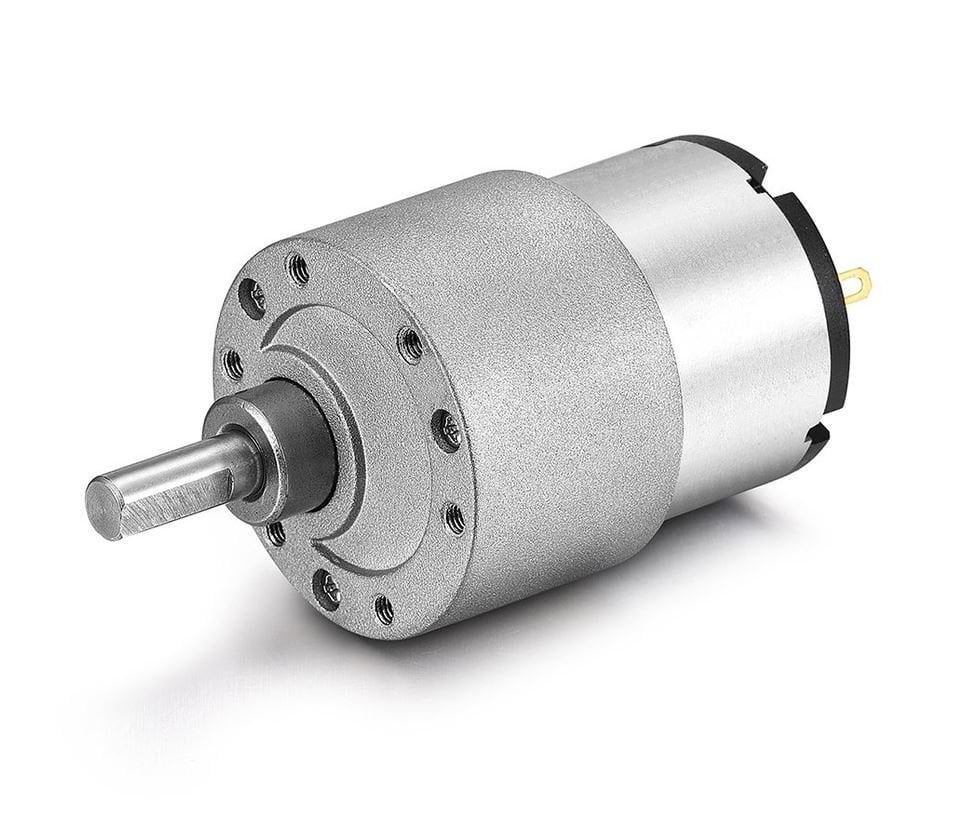

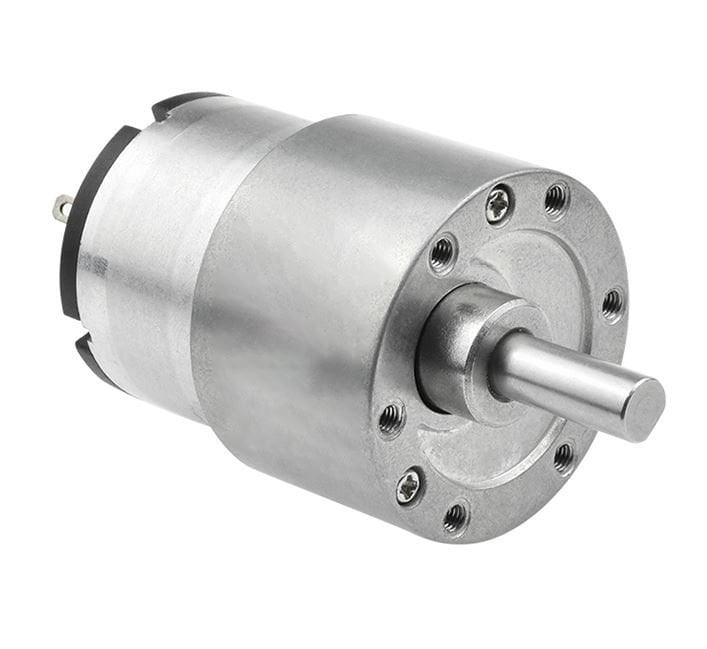

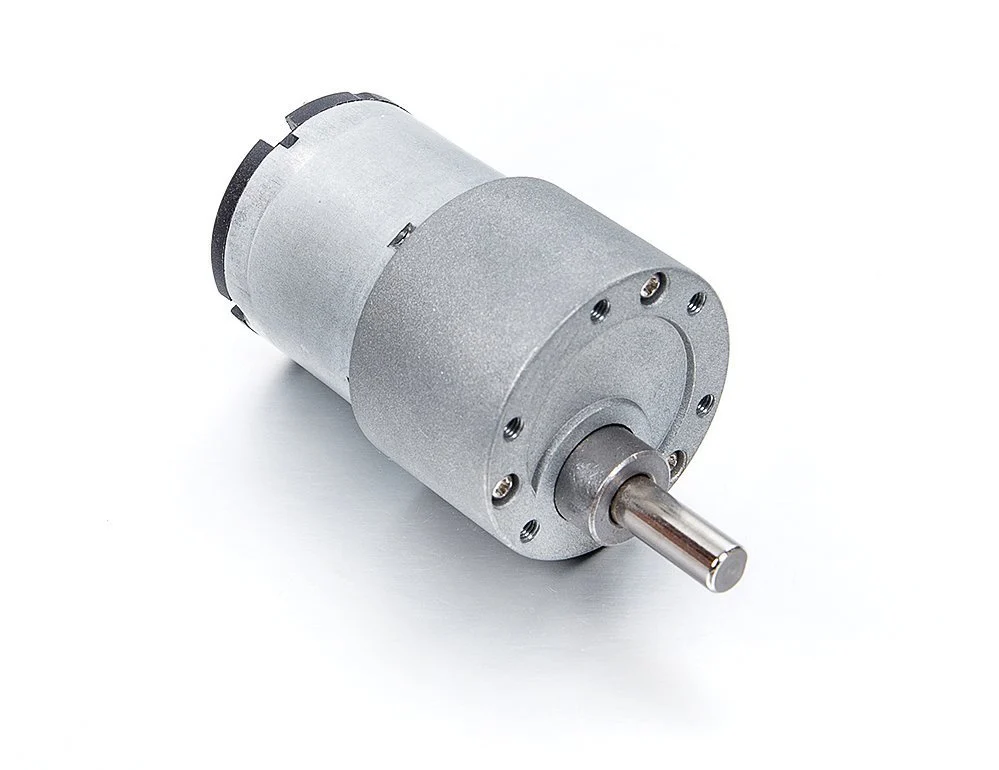

12V 5 RPM 37mm Geared DC Motor
0 Comment
Stock:
$ 12.00
More:37 mm Series
This is our metal gear DC motor model, which is frequently used in robot projects.
It can be used not only in robot projects but also in all applications that require torque and speed. These geared motors have become popular in recent years and are successfully used in many industries thanks to their lightweight structure and compact size.
They can be used successfully in industrial applications and machinery, and we highly recommend them.
- Suitable for projects requiring high speed and power
- Can be used in industrial applications and machines
- Recommended for off-road robots and sumo robots
Technical Specifications
- Motor Diameter: 37 mm
- Shaft Diameter: 6 mm
- Shaft Length: 15 mm
- Total Motor Length (end to end): 79 mm
- Motor Weight: 160 g

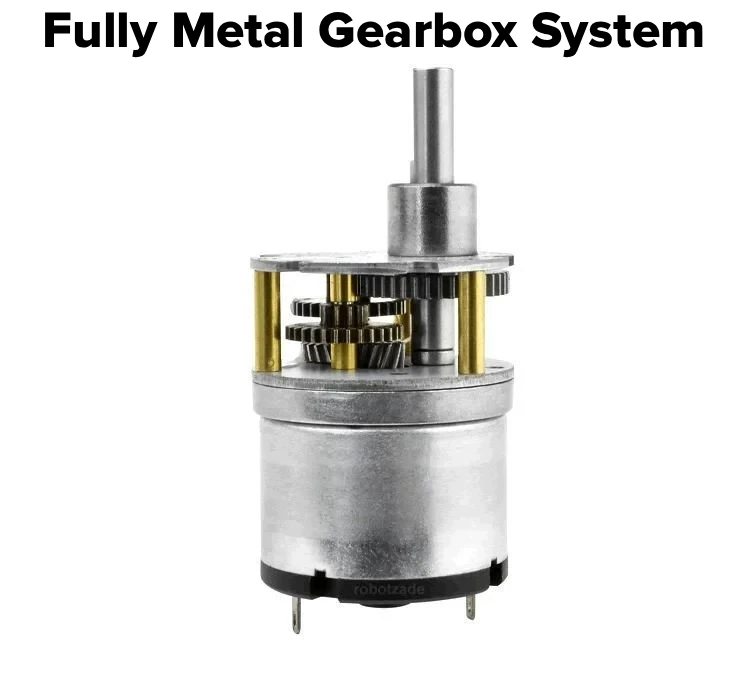

- Gearbox and entire reducer system are made of metal
- M3 mounting holes are available on the front face of the motor for installation
You can purchase this affordable motor and easily use it in all your projects.
| Motor Model | Motor Speed | Operating Current | Stall Current | Torque |
| 12V 5 RPM | 5 RPM | 155 mA | 2.10 A | 33 kg-cm |
| 12V 10 RPM | 10 RPM | 160 mA | 1.90 A | 20 kg-cm |
| 12V 30 RPM | 30 RPM | 145 mA | 1.80 A | 16 kg-cm |
| 12V 60 RPM | 60 RPM | 150 mA | 1.75 A | 15 kg-cm |
| 12V 120 RPM | 120 RPM | 165 mA | 1.70 A | 14 kg-cm |
| 12V 200 RPM | 200 RPM | 120 mA | 1.65 A | 13 kg-cm |
| 12V 500 RPM | 500 RPM | 175 mA | 1.50 A | 12 kg-cm |
