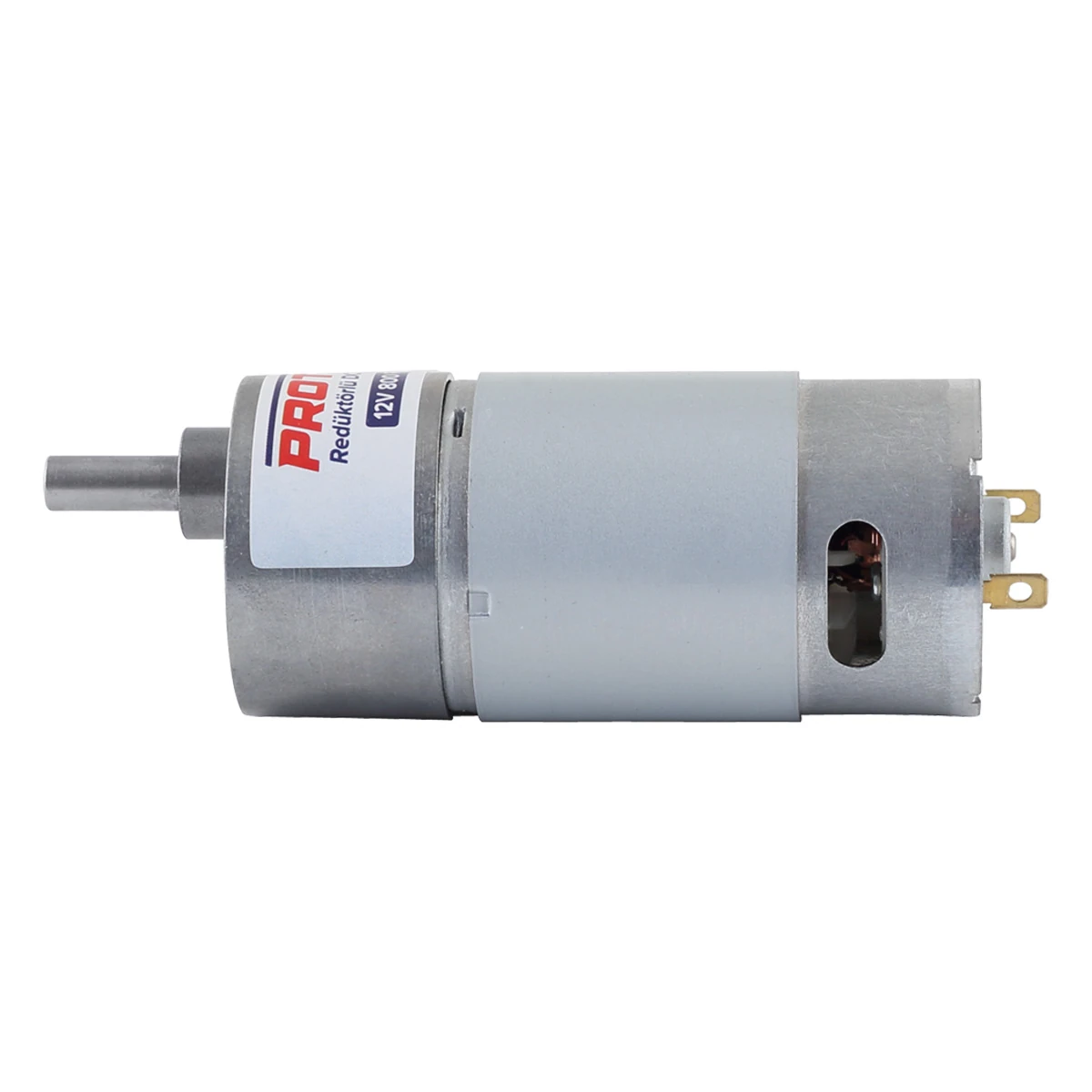

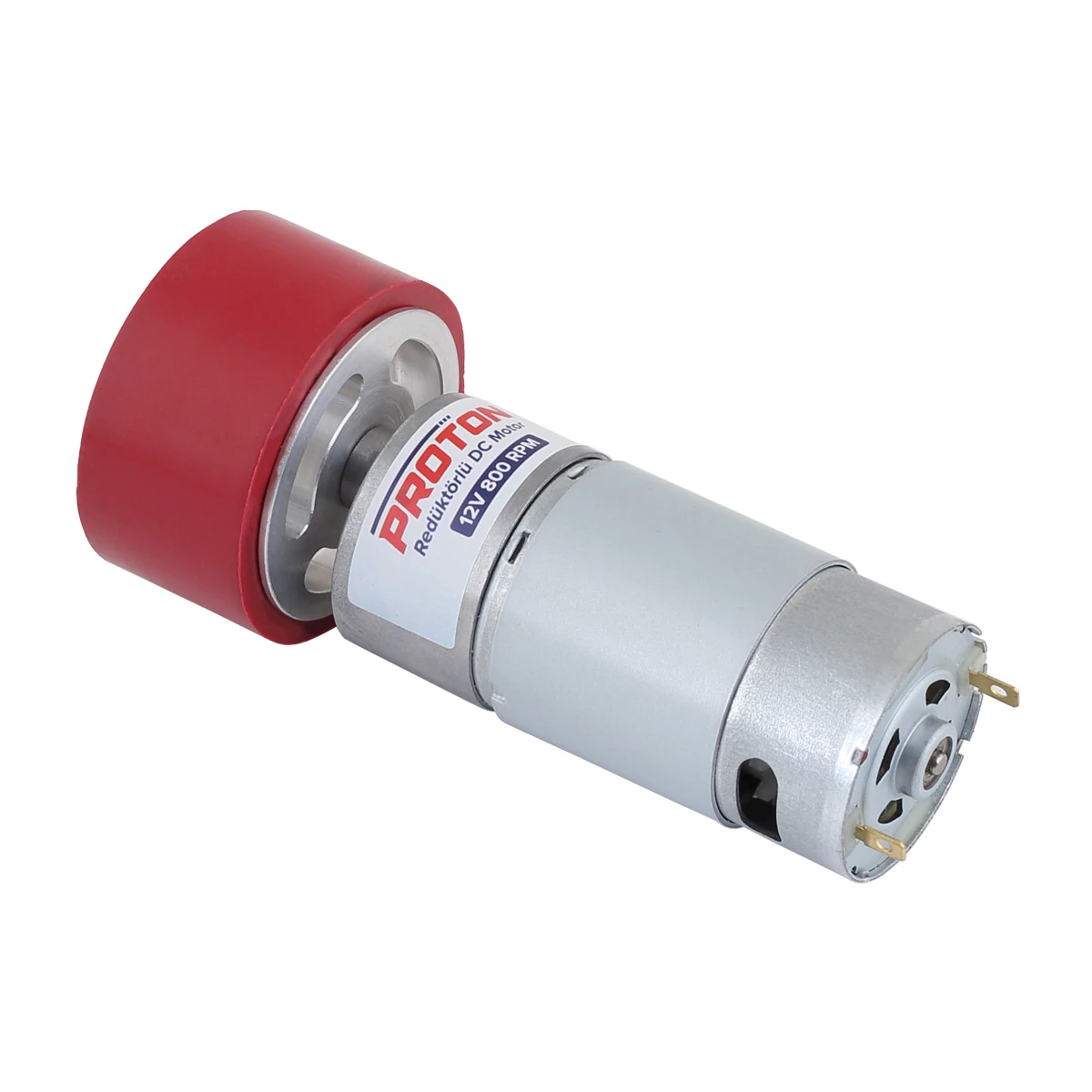

Proton 12V 800 RPM High-Torque DC Gear Motor

The Proton 12V 800 RPM High-Torque DC Gear Motor is a powerful DC motor model developed for robotic projects that require high power, high torque, and a durable mechanical structure. With an output speed of 800 RPM at a 12V operating voltage, the motor combines high movement speed with strong pulling performance.

Its fully metal gear reduction system ensures efficient transmission of motor power to the output shaft. This makes it suitable for heavier and more powerful robot projects where standard robot motors may not provide sufficient performance. Thanks to its compact 37 mm-class body, it delivers high performance without taking up excessive space in robot designs.

The Proton series is particularly well suited for off-road robots, combat robots, sumo robots, wheeled mobile robots, exploration robots, and autonomous vehicle projects. Thanks to its powerful motor construction, it can be used in robots operating on rough terrain, high-weight platforms, and mechanical systems that require fast movement.

It can also be used in a wide range of applications, including tracked robots, 4WD and 6WD robot platforms, transport robots, warehouse robots, security and exploration robots, agricultural robots, competition robots, AGV projects, conveyor systems, and custom automation machines.

For users designing their own robot chassis and looking for a more powerful solution than standard hobby motors, the 800 RPM speed provides a significant advantage in projects requiring high mobility. When used with a suitable motor driver and power supply, speed and direction can be electronically controlled.

The motor can be integrated into robotic projects using Arduino, ESP32, STM32, Raspberry Pi, and similar control systems, together with a powerful motor driver suitable for the motor's current requirements.

Technical Specifications

  • Operating Voltage: 12V DC

  • Output Speed: 800 RPM

  • Operating Current: 2.20 A

  • Stall Current: 12 A

  • Stall Torque: 23 kg-cm

  • Motor Type: High-Torque DC Gear Motor

  • Motor Diameter: 37 mm

  • Shaft Diameter: 6 mm

  • Shaft Length: 15 mm

  • Overall Length: 97 mm

  • Weight: ~330 g

  • Gearbox: Enclosed metal gearbox

  • Gear Construction: Metal gears

  • Mounting: Front-face mounting holes

  • Applications: Off-road robots, combat robots, mobile robots, tracked robots, 4WD/6WD robot platforms, exploration robots, autonomous vehicles, transport robots, and automation projects

The Proton 12V 800 RPM offers a wide range of applications, from small hobby projects to professional competition and mobile robotics, thanks to its powerful motor construction, metal gearbox, and high output speed. It is one of the performance-oriented motor options in the Proton series for users who want to design a powerful and fast robot.
