24V DC 500mm Linear Actuator Motor 20mm/s 500N
0 Comment
SKU:
Stock:
$ 79.00
More:Linear Motors

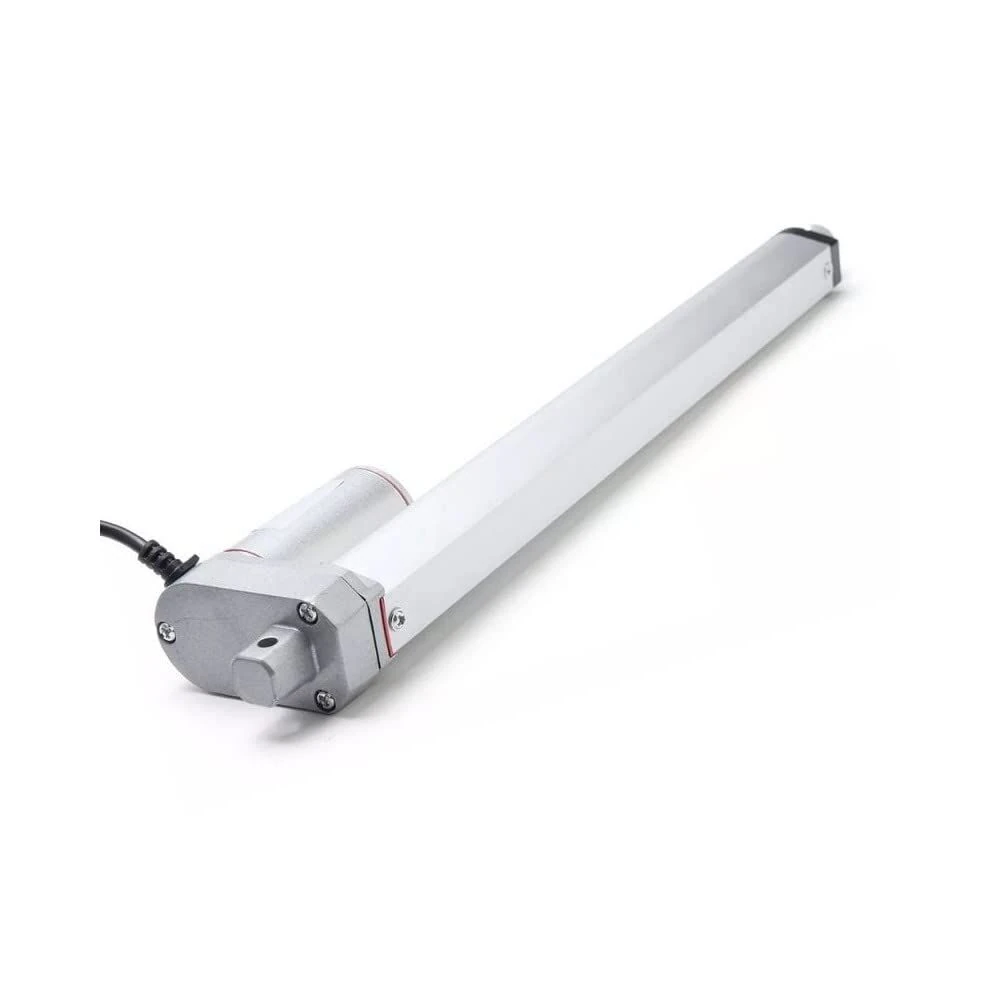

24V DC 500mm Linear Actuator Motor 20mm/s 500N

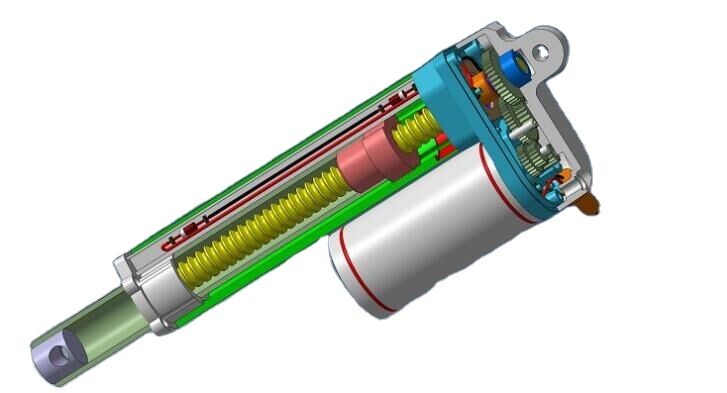

The 24V DC 500mm Linear Actuator is a powerful and reliable linear motion solution that converts the rotary motion of an electric motor into linear motion through a precision lead screw mechanism. With a 500N push and pull force, it is ideal for automation systems, robotics, industrial machinery, and engineering applications.
Featuring a 500mm stroke length, this actuator is well suited for applications requiring extended linear travel. Its 20mm/s travel speed provides fast and stable operation, making it an excellent choice for automatic hatch and door systems, moving platforms, lifting mechanisms, and custom automation projects.
The actuator is equipped with built-in limit switches that automatically stop the motor when the actuator reaches its fully extended or fully retracted position. This feature prevents mechanical overload, improves operational safety, and extends the service life of the actuator.
Its durable housing and high-performance motor make it a dependable solution for both industrial applications and maker projects requiring precise linear motion.
Designed with a 10% duty cycle, this actuator is intended for intermittent operation, delivering high performance in applications that require short-duration, high-force movement.
Technical Specifications
- Operating Voltage:24V DC
- Maximum Load Capacity:500N
- Stroke Length:500 mm
- Travel Speed:20 mm/s
- Duty Cycle:10%
- Limit Switch:Built-in automatic limit switches (stops automatically at full extension and retraction)
- Body Dimensions:8 × 4 cm
- Retracted Length:640 mm
- Extended Length:1140 mm
Key Features
- 500N push and pull force
- 20mm/s fast and stable movement
- 500mm long stroke
- Built-in limit switches for safe operation
- Durable and compact housing
- Ideal for robotics and industrial automation
- Easy to install and integrate
Applications
- Robotics and mechatronics projects
- Industrial automation systems
- Automatic doors, hatches, and mechanical systems
- Smart home automation
- Moving platforms
- Electric pushing and lifting mechanisms
- Arduino and maker projects
