12V DC 200mm Linear Actuator Motor 20mm/s 500N
0 Comment
SKU:
Stock:
$ 58.00
More:Linear Motors

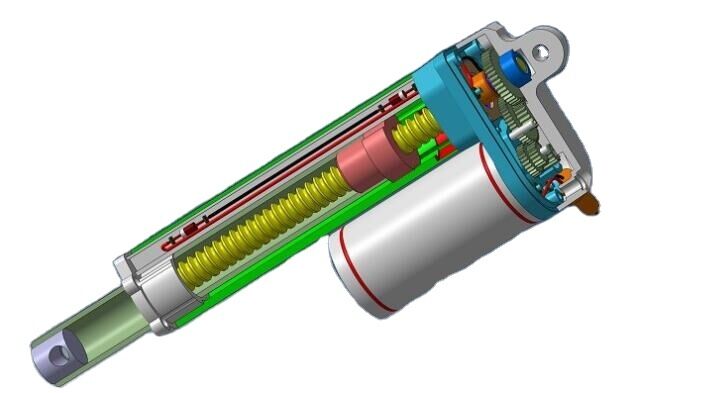

The 12V DC 200mm Linear Actuator is a powerful and compact linear motion solution that converts the rotary motion of an electric motor into linear motion through a high-efficiency lead screw mechanism. With a 500N push and pull force, it is ideal for automation systems, robotics, and a wide variety of mechanical applications.
With a 20mm/s travel speed, this actuator provides fast, smooth, and controlled linear movement. It is an excellent choice for automatic door and hatch systems, robotic mechanisms, moving platforms, and smart automation projects.
The actuator features built-in limit switches that automatically stop the motor when it reaches its fully extended or fully retracted position. This prevents mechanical overload, improves system safety, and extends the actuator's service life. It can operate safely without requiring additional sensors or external limit switches.
Its durable housing, high-performance motor, and stable operation make this actuator an ideal solution for maker projects, industrial automation systems, robotics, and custom mechanical designs.
Designed with a 10% duty cycle, this actuator is intended for intermittent operation and delivers reliable performance in applications requiring short-duration, high-force movement.
If your project requires a powerful, compact, and reliable linear motion solution, this actuator is an excellent choice.
Technical Specifications
- Operating Voltage:12V DC
- Maximum Load Capacity:500N

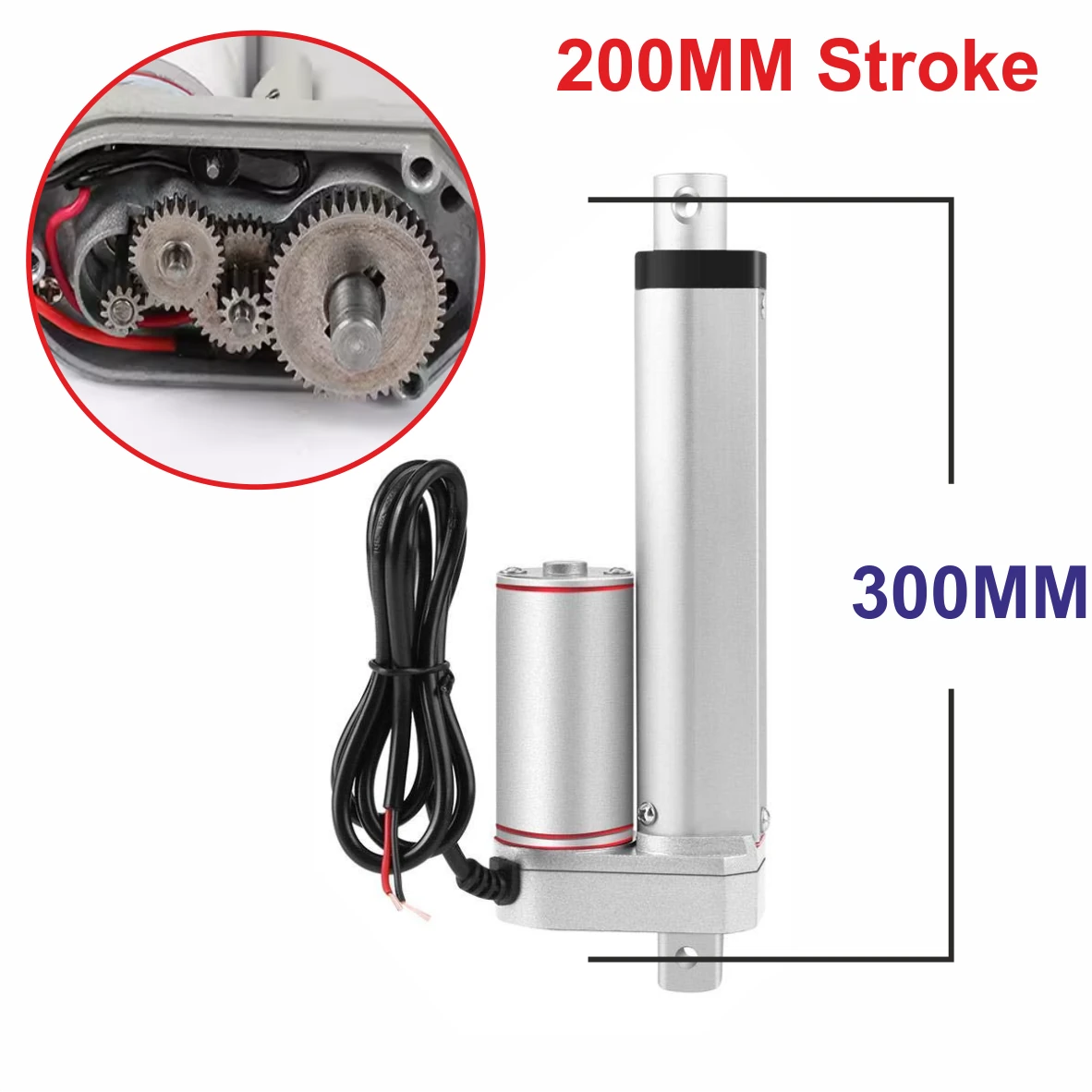

- Stroke Length:200 mm
- Travel Speed:20 mm/s
- Duty Cycle:10%
- Limit Switch:Built-in automatic limit switches (stops automatically at full extension and retraction)
- Retracted Length:320 mm
- Extended Length:520 mm
- Body Dimensions:8 × 4 cm
Key Features
- 500N push and pull force
- 20mm/s fast and stable movement
- Built-in limit switches for safe operation
- Compact and durable housing
- Ideal for robotics and automation projects
- Easy to install and integrate
Applications
- Robotics and mechatronics projects
- Industrial automation systems
- Automatic doors, hatches, and drawer mechanisms
- Smart home systems
- Moving platforms
- Electric pushing and lifting systems
- Maker and Arduino projects
