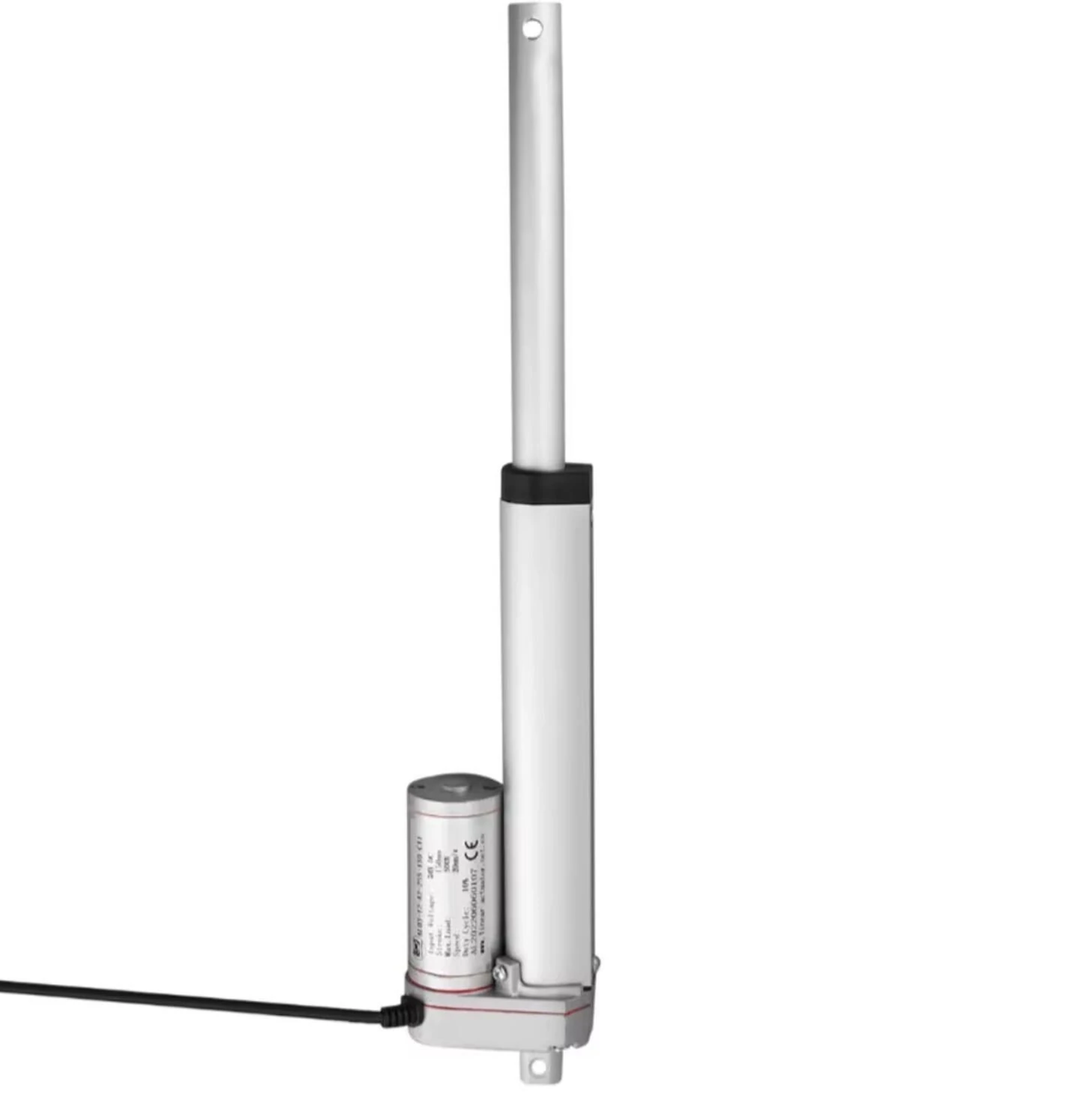

12V DC 150mm Linear Actuator Motor 20mm/s 500N

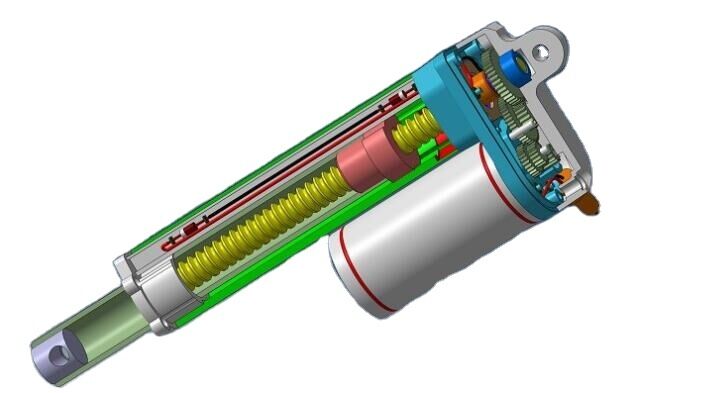

The 12V DC 150mm Linear Actuator is a powerful and compact linear motion solution that converts the rotary motion of an electric motor into linear motion through a precision lead screw mechanism. With a 500N push and pull force, it is ideal for robotics, automation systems, and a wide variety of engineering applications.
With a 20mm/s travel speed, this actuator provides fast, smooth, and stable linear motion. It is an excellent choice for automatic doors and hatches, moving platforms, robotic mechanisms, and custom engineering projects.
The actuator is equipped with built-in limit switches that automatically stop the motor when the actuator reaches its fully extended or fully retracted position. This feature prevents mechanical overload, enhances system safety, and helps extend the actuator's service life.
Its compact design, high-performance motor, and stable operation make it an ideal linear motion solution for maker projects, industrial automation systems, and smart mechanical designs.
Designed with a 10% duty cycle, this actuator is intended for intermittent operation, delivering high performance in applications requiring short-duration, high-force movement.
Technical Specifications
- Operating Voltage:12V DC
- Maximum Load Capacity:500N
- Stroke Length:150 mm
- Travel Speed:20 mm/s
- Duty Cycle:10%
- Limit Switch:Built-in automatic limit switches (stops automatically at full extension and retraction)
- Body Dimensions:8 × 4 cm
- Retracted Length:270 mm
- Extended Length:420 mm
Key Features
- 500N push and pull force
- 20mm/s fast and stable movement
- Built-in limit switches for safe operation
- Durable and compact housing
- Ideal for robotics and automation projects
- Easy to install and integrate
Applications
- Robotics and mechatronics projects
- Industrial automation systems
- Automatic doors, hatches, and drawer systems
- Smart home mechanisms
- Moving platforms
- Electric pushing and lifting applications
- Arduino and maker projects
