24V DC 300mm Linear Actuator Motor 20mm/s 500N
0 Comment
SKU:
Stock:
$ 67.00
More:Linear Motors

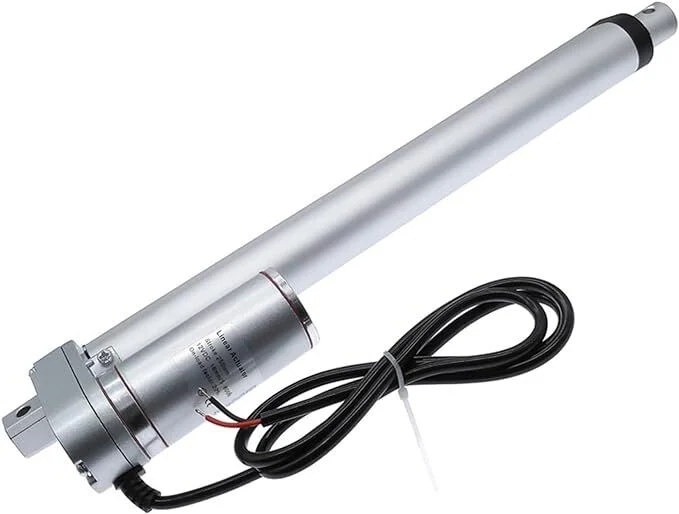

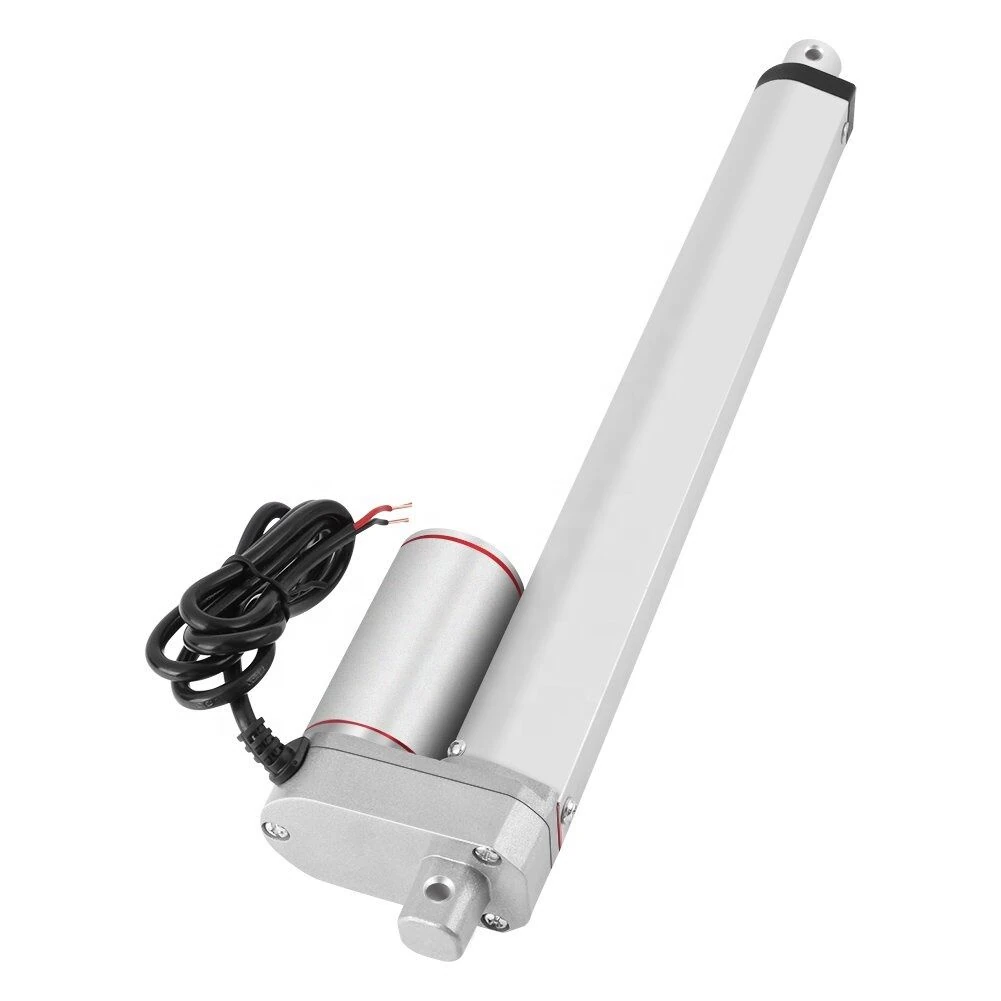

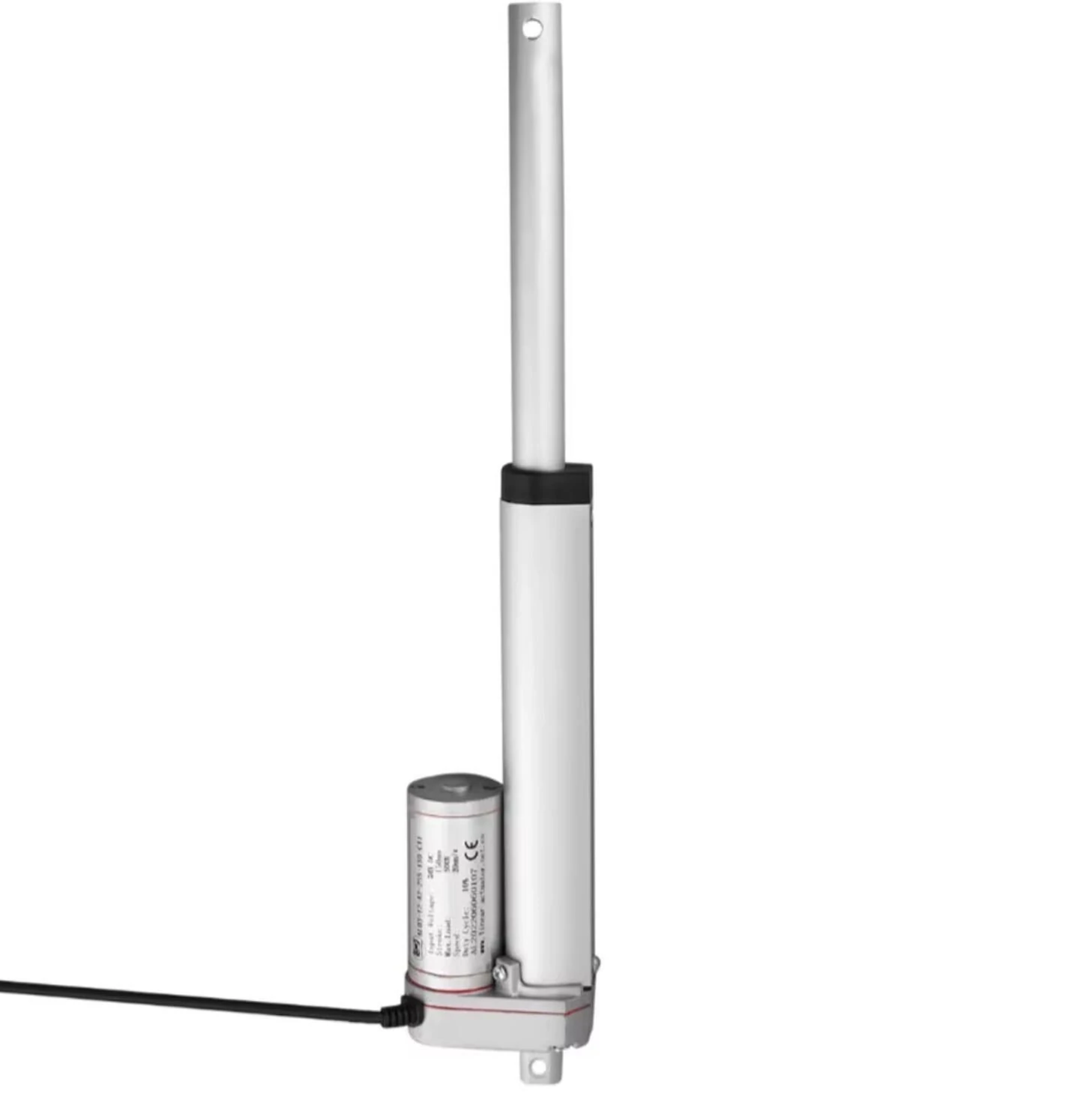

24V DC 300mm Linear Actuator Motor 20mm/s 500N

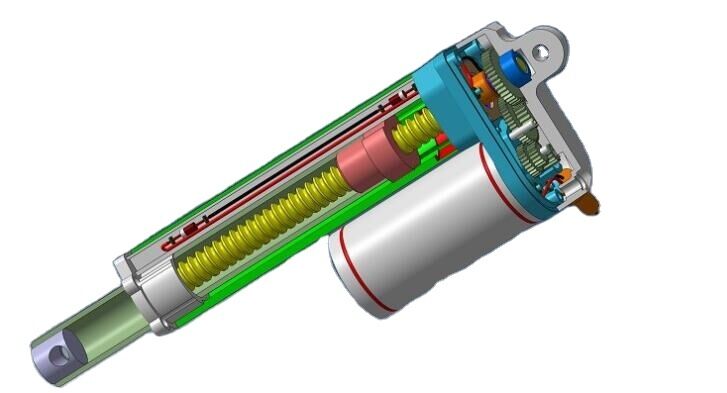

The 24V DC 300mm Linear Actuator is a powerful and reliable linear motion solution that converts the rotary motion of an electric motor into linear motion through a precision lead screw mechanism. With a 500N push and pull force, it is ideal for robotics, automation systems, and a wide range of mechanical applications.
Featuring a 300mm stroke length, this actuator is designed for applications requiring extended linear movement. Its 20mm/s travel speed ensures fast, smooth, and controlled operation, making it an excellent choice for automatic hatch and door systems, moving platforms, industrial machinery, and smart automation projects.
The actuator includes built-in limit switches that automatically stop the motor when the actuator reaches its fully extended or fully retracted position. This prevents mechanical overload, enhances system safety, and extends the actuator's service life.
Its durable housing and high-performance motor make it a dependable linear motion solution for both industrial applications and maker or engineering projects.
Designed with a 10% duty cycle, this actuator is intended for intermittent operation and provides excellent performance in applications requiring short-duration, high-force movement.
Technical Specifications
- Operating Voltage:24V DC
- Maximum Load Capacity:500N
- Stroke Length:300 mm
- Travel Speed:20 mm/s
- Duty Cycle:10%
- Limit Switch:Built-in automatic limit switches (stops automatically at full extension and retraction)
- Body Dimensions:8 × 4 cm
- Retracted Length:420 mm
- Extended Length:720 mm
Key Features
- 500N push and pull force
- 20mm/s fast and stable movement
- 300mm stroke length
- Built-in limit switches for safe operation
- Durable and compact housing
- Ideal for robotics and industrial automation
- Easy to install and integrate
Applications
- Robotics and mechatronics projects
- Industrial automation systems
- Automatic doors, hatches, and mechanical systems
- Smart home automation
- Moving platforms
- Electric pushing and lifting mechanisms
- Arduino and maker projects
