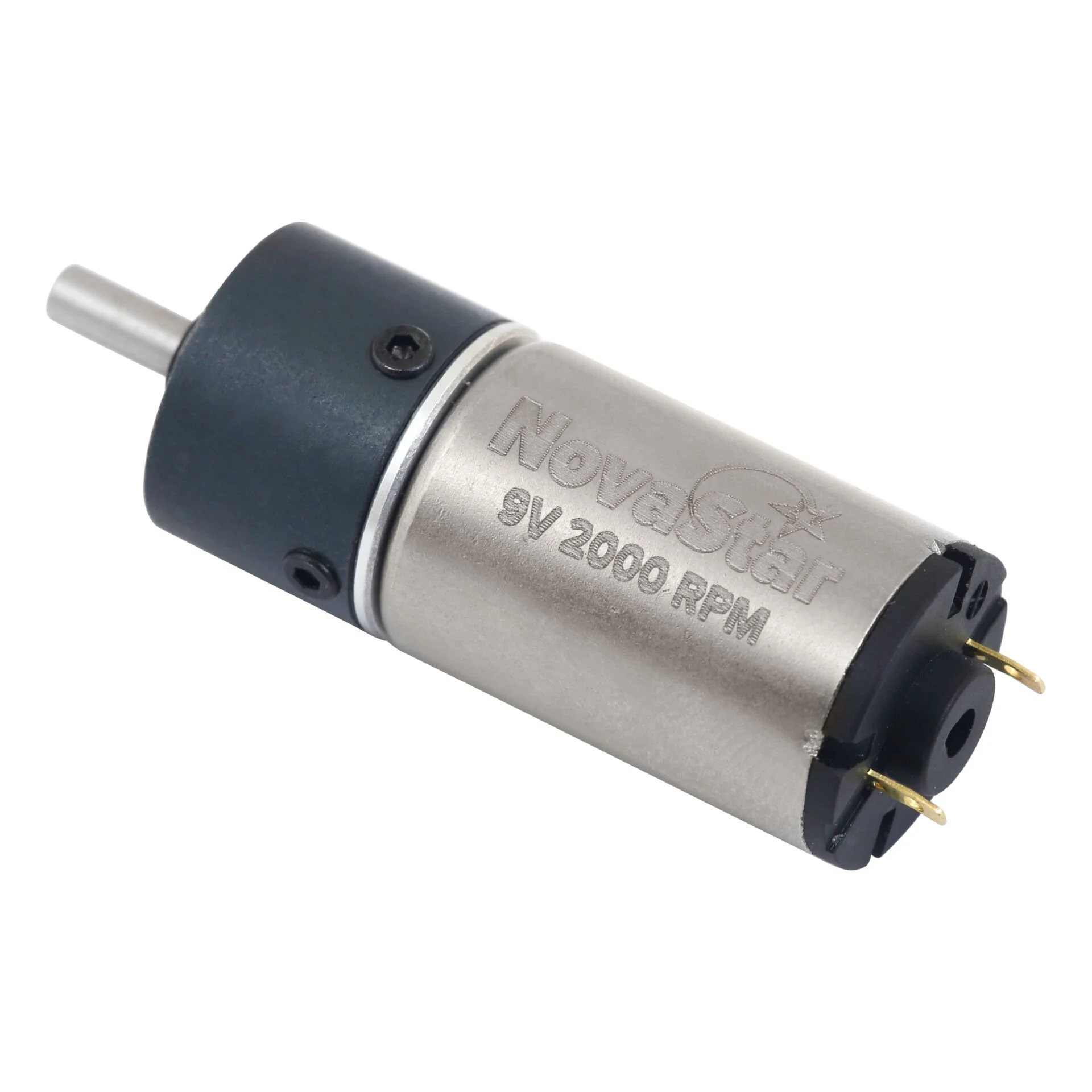

NovaStar 9V 2000 RPM Coreless (Ironless) DC Motor with Planetary Gearbox
The NovaStar 9V 2000 RPM Coreless DC Motor with Planetary Gearbox is a high-end robotic motor developed for line follower robots and high-speed mini sumo robots. It provides a permanent solution to common issues found in standard DC motors, such as low build quality, inefficient power transmission, and gear breakage.
Designed for competition and performance-oriented robotic projects, this motor combines **custom-wound coreless motor technology** with a **fully metal planetary gearbox**, delivering high speed, strong torque, and long service life.
Premium Design and Manufacturing Approach
The motor and gear system of the NovaStar Coreless Planetary Motor are designed based on high-end industrial motor manufacturing principles. The internal motor structure and planetary gearbox geometry have been optimized with reference to engineering approaches used in Maxon motor design philosophy.
The coreless winding structure is developed for rapid acceleration and high efficiency, while the planetary gear system is manufactured entirely from metal to ensure stable and long-lasting operation under high torque. As a result, this motor offers quieter, smoother, and more stable performance compared to standard DC motors.
Key Advantages
- Fast response time and high acceleration thanks to coreless motor design
- Low vibration and precise speed control
- High durability with fully metal, enclosed 16 mm planetary gearbox
- Significantly longer lifespan compared to standard geared motors
- Stable driving performance in professional line follower robots with balanced speed and torque
- Strong pushing force and fast attack capability for mini sumo robots
- Compact and lightweight design that does not disturb the robot’s center of gravity
- Suitable for competition, educational, and professional robotic projects
Applications

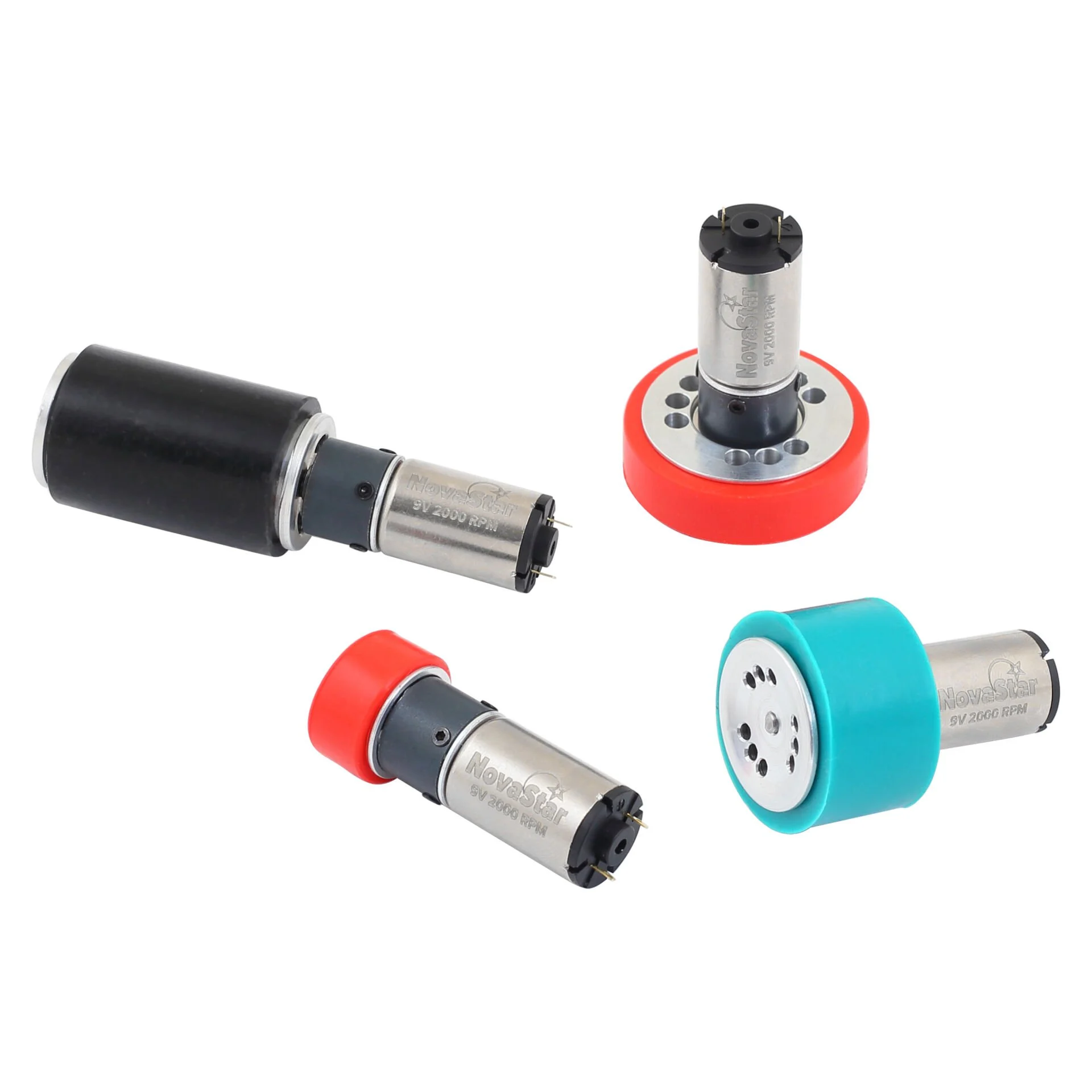

- Line follower robots
- High-speed mini sumo robots
- Robotic projects
- Educational and R&D robotics applications
- Applications requiring precise control and high performance
Technical Specifications
- Motor Type: Custom-wound coreless (ironless) DC motor
- Nominal Operating Voltage: 9 V
- Recommended Operating Voltage Range: 12 V – 16 V
- Maximum Operating Voltage: 18 V
- Speed: 2000 RPM (at 9 V)
Current Ratings (at 9 V):
- No-load current: ~100 mA
- Operating current: ~450 mA
- Stall current: ~2.5 A
Torque Ratings (at 9 V):
- Nominal load torque: ~0.7 kg·cm
- Stall torque: ~1.4 kg·cm
Mechanical Specifications
- Gearbox Type: Enclosed planetary gearbox
- Gearbox Material: Fully metal
- Gearbox Diameter: 16 mm
- Motor Diameter: 16 mm
- Shaft Type: 3 mm D-shaped shaft (center output)
- Shaft Length: 7.5 mm
- Overall Length (end to end): 49 mm
- Front Mounting Holes: Suitable for M2 screws
- Weight: 35 g
Why Choose the NovaStar Coreless Planetary Motor?
Compared to standard DC motors, it offers:
- Higher efficiency
- Faster acceleration
- More durable gear structure
- More stable and reliable performance
With these features, it is an ideal choice for users searching for line follower robot motors, mini sumo robot motors, coreless DC motors, and robot motors with planetary gearboxes.
