RS775 DC Motor 12V–36V 7500–15000 RPM
The RS775 DC Motor is a high-speed, gearless DC motor designed for applications requiring high power and high RPM.
It is ideal for DIY CNC projects, hobby saws, hobby drills, and many other engineering and maker projects. The motor features a built-in rear cooling fan for improved heat dissipation during operation.
This is an original, brand-new 2021 production RS775 motor, offering significantly better quality than the used motors commonly available on the market. All of our motors are marked with the "2021" production label.

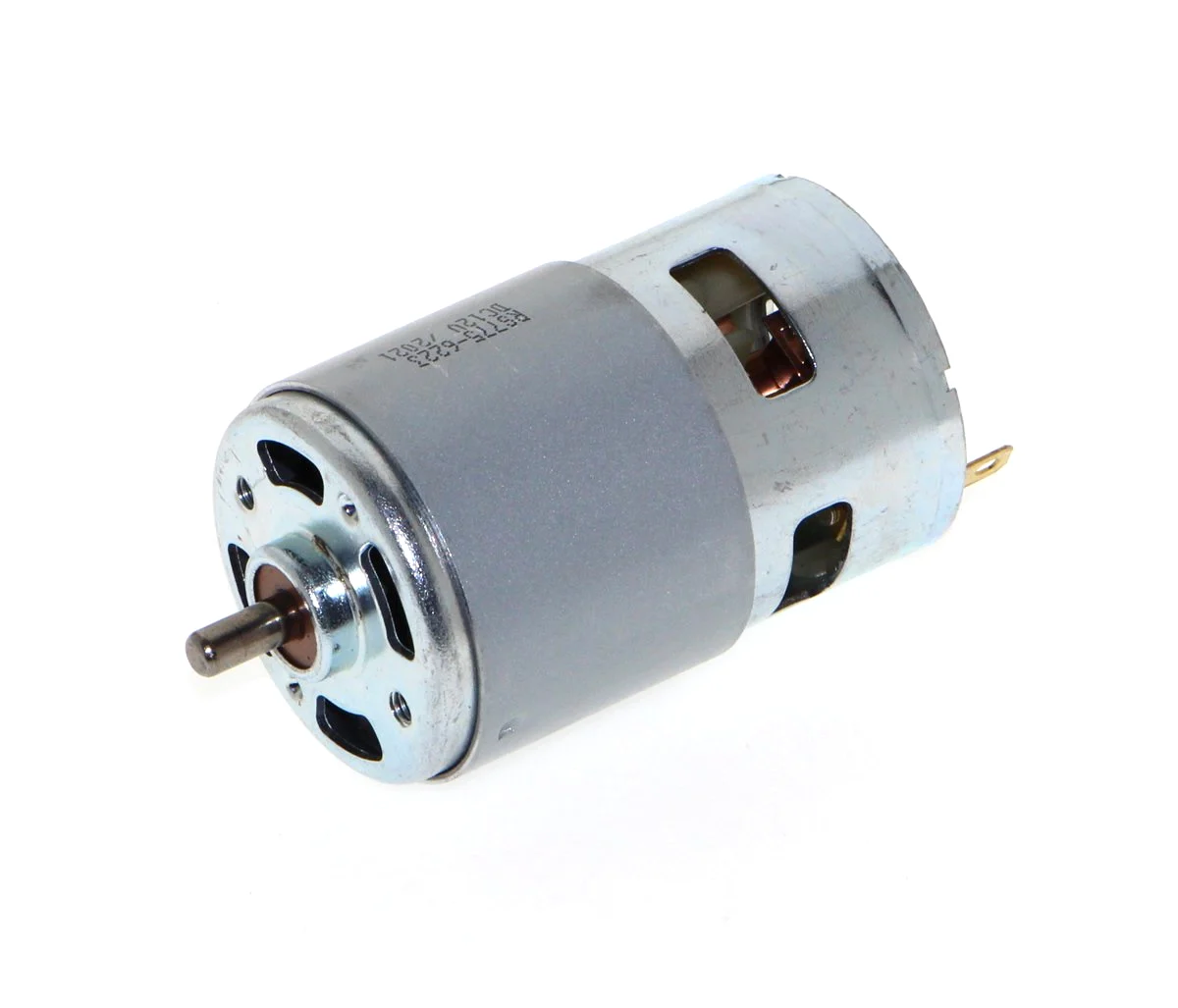

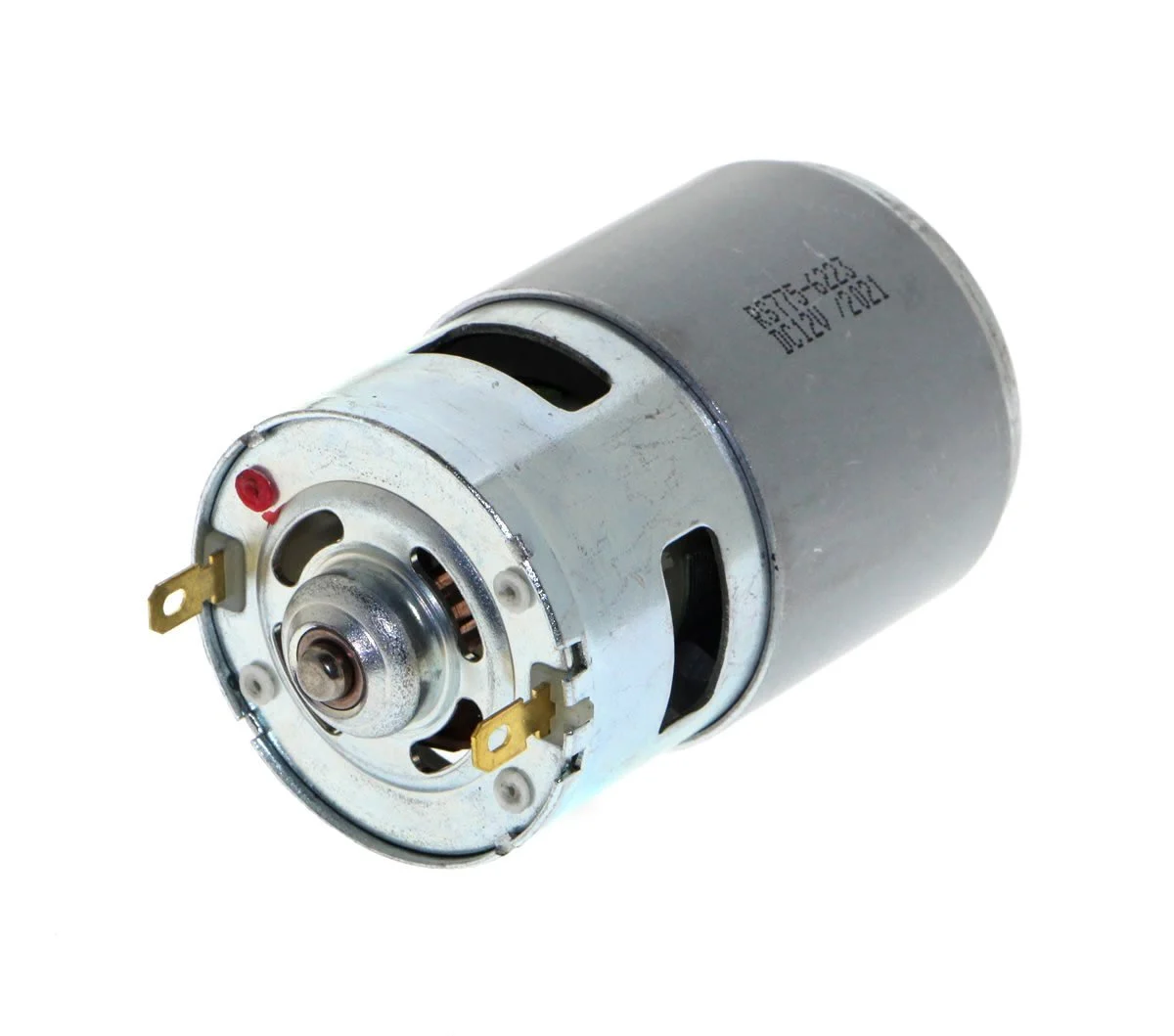

The product images have been taken by Sumozade and show the actual product.
Speed Ratings
- 12V: 7,500 RPM (Recommended Operating Voltage)
- 24V: 15,000 RPM
- 36V: 22,500 RPM (Maximum Operating Voltage)
Click here for the compatible motor mounting bracket.
Applications
- Olive Harvest Machines
- Olive Shaker Machines
- Circular Saws
- CNC Router Spindles
- Racing Simulator Steering Wheel Systems
- Mini Lathes
- Hobby Models
- Textile Machinery
- RC Boats and RC Cars
- Robotics and Electronics Projects
- Automotive and Industrial Machinery as a replacement motor
- And many other applications
Specifications
- Operating Voltage: 12V (Minimum) – 36V (Maximum)
- No-Load Speed @ 12V: 7,500 RPM
- Motor Power:125W
- No-Load Current @ 12V: 7.1A
- Load Current @ 12V: 11A
- Maximum Stall Current @ 12V: 25A
- Working Torque @ 12V: 4 kg/cm
- Stall Torque @ 12V: 16.5 kg/cm²
- Weight: 340 g

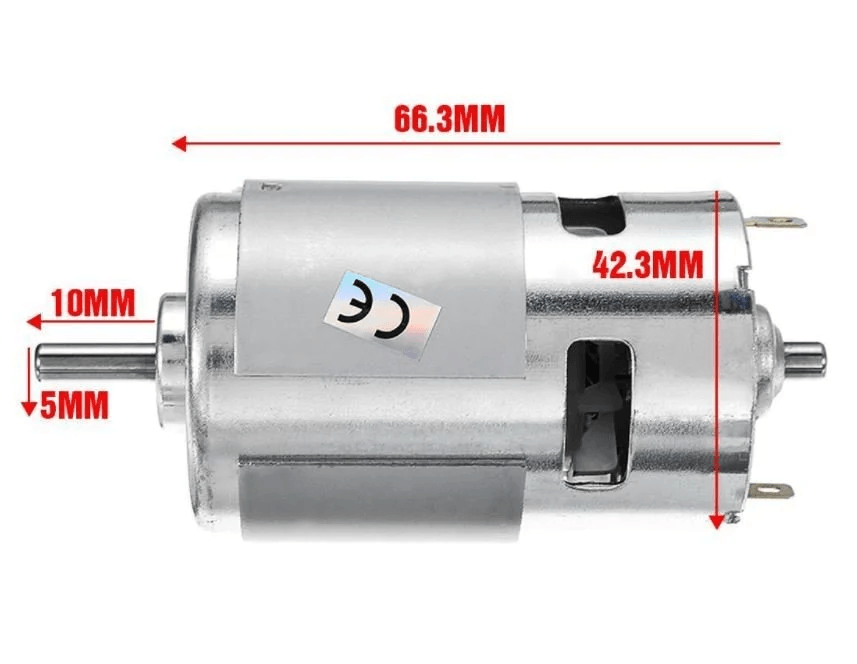

- Shaft Diameter: 5 mm
- Shaft Length: 10 mm
- Motor Diameter: 42.3 mm
- Motor Body Length: 66.3 mm (motor body only)
