For Professional High-Power Mini Sumo Robot Projects!

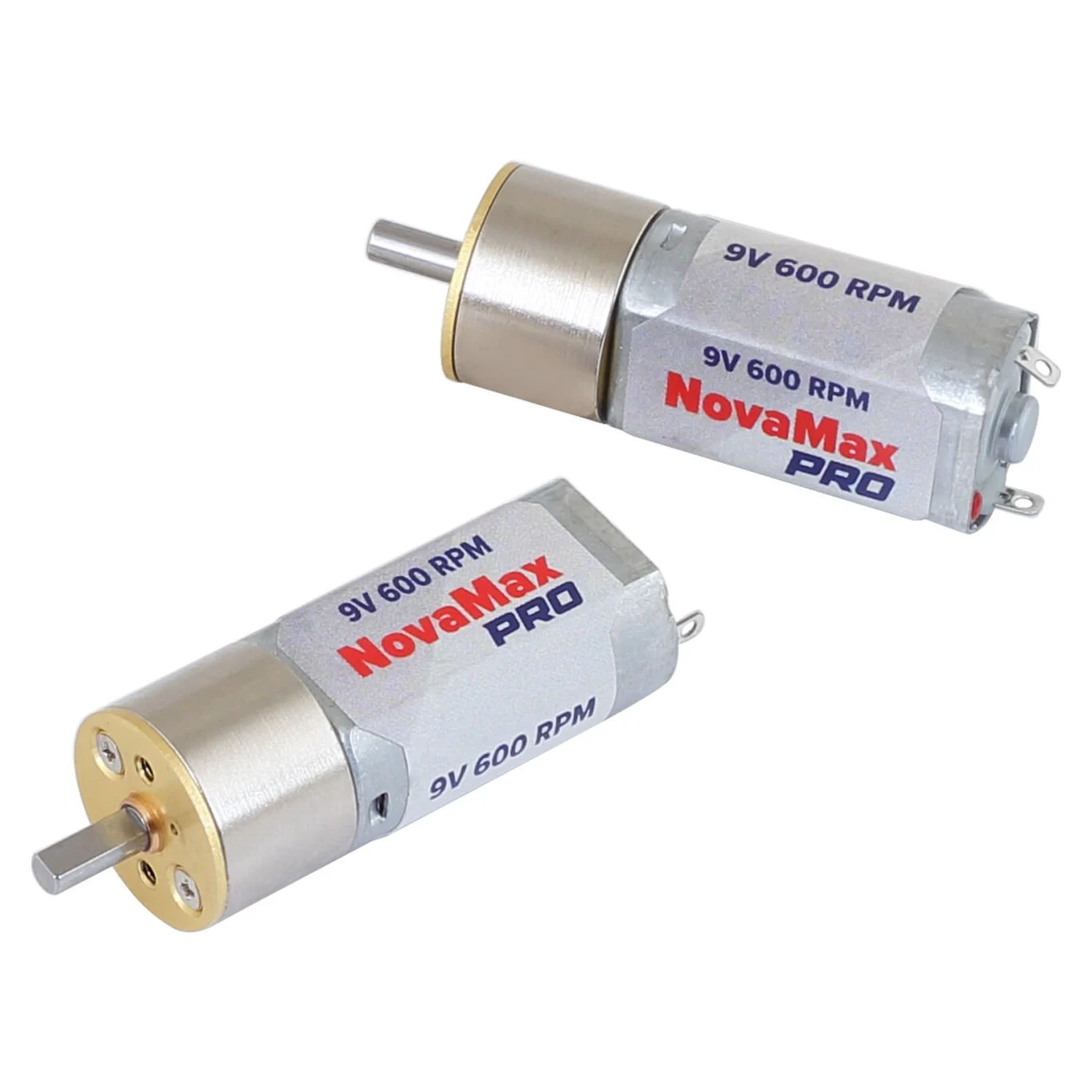

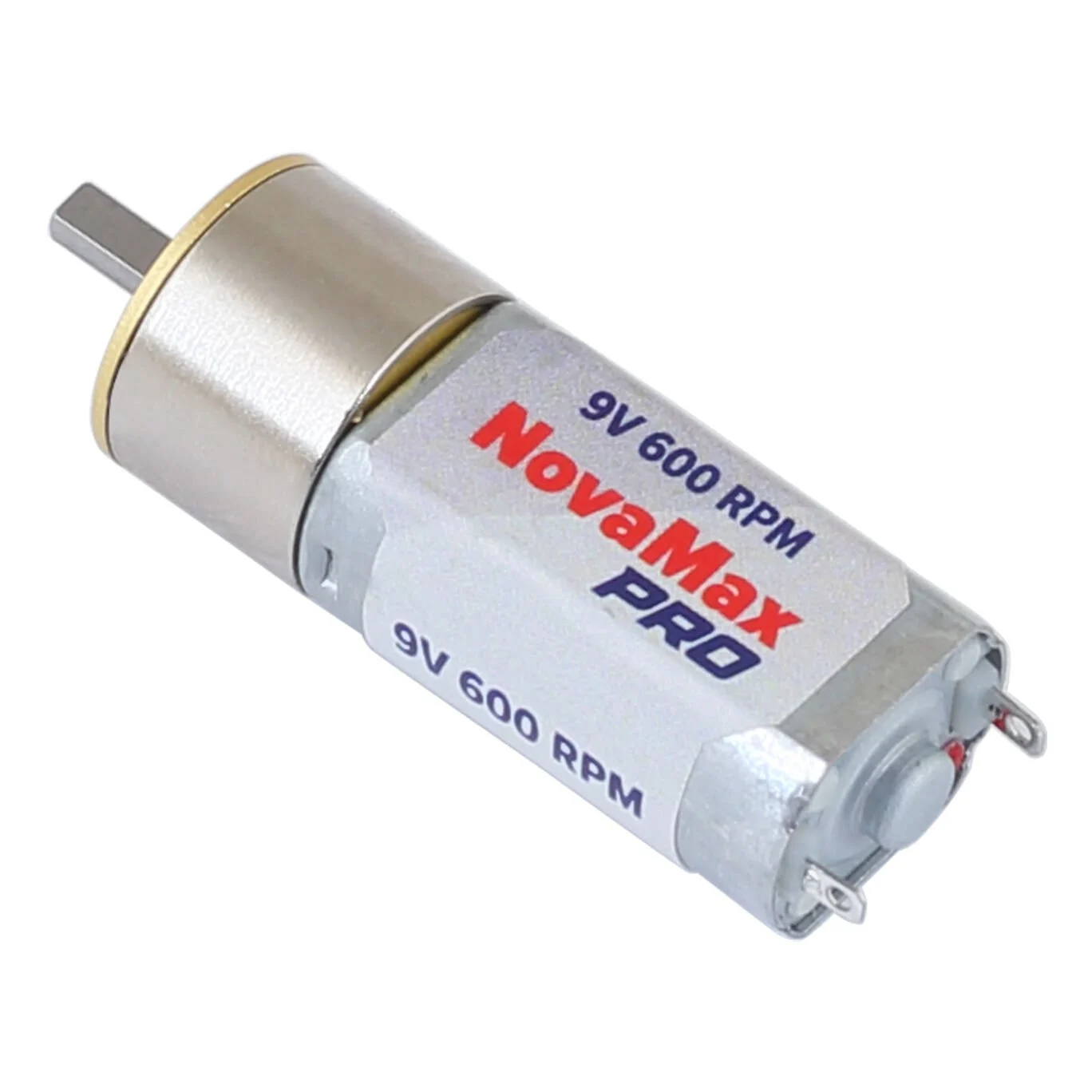

NovaMax Pro DC Motor – 9V 600 RPM (New Series with Enclosed Gearbox)
Specially developed for professional mini sumo robot projects and all robotic applications requiring high performance, the NovaMax Pro 9V 600 RPM DC Motor with Enclosed Gearbox offers maximum speed, high torque, and durability together for robot competitions.
Developed based on the success of the previous NovaMax series, this new Pro model provides longer service life and extra protection against impacts thanks to its enclosed gearbox structure. It is an unmatched motor solution especially for mini sumo robots.
It can be safely used not only in robot projects but also in all mechanical and electronic projects where torque and speed are simultaneously important. Its small size and lightweight structure provide a significant advantage in mini sumo robot design.
Note: This motor is ideal for aggressive mini sumo strategies thanks to its speed advantage. Its enclosed gearbox structure is suitable for long-duration competition use.
Why Choose the NovaMax Pro DC Motor (9V 600 RPM)?
- More resistant to dust, impact, and wear thanks to the enclosed gearbox system
- High acceleration and fast response time with 600 RPM speed at 9V
- Ideal speed–torque balance for mini sumo robots
- High manufacturing quality and stable performance thanks to the long motor body
- New series specially produced for robot competitions
- Provides ease during the robot design process
Technical Specifications
- Operating Voltage: 9 – 16 V
- Nominal Operating Voltage: 9 V
- Maximum Operating Voltage: 16 V
- Speed: 600 RPM (Revolutions per Minute) (at 9 V)
- No-load Current: ~180 mA
- Operating Current: ~350 mA
- Stall Current: ~6.5 A (at 9 V)
- Nominal Load Torque: ~3.6 kg·cm (at 9 V)
- Stall Torque: ~7.5 kg·cm (at 9 V)
- Motor Diameter: 16 mm
- Shaft Type: 3 mm D-shaft (center output)
- Shaft Length: 8 mm
- Overall Length (end to end): 48 mm
- Gearbox: Enclosed type metal gearbox
- Weight: ~26 g
- Application Area: Mini Sumo Robot (compliant with competition rules)
Important Recommendation

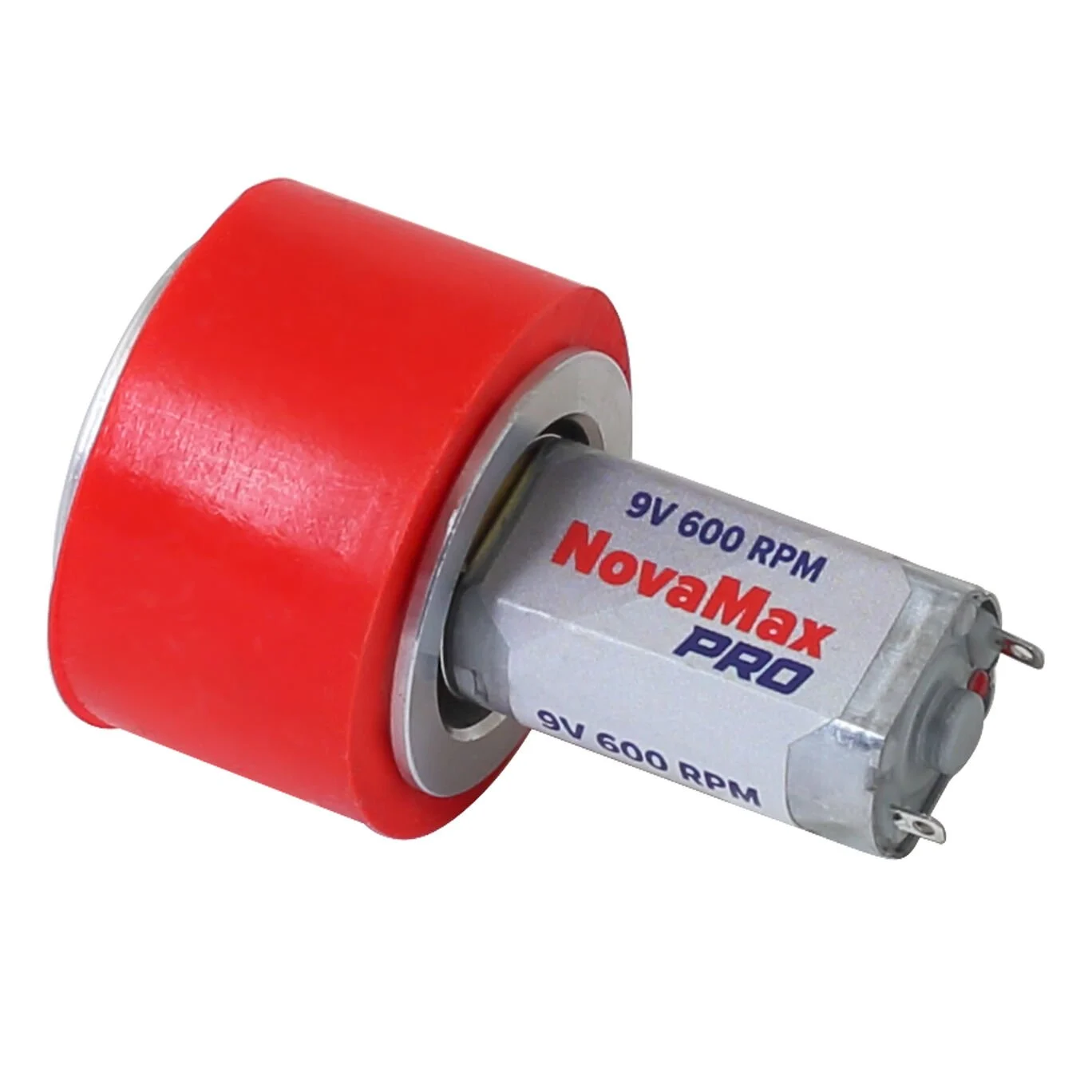

The use of the Bond Silicone Wheel Set with this motor is strongly recommended. Due to high speed and acceleration, it provides maximum traction and significantly increases your mini sumo performance.
