VL6180X Time-of-Flight Distance Sensor

0 Comment
Brand/Manufacturer:Pololu
SKU:126
Stock:Out of stock
$ 12.00
Contact
Time-of-Flight Distance Sensor emits pulses of infrared laser light and precisely times how long they take to reach the nearest object and reflect back to the sensor.

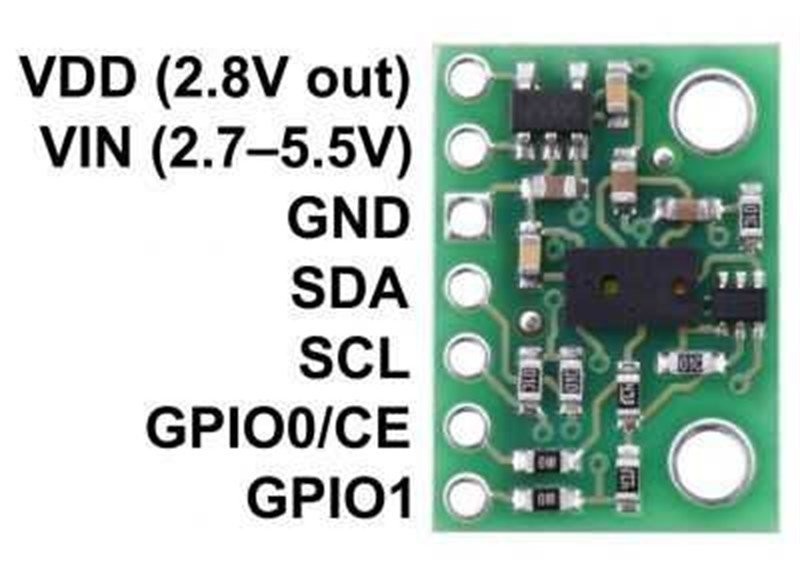

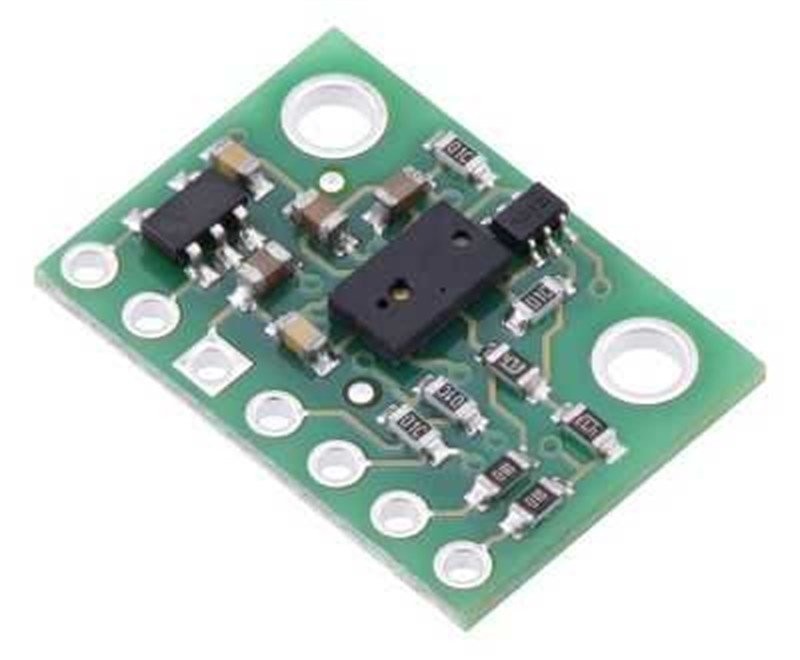

This sensor is a carrier/breakout board for ST’s VL6180X proximity and ambient light sensor, which measures distance with 1 mm resolution over a detection range of 0 cm to 10 cm or greater. The VL6180X uses time-of-flight measurements of infrared pulses to determine the range to a target object, allowing it to give accurate results independent of the target’s color and surface. Distance and ambient light level measurements can be read through a digital I²C interface. The board has a 2.8 V linear regulator and integrated level-shifters that allow it to work over an input voltage range of 2.7 V to 5.5 V, and the 0.1″ pin spacing makes it easy to use with standard solderless breadboards and 0.1″ perfboards.

Features:
  • Dimensions: 13 mm x 18 mm x 2 mm
  • Weight (Without Header Pins): 0.5gr
  • Operating Voltage: 2.7-5.5V
  • Operating Current: 5mA
  • Output Format (I2C): 8-bit distance reading, 16-bit ambient light reading
  • Distance Measuring Range: 0-100mm
VL6180X Datasheet
