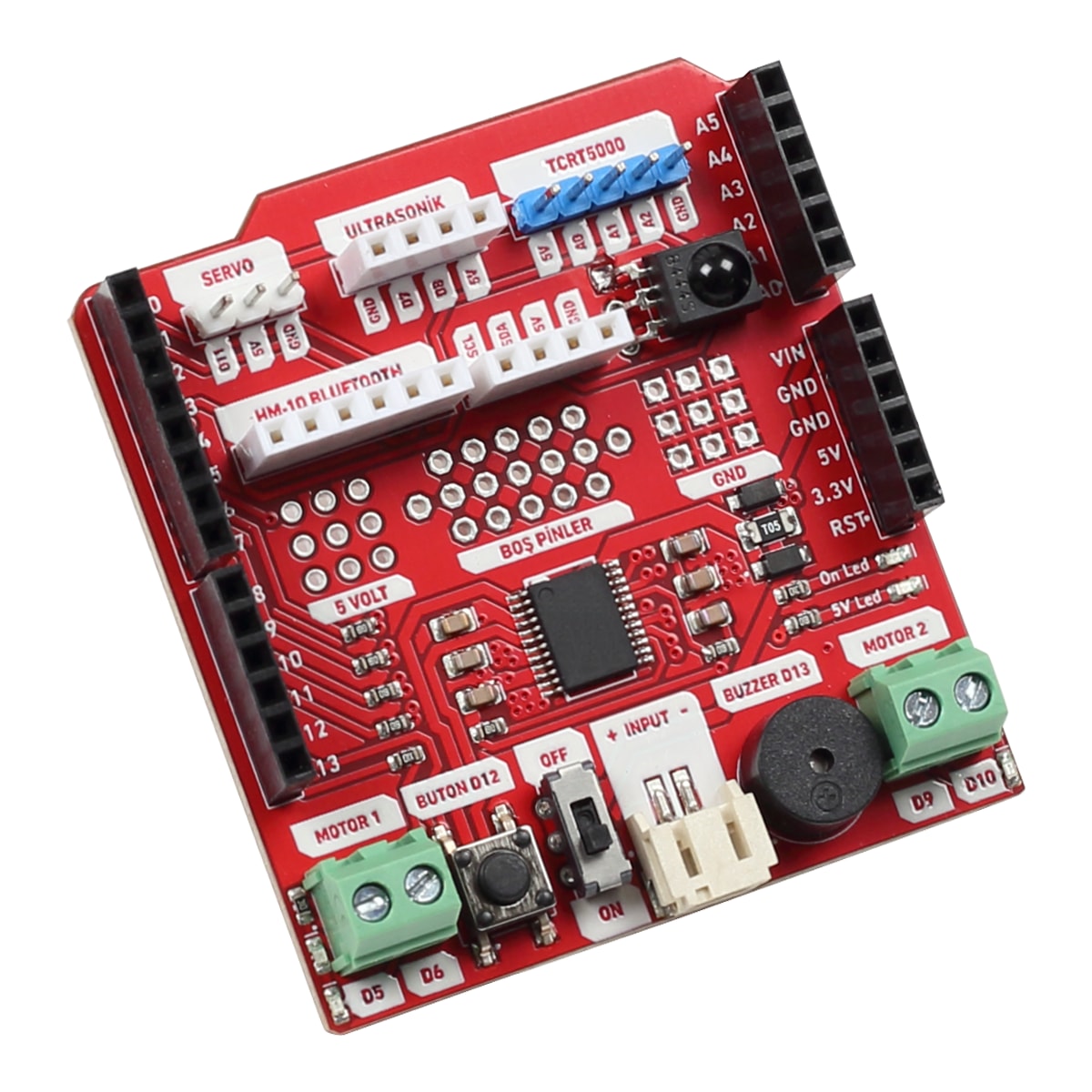

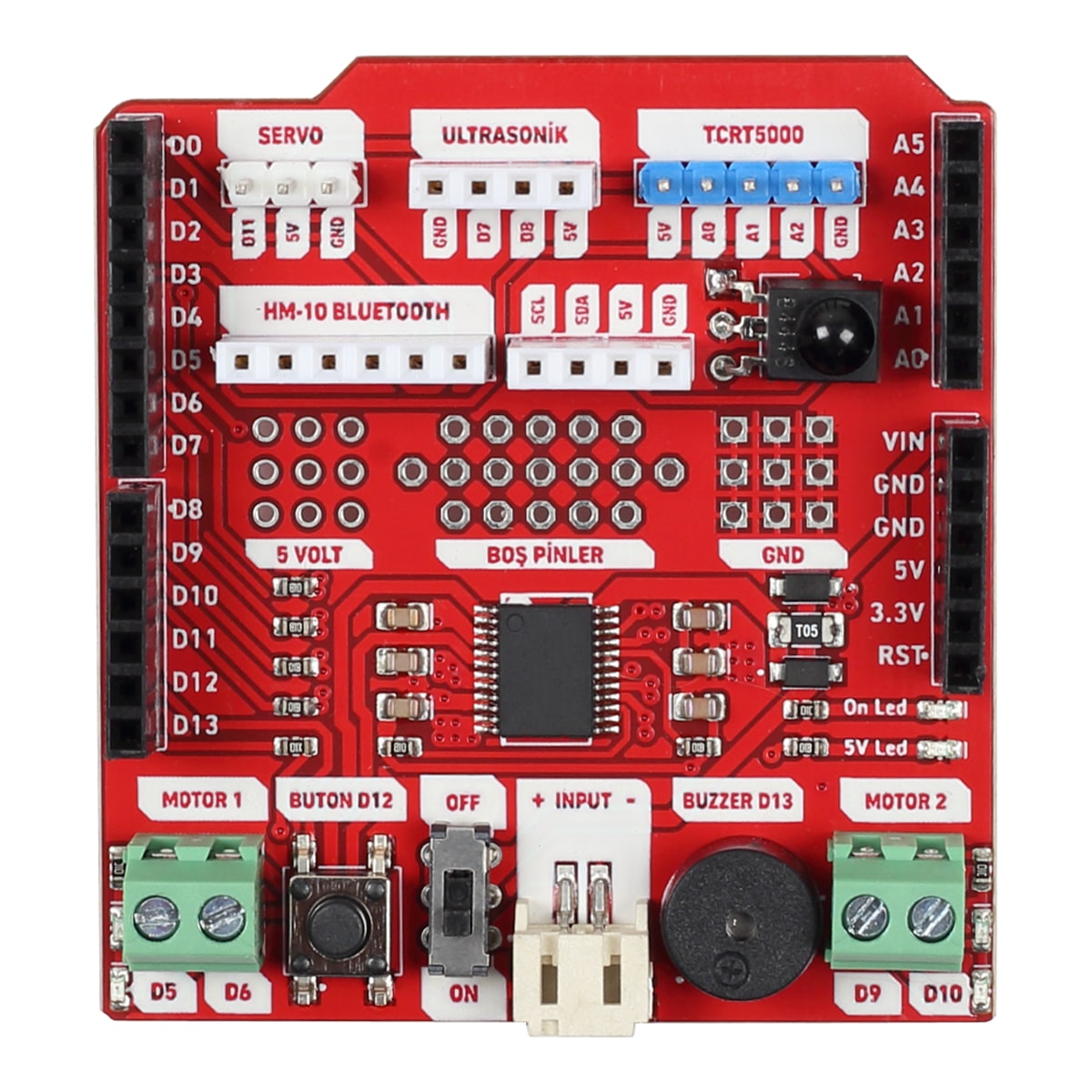

UnoDrive Motor Driver Board
The UnoDrive Motor Driver Board is specially developed for mobile robot platforms, transforming the ease of use of Arduino Uno into an advanced motor driver solution.
This board, which offers dedicated connections for sensors and stands out with its wide connectivity options, is a practical and powerful motor driver solution developed for Arduino Uno.
With a 5–12V flexible power input, it works directly with different motor options.
The ON / OFF switch allows the circuit to be easily turned on or off, while reverse voltage protection ensures safe connections.

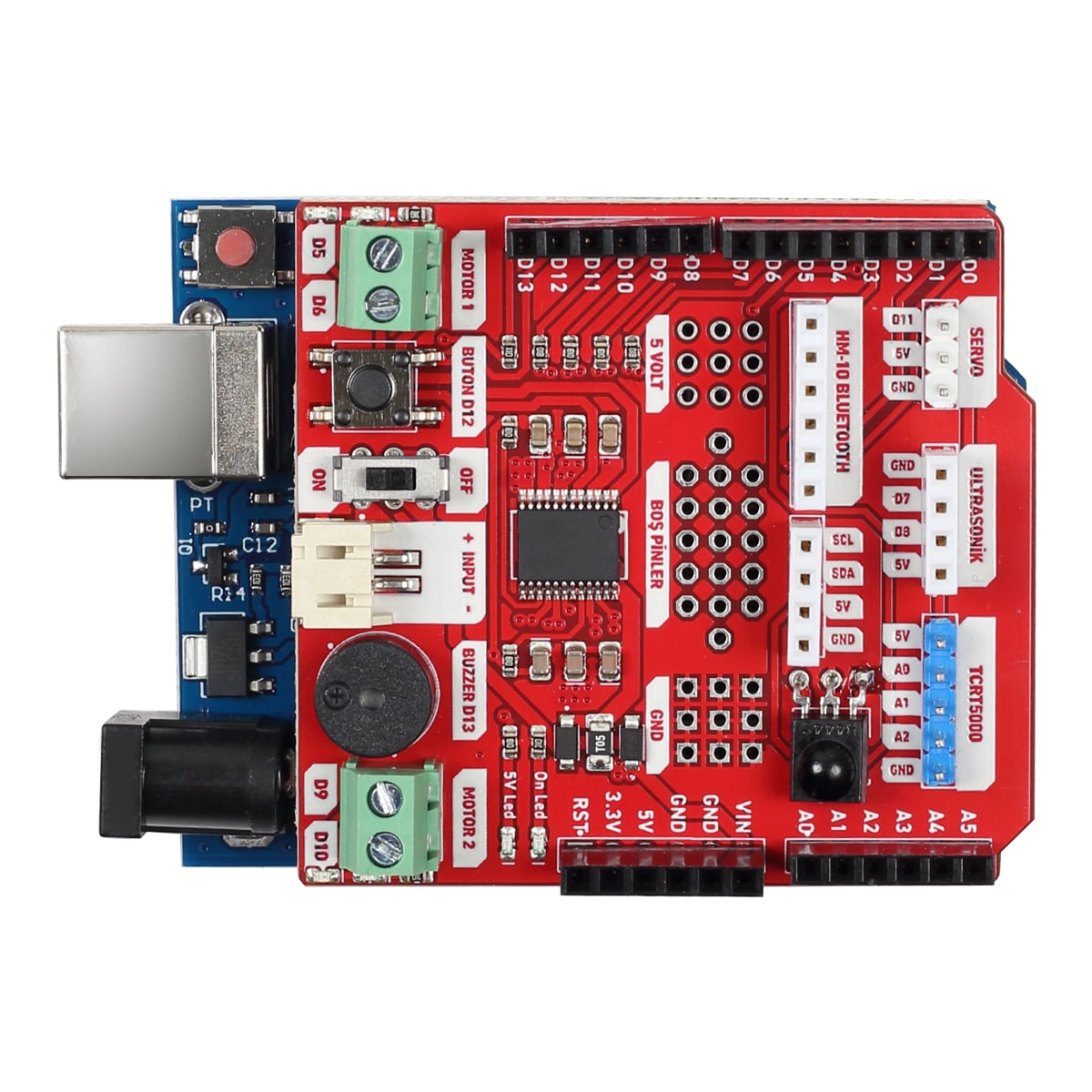

It mounts directly onto Arduino Uno via long female header pins, transferring Arduino Uno’s signal pins to the top layer.
2 x 3A motor outputs provide strong and stable drive for special serial motors used in advanced projects.
With motor direction LEDs, motor connections and direction can be easily understood, and motor operation can be monitored remotely.
With the user button, 5V buzzer, and IR receiver on the board, remote-controlled robot projects can be implemented without external wiring.
Triple line sensor, servo motor, and ultrasonic sensor ports:
Provides quick and organized connections for line-following, obstacle-avoiding, maze-solving, and path-tracking robot projects.
Projects can be easily realized using the example software provided, without wiring confusion.
HM-10 Bluetooth can be connected directly, making it fully compatible with phone-controlled robot projects.
Empty pins and power pins allow new sensors and components to be added to the board.
Free spaces on the board allow breadboard-like usage, making it easy to expand projects.
Designed to work together with 18650 battery boards produced by Sumozade.
Technical Specifications
- Supported Boards: Arduino Uno and all Arduino boards with compatible pin layout
- Power Input: 5–12V
- Protection: Reverse voltage protection
- Motor Driver Features (2 channels): 3A
- Indicator LEDs: Motor direction and power
- Dimensions: 52 × 58 mm
- Height: 20 mm
- Weight: 20 g
Built-in Components
- ON / OFF power switch
- User button
- 5V buzzer
- TSOP4038 IR receiver
Dedicated Connection Ports
- Triple line sensor port
- Ultrasonic sensor port
- Servo motor port
- HM-10 Bluetooth port and I²C port
