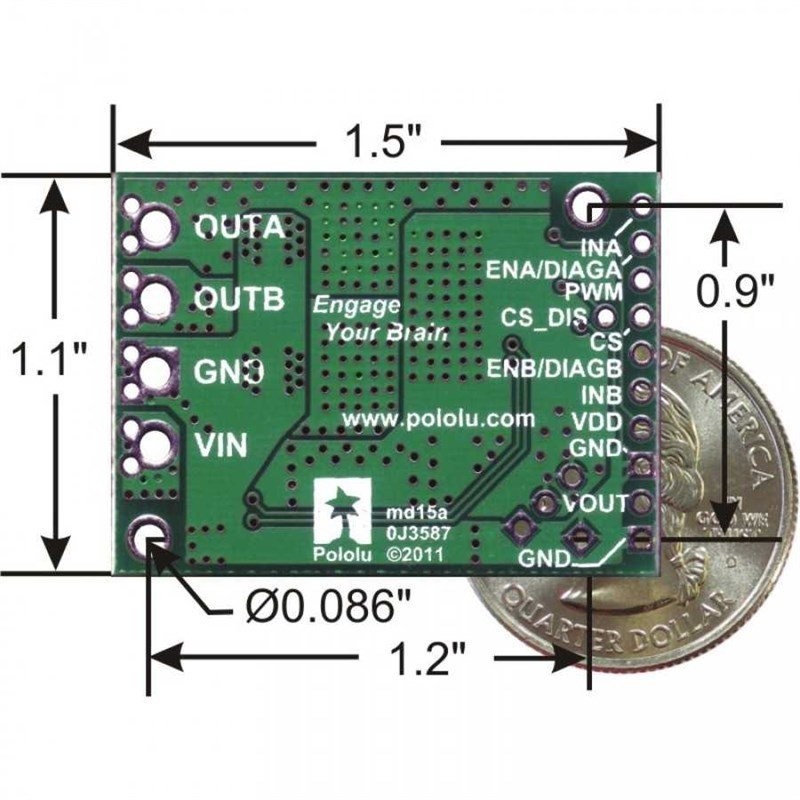

Pololu 12A, 5.5 - 24V Single Motor Controller

0 Comment
Brand/Manufacturer:Pololu
SKU:370
Stock:Out of stock
$ 27.00
Contact
The Pololu 12A, 5.5 - 24V Single Motor Controller operates from 5.5 to 24 V and can deliver a continuous 12 A (30 A peak).

 It works with 2.5 to 5 V logic levels, supports ultrasonic (up to 20 kHz) PWM, and features current sense feedback (an analog voltage proportional to the motor current). Along with built-in protection against reverse-voltage, over-voltage, under-voltage, over-temperature, and over-current, these features make this product a great general-purpose motor driver. It includes a 47 uF electrolytic power capacitor, and there is room to add additional capacitors.

• Motor channels: 1
• Maximum PWM frequency: 20 kHz
• Operating voltage: 5.5 V - 24 V
• Continuous output current per channel: 12 A
• Motor driver: VNH5019
