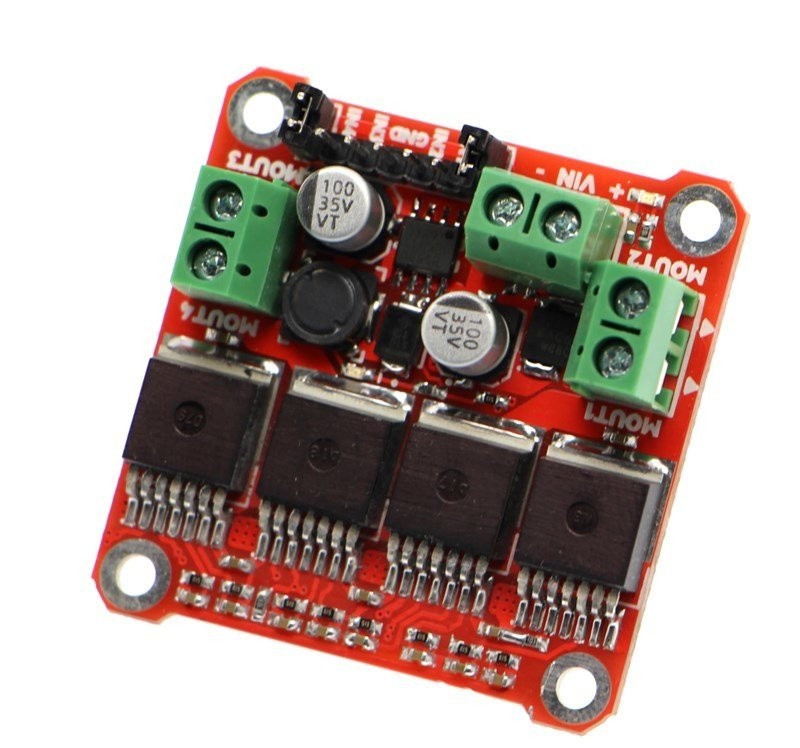

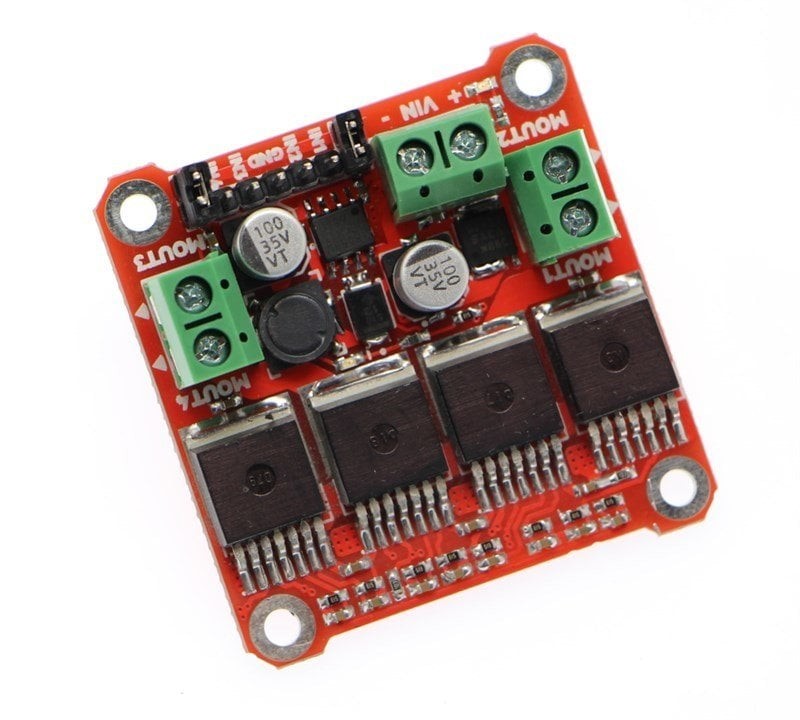

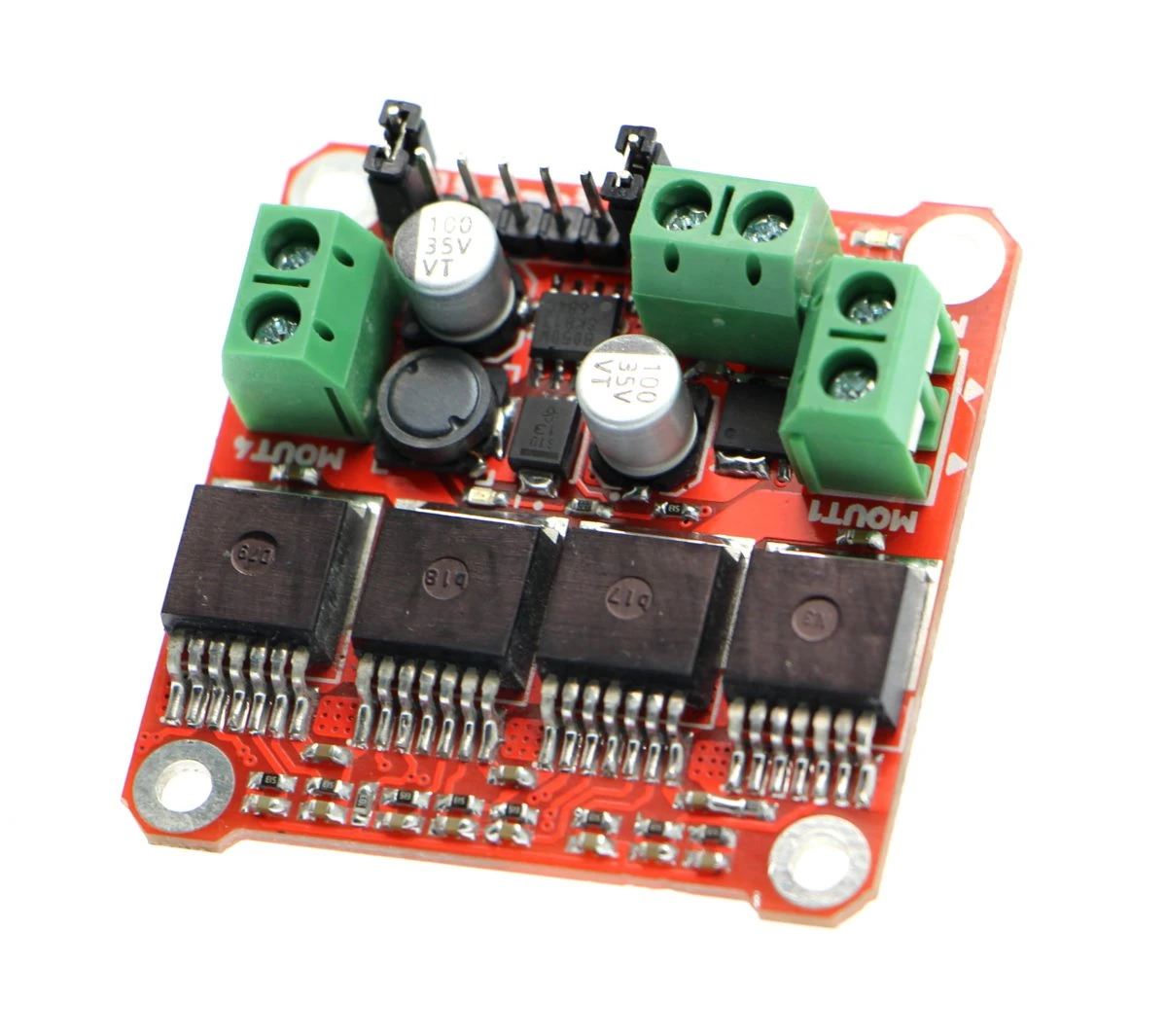

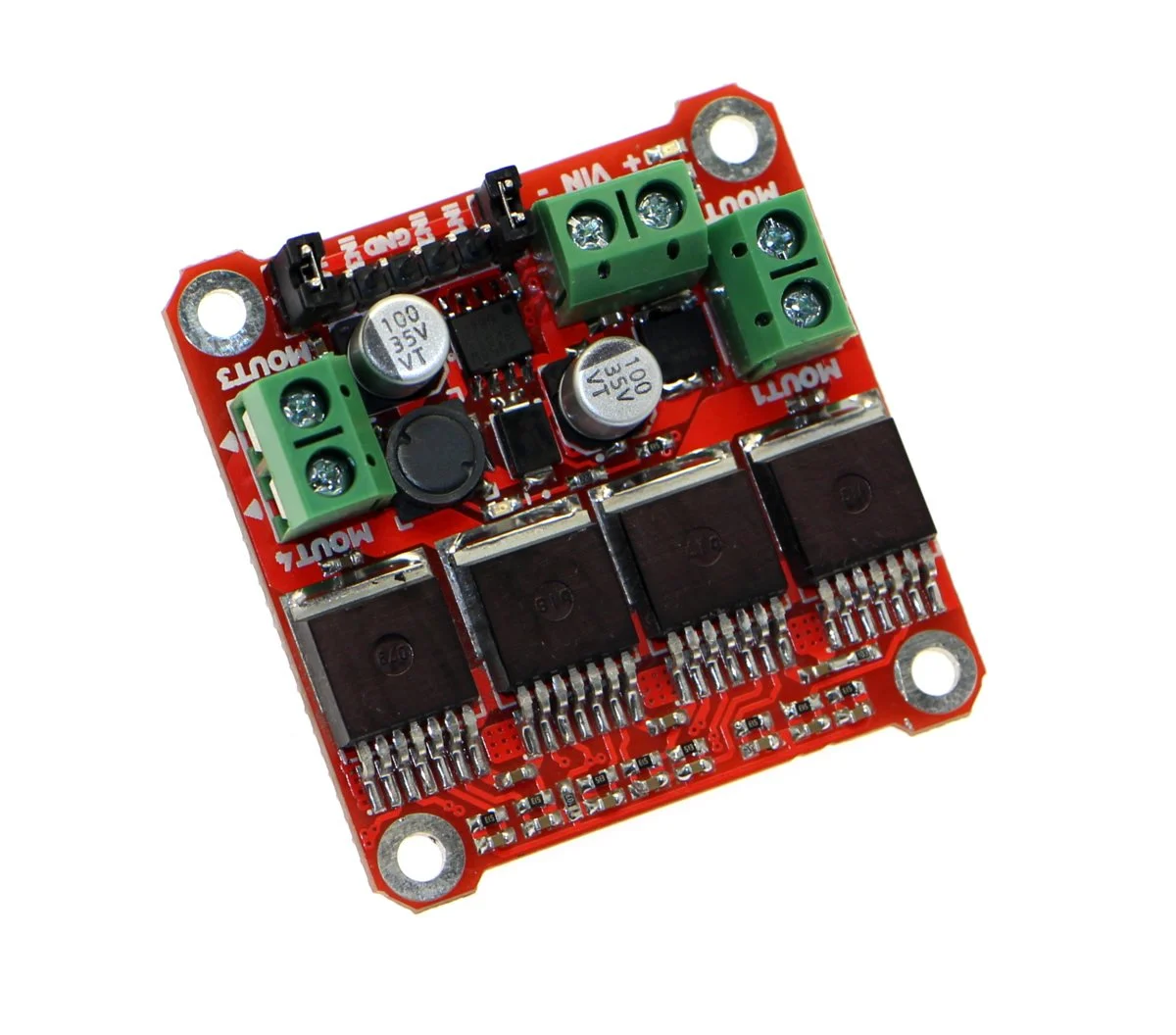

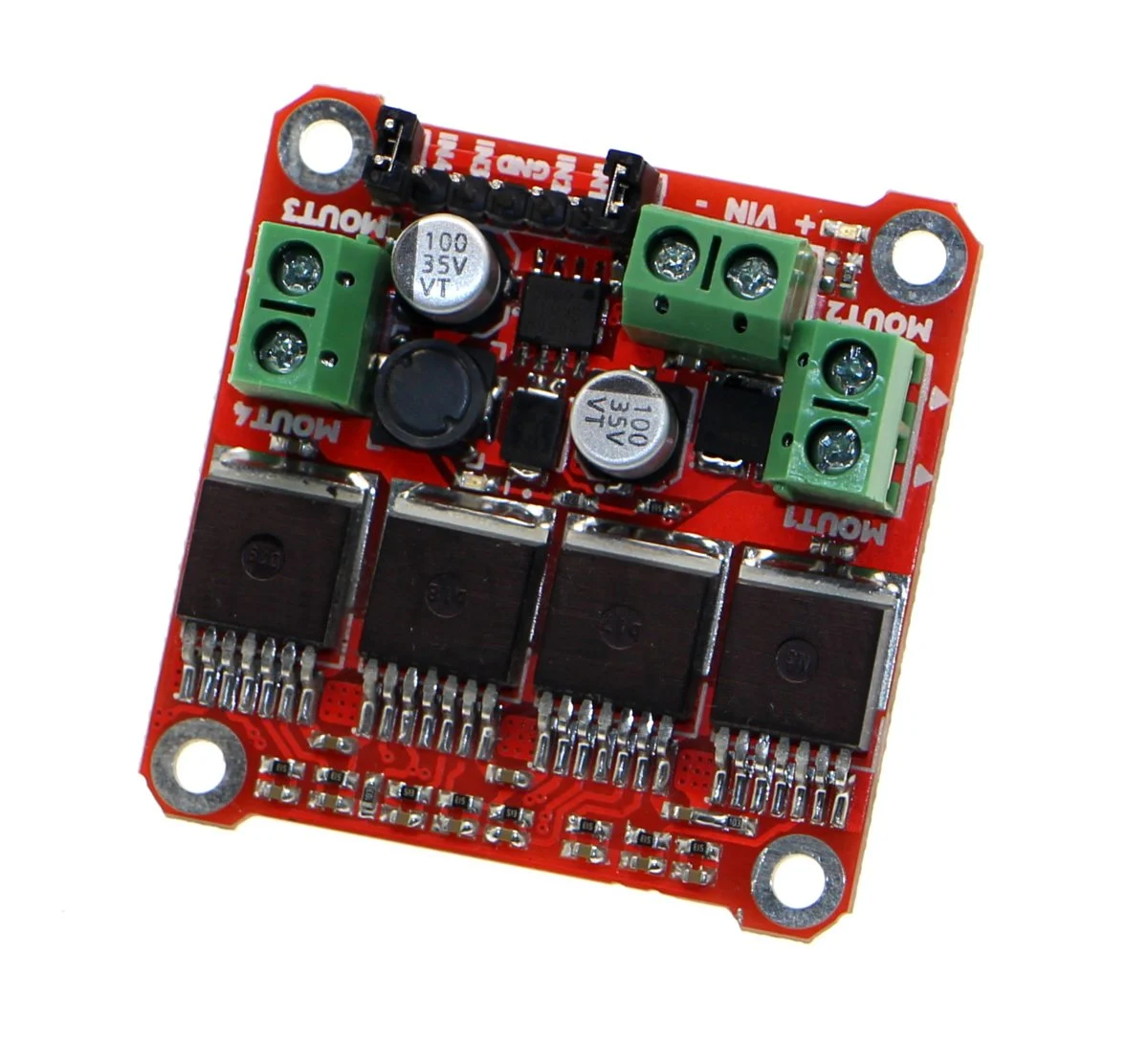

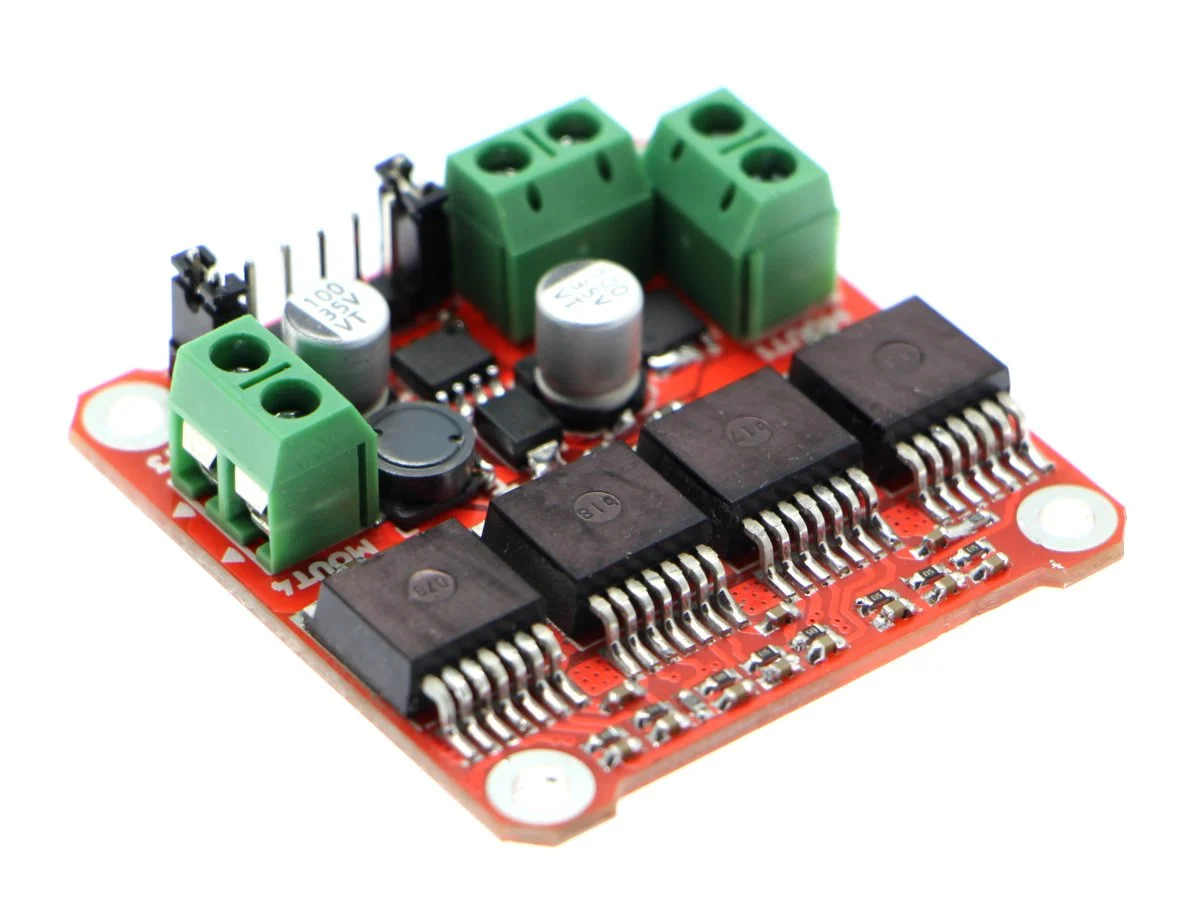

EVO 40 Dual DC Brushed Motor Driver 8-33V 40A

This is an advanced motor driver board designed and produced by our team to control your high power DC motors operating in the range of 8-33 Volt 40A.

There are 4 Half-bridge motor driver integrated on the board. With this circuit, you can easily use dc motors with higher voltage and current.

 In your robotics projects (sumo robot, terrain robot, mars reconnaissance robot, etc.), you can use the circuit that you can use in your R & D works with microcontroller, arduino and all development cards.



Technical specifications:

Number of Motor Channels: 2

Minimum Operating Voltage: 8V

Maximum Operating Voltage: 33V

Continuous Output Current: 40A

Peak Output Current: 98 A

Maximum PWM Frequency: 25 kHz



Dimensions: 47 x 45 cm

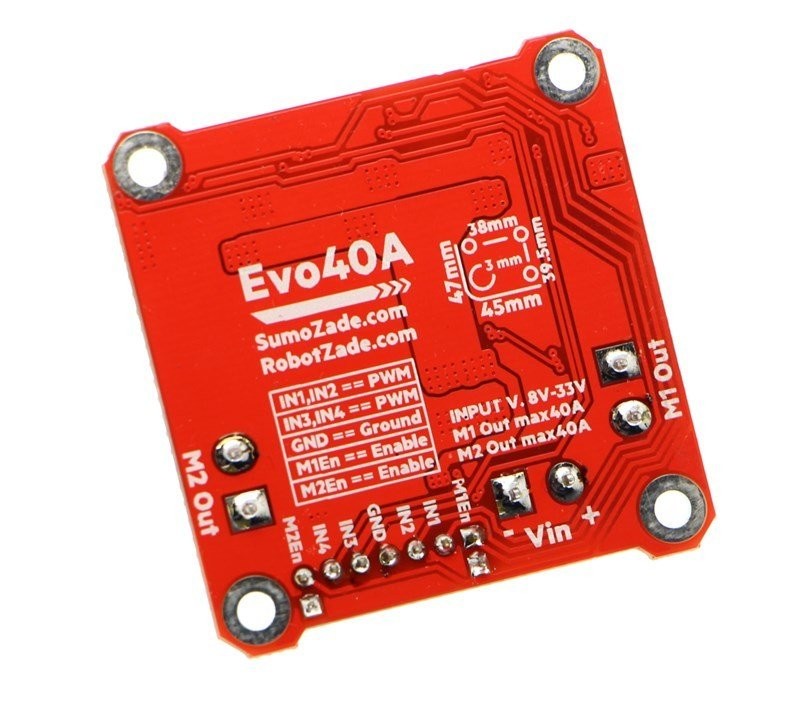

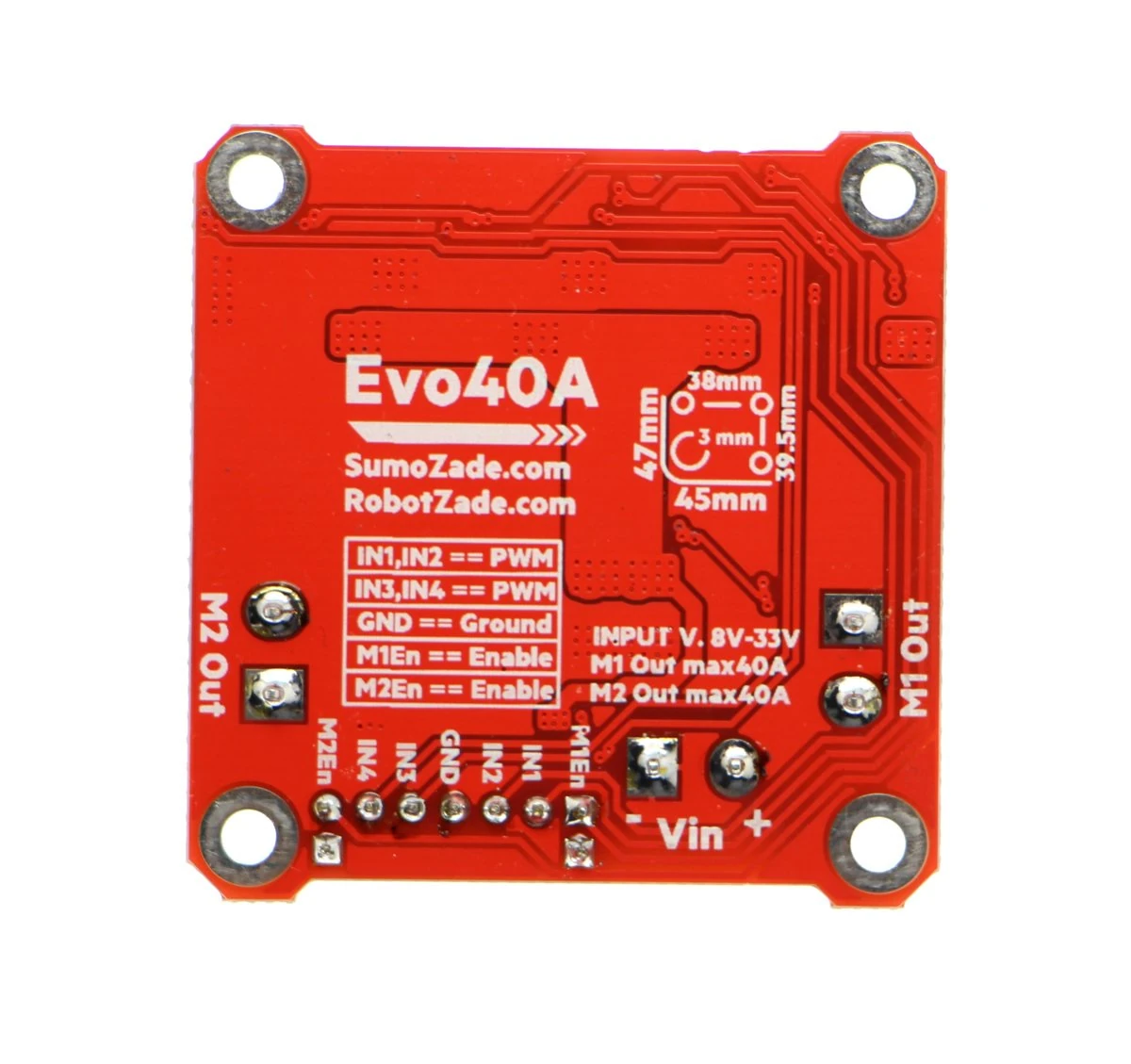

Connections:

Vin: Supply Voltage (Until to 33 V)

GND: Ground Pin

Mout1: Motor 1 (+) Pin

Mout2: Motor 1 (-) Pin

Mout3: Motor 2 (+) Pin

Mout4: Motor 2 (-) Pin



Control Pins;

GND: Ground pin

IN1: M1A control pin (M1 PWM1)

IN2: M1B control pin (M1 PWM2)

IN3: M2A control pin (M2 PWM1)

IN3: M2B control pin (M2 PWM2)

Enable pins Connected to 5v directly with jumper.

* Logic signal is maximum 5 Volts.





 Truth Tables
 Mx PWM1Mx PWM2 Mx EnableMx Output
 HIGHLOW HIGH FORWARD
 LOWHIGH HIGH BACKWARD
 HIGHHIGHHIGH BRAKE
LOWLOW HIGHBRAKE
XLOW SLEEP
