Bipolar/Unipolar NEMA 17 200 Stepper 42x48mm 4V Step Motor

0 Comment
Brand/Manufacturer:Pololu
SKU:660
Stock:Out of stock
$ 20.00
Contact

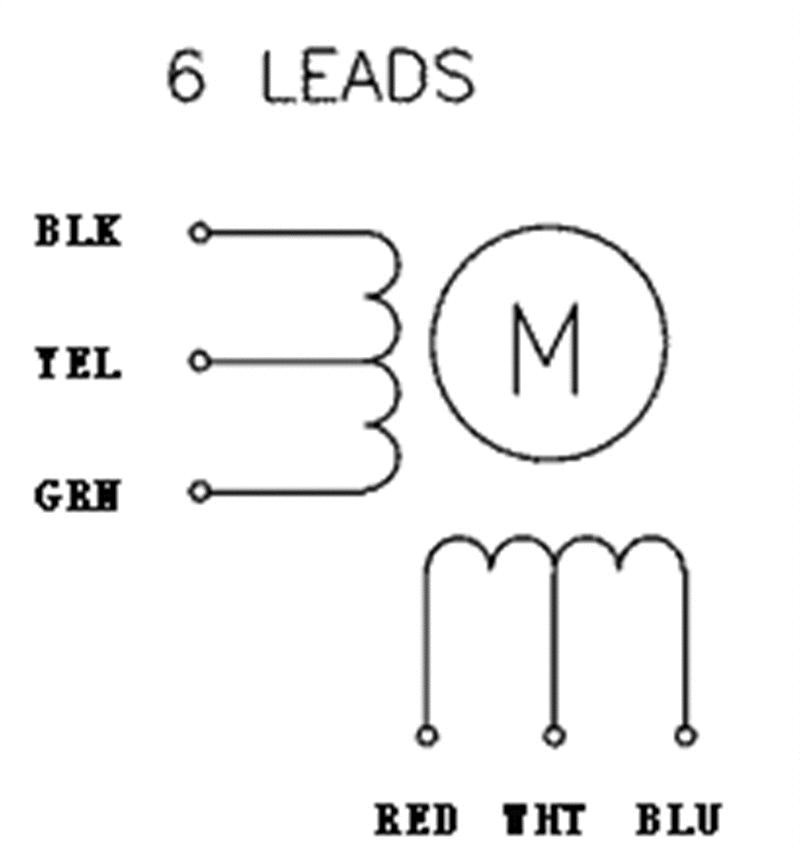

This hybrid stepping motor has a 1.8° step angle (200 steps/revolution). Each phase draws 1.2 A at 4 V, allowing for a holding torque of 3.2 kg-cm (44 oz-in). The motor has six color-coded wires terminated with bare leads that allow it to be controlled by both unipolar and bipolar stepper motor drivers . When used with a unipolar stepper motor driver, all six leads are used. When used with a bipolar stepper motor driver, the center-tap yellow and white wires can be left disconnected (the red-blue pair gives access to one coil and the black-green pair gives access to the other coil). We recommend using it as a bipolar stepper motor.

Specifications

  • Size: 42.3 mm square × 48 mm, not including the shaft (NEMA 17)
  • Weight: 350 g (13 oz)
  • Shaft diameter: 5 mm “D”
  • Steps per revolution: 200
  • Current rating: 1.2 A per coil
  • Voltage rating: 4 V
  • Resistance: 3.3 Ω per coil
  • Holding torque: 3.2 kg-cm (44 oz-in)
  • Inductance: 2.8 mH per coil
  • Output shaft supported by two ball bearings
