5:1 Micro Metal Gearmotor HP 6V 6000Rpm

0 Comment
Brand/Manufacturer:Pololu
SKU:T422
Stock:Out of stock
$ 16.90
Contact
This motor is a member of Pololu High-Power Series. This micro gear motor can bes used at your projects with it's high power feature.

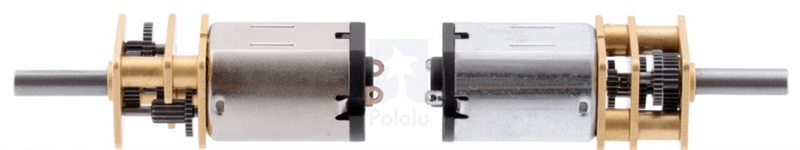

This gearmotor is a miniature high-power, 6 V brushed DC motor with a 4.995:1 metal gearbox. It has a cross section of 10 × 12 mm, and the D-shaped gearbox output shaft is 9 mm long and 3 mm in diameter.

Key specs at 6 V: 6000 RPM and 120 mA with no load, 2 oz-in (0.1 kg-cm) and 1.6 A at stall.

Dimensions
  • Size: 10 × 12 × 26 mm1
  • Weight: 9.5 g
  • Shaft diameter: 3 mm2
General specifications
  • Gear ratio: 4.995:1
  • Free-run speed @ 6V: 6000 rpm
  • Free-run current @ 6V: 120 mA
  • Stall current @ 6V: 1600 mA
  • Stall torque @ 6V: 2 oz·in
  • Extended motor shaft?: N
  • Motor type: 1.6A stall @ 6V (HP 6V)
