It is very suitable for all projects where speed and torque are needed.

You can use it in various robot projects such as obstacle avoidance and off-road robots.

It is a suitable motor for your robots and various projects. It is suitable for horizontal use cause of the L type gear. They are the most preferred motors in industrial projects and robotic projects.

It is a 12 Volt Geared DC Motor. It is our recommendation due to its strong structure. You can increase the number of revolutions/(rpm) and power by applying high voltage. It is suitable for use in projects requiring speed and torque. You can use it in industrial applications and machines.

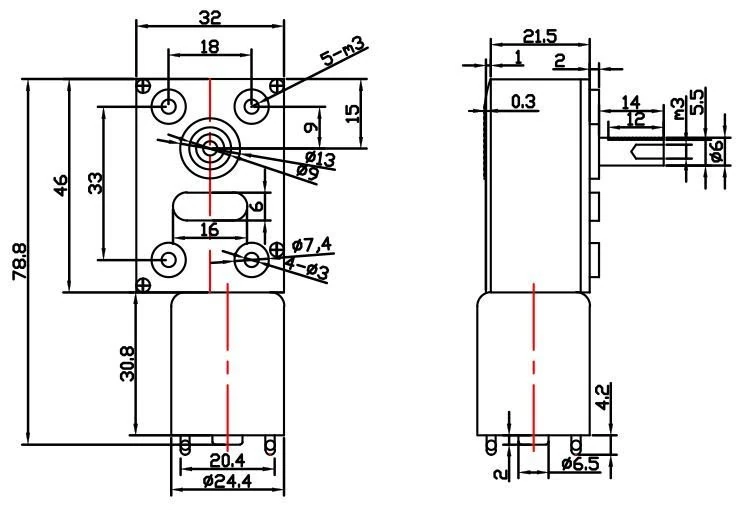

Specifications:

-Working Voltage: 12V

-Speed: 90 Rpm

-Motor Diameter: 24mm

-Gear Diameter: Rectangular 47mm x 32mm

-Shaft: 6mm D Shaft

-Shaft Length: 20mm

-End to End Length: 79mm

-Weight: 152g

MOTOR NAME	MOTOR SPEED	OPERATING CURRENT	STRAIN CURRENT	TORQUE/FORCE
12V 5 RPM	5 rev / min	45 mA	2,35 Ampere	9,3 kg-cm
12V 10 RPM	10 rev / min	55 mA	2,20 Ampere	7,7 kg-cm
12V 30 RPM	30 rev / min	65 mA	2,10 Ampere	6,5 kg-cm
12V 50 RPM	50 rev / min	70 mA	1,95 Ampere	6,3 kg-cm
12V 55 RPM	55 rev / min	90 mA	1,90 Ampere	6,2 kg-cm
12V 90 RPM	90 rev / min	110 mA	1,85 Ampere	5,8 kg-cm
12V 100 RPM	100 rev / min	120 mA	1,80 Ampere	5,5 kg-cm
12V 120 RPM	120 rev / min	135 mA	1,70 Ampere	4,7 kg-cm
12V 200 RPM	200 rev / min	140 mA	1,65 Ampere	4,1 kg-cm
12V 300 RPM	300 rev / min	165 mA	1,60 Ampere	3,7 kg-cm
12V 500 RPM	500 rev / min	190 mA	1,45 Ampere	13,8 kg-cm
24V 10 RPM	10 rev / min	90 mA	2,95 Ampere	11,5 kg-cm
24V 15 RPM	15 rev / min	120 mA	2,90 Ampere	11 kg-cm
24V 60 RPM	60 rev / min	130 mA	2,85 Ampere	10,2 kg-cm
24V 100 RPM	100 rev / min	145 mA	2,85 Ampere	9,7 kg-cm
24V 110 RPM	110 rev / min	180 mA	2,65 Ampere	8,8 kg-cm
24V 180 RPM	180 rev / min	220 mA	2,60 Ampere	8,5 kg-cm
24V 200 RPM	200 rev / min	265 mA	2,50 Ampere	8,3 kg-cm
24V 400 RPM	400 rev / min	280 mA	2,40 Ampere	7,5 kg-cm
24V 600 RPM	600 rev / min	335 mA	2,35 Ampere	6 kg-cm
24V 1000 RPM	1000 rev / min	395 mA	2,20 Ampere	5,5 kg-cm

12V 90Rpm Worm Gear Motor
