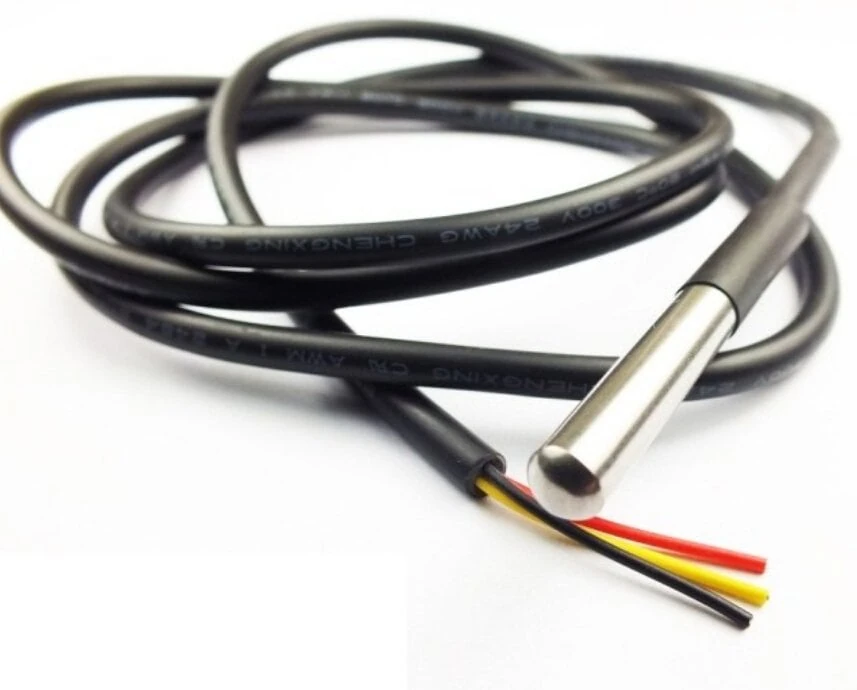

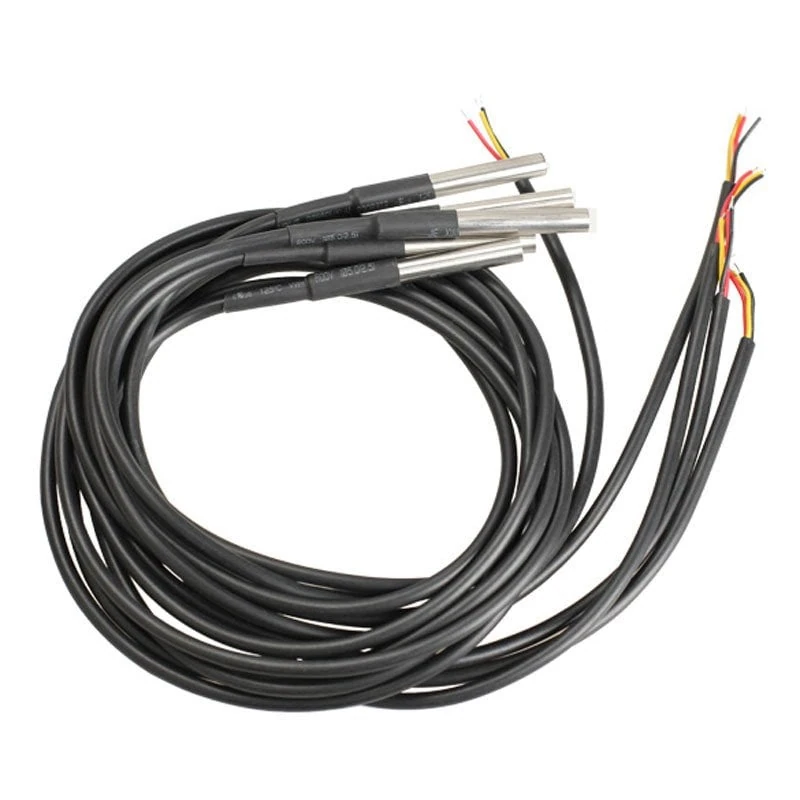

The DS18B20 sensor is a waterproof model. Since it is a digital sensor, it can measure temperature over long distances using its 1-meter cable without any data loss during transmission.
It supports 9-bit or configurable 12-bit resolution via a single-wire interface. This sensor is suitable for measuring temperature in buildings, equipment, machinery, and liquid tanks.
Features:
- Operating Voltage: 3.0V–5.0V
- Temperature Range: -10°C to 80°C with ±0.5°C accuracy
- Selectable Resolution: 9-bit or 12-bit
- Communication: Single digital pin via 1-Wire interface
- Temperature alarm function available
- Response Time: Less than 750 ms
- Probe Material: Stainless steel casing (6 mm diameter, 30 mm length)
- Cable Length: 1 meter

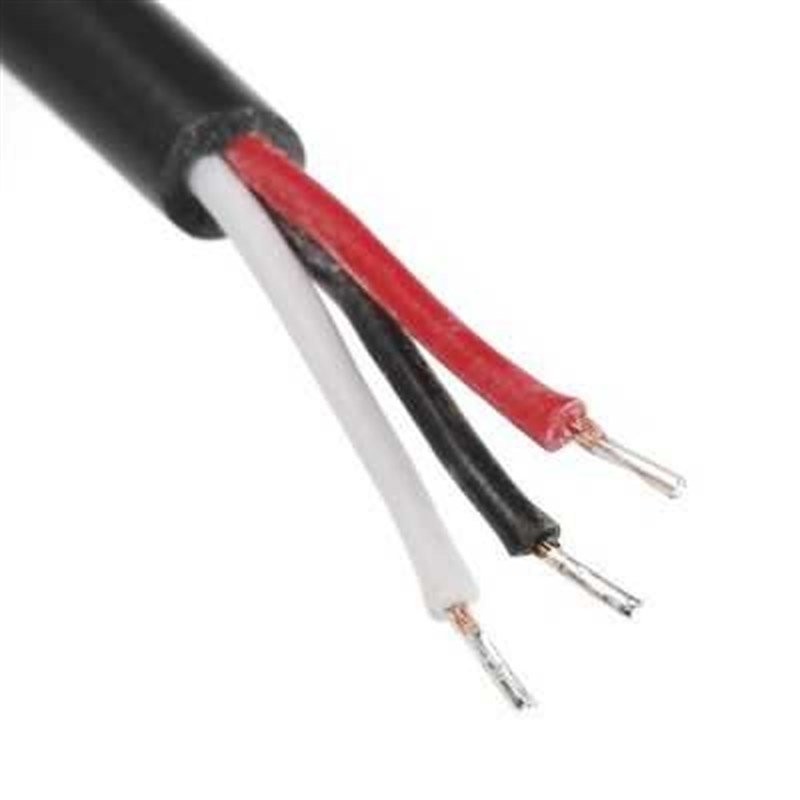

Cable Connections:
- Red Wire: VCC (+)
- Black Wire: GND (-)
- White Wire: DATA Signal
