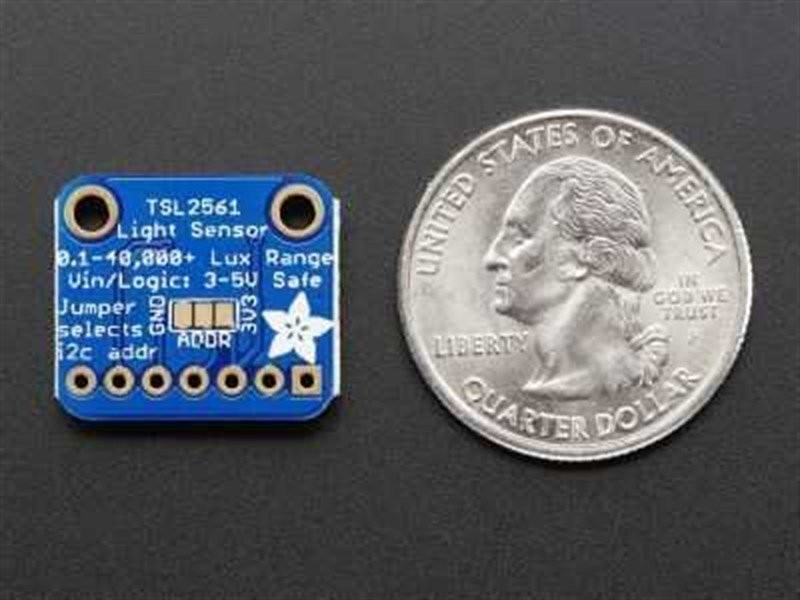

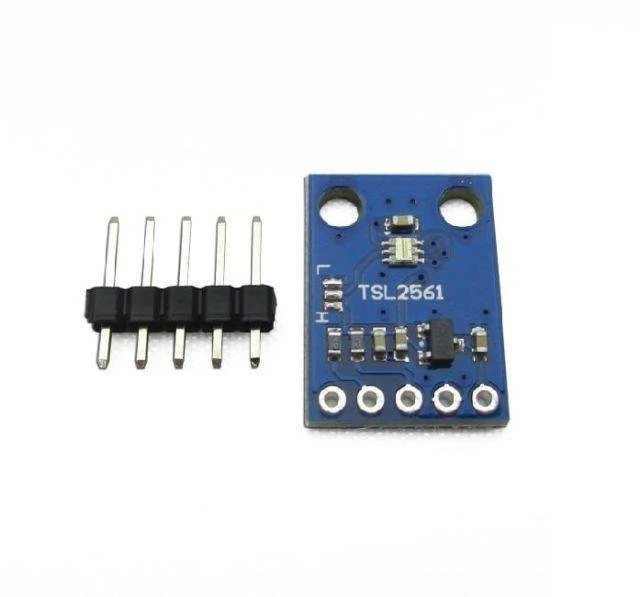

TSL2561 Digital Luminosity / Lux / Light Sensor Module
0 Comment
SKU:
Stock:
$ 7.00
More:Light & Color
Unlike simple sensors, the TSL2561 can perform measurements close to the human eye response, detecting both infrared and visible light. It features an I2C interface, can be powered with 3V, and requires only 0.6 mA supply current. It has a wide detection range of 0.1 – 40,000 Lux. The sensor dimensions are 17 x 13 mm.
Technical Specifications:
- Response approximately similar to the human eye
- High precision measurement capability
- Operating temperature: -30 to 80 °C
- Dynamic range: 0.1 – 40,000 Lux
- Operating voltage: 2.7 – 3.6V
- I2C address: Selectable via solder jumpers (0x39, 0x29, and 0x49)
