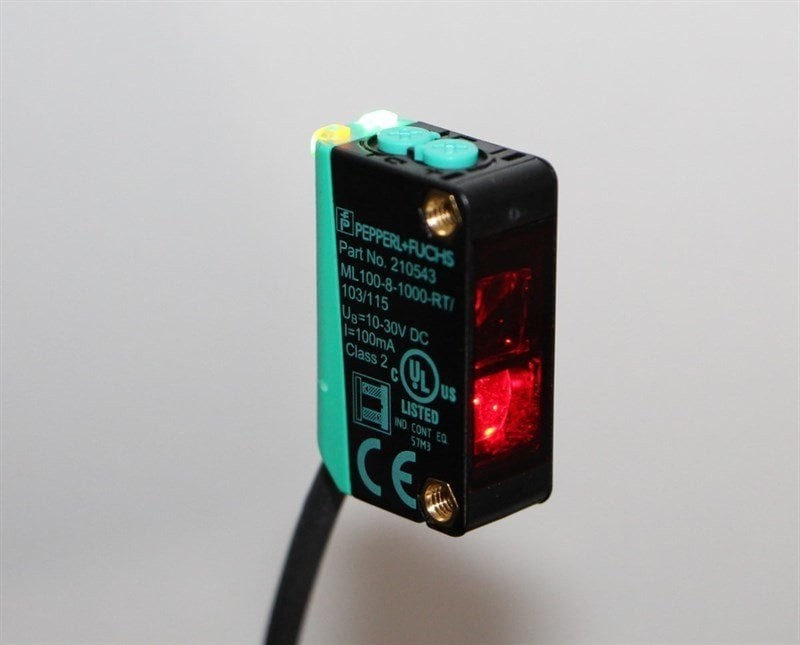

Pepperl Fuchs ML100-8-1000 infrared Object Sensor

It is a Diffuse mode sensor with adjustable until 1000 mm detection range, it has red light.





Technical Specifications:

Operating voltage: 10-30 V DC

Switching type The switching type of the sensor is adjustable. The default setting is: light on

Signal output 1 PNP output, short-circuit protected, reverse polarity protected, open collector.

Detection range 0 ... 1000 mm adjustable.

Light source LED.

Light type modulated visible red light.

Connection 2 m fixed cable;

<ul open="" sans",="" sans-serif;"="" style="border: 0px; font-size: 13px; margin-right: 1.5em; margin-bottom: 1.5em; padding-left: 2em; list-style: disc; color: rgb(1, 1, 1); font-family: "Open Sans", sans-serif;">

• Brown : + 10-30VDC ( VCC )
• Blue : - ( GND )
• Black : Signal  Output
