4K Multi Line Sensor (Analog)

0 Comment
Brand/Manufacturer:Sumozade
SKU:T865
Stock:Out of stock
₺ 358.80
Contact

Infrared 4K Multi Line Sensor Card is designed and manufactured by our team specially for line tracking robots.

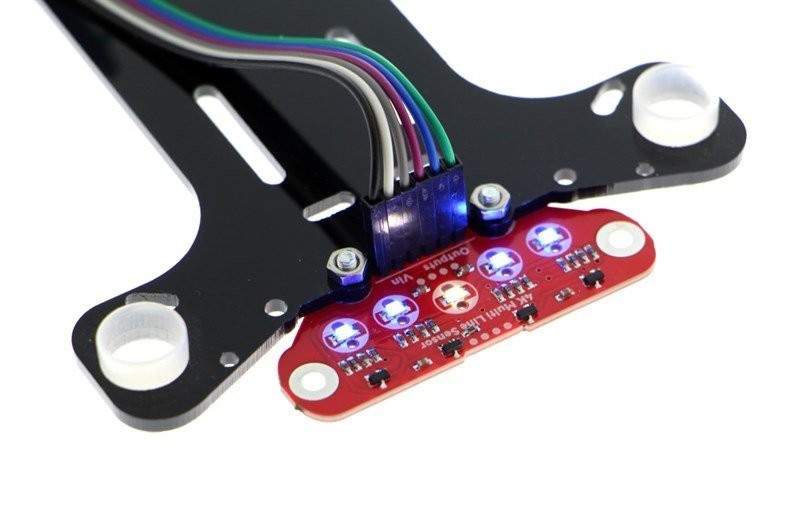

It has 4 optical infrared sensors that you can easily use in your robots that follow the line. There are 4 screw holes for simple mounting on all robot housings.






Technical specifications:

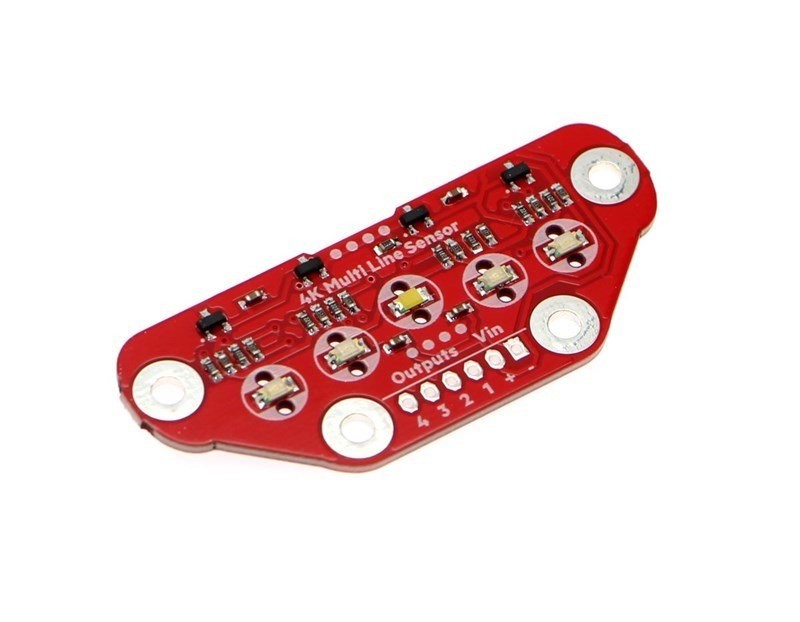

  • There are 4 output pins and 2 power pins.
  • These sensors transmit the information from the line in an analogous way from 4 pins to your processor.
  • It transmits information between white 0-100 and black between 900-1023.
  • It works in all colors and is compatible with the whole arduino family.

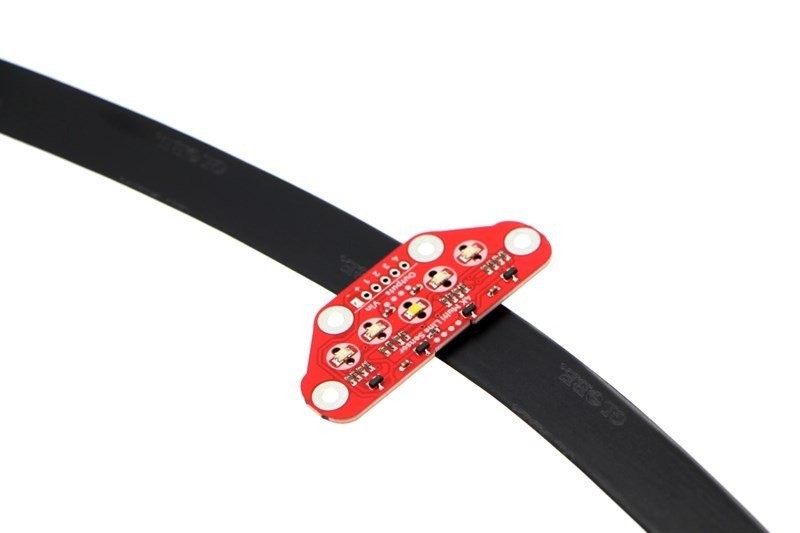

  • Sensor visibility range from 1mm to 10mm. (More sensitive and stable than many sensors)
  • There are 4 blue color leds and 1 white power led which change according to color information.
  • Operating voltage is between 3.3v - 5v.
  • The sensors are not damaged in reverse voltage or any short circuit.
