Description:

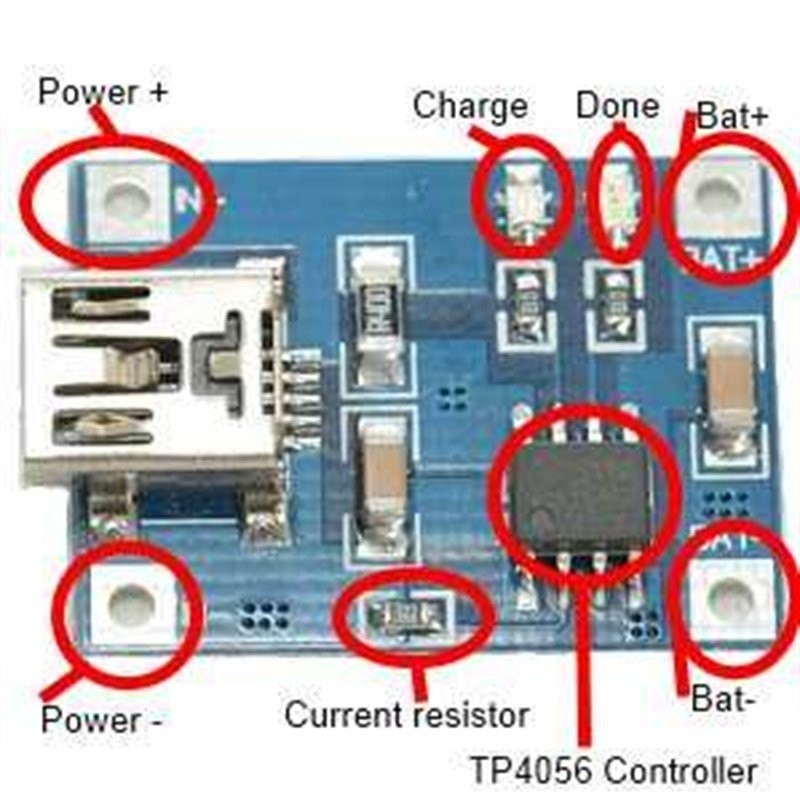

Item Name: Lipo battery charging board
Item NO.: TP4056
Charging Method: linear charge
Charging Current: 1A Adjustable
Charge Accuracy: 1.5%
Input Voltage: 4.5V-5.5V
Full Charge Voltage: 4.2V
Charging Indicator: Blue light lit charge,red light lit full charge
Charging Input Interface: Mini USB
Working Temperature: -10 Degree to +85 Degree
Reverse: NO
Weight: 1.8g
External Dimensions: 25 * 19 * 10mm
Usage: Used for single lipo or multi-section lipo parallel charging,can take power from the USB port.
Item Name: Lipo battery charging board
Item NO.: TP4056
Charging Method: linear charge
Charging Current: 1A Adjustable
Charge Accuracy: 1.5%
Input Voltage: 4.5V-5.5V
Full Charge Voltage: 4.2V
Charging Indicator: Blue light lit charge,red light lit full charge
Charging Input Interface: Mini USB
Working Temperature: -10 Degree to +85 Degree
Reverse: NO
Weight: 1.8g
External Dimensions: 25 * 19 * 10mm
Usage: Used for single lipo or multi-section lipo parallel charging,can take power from the USB port.
