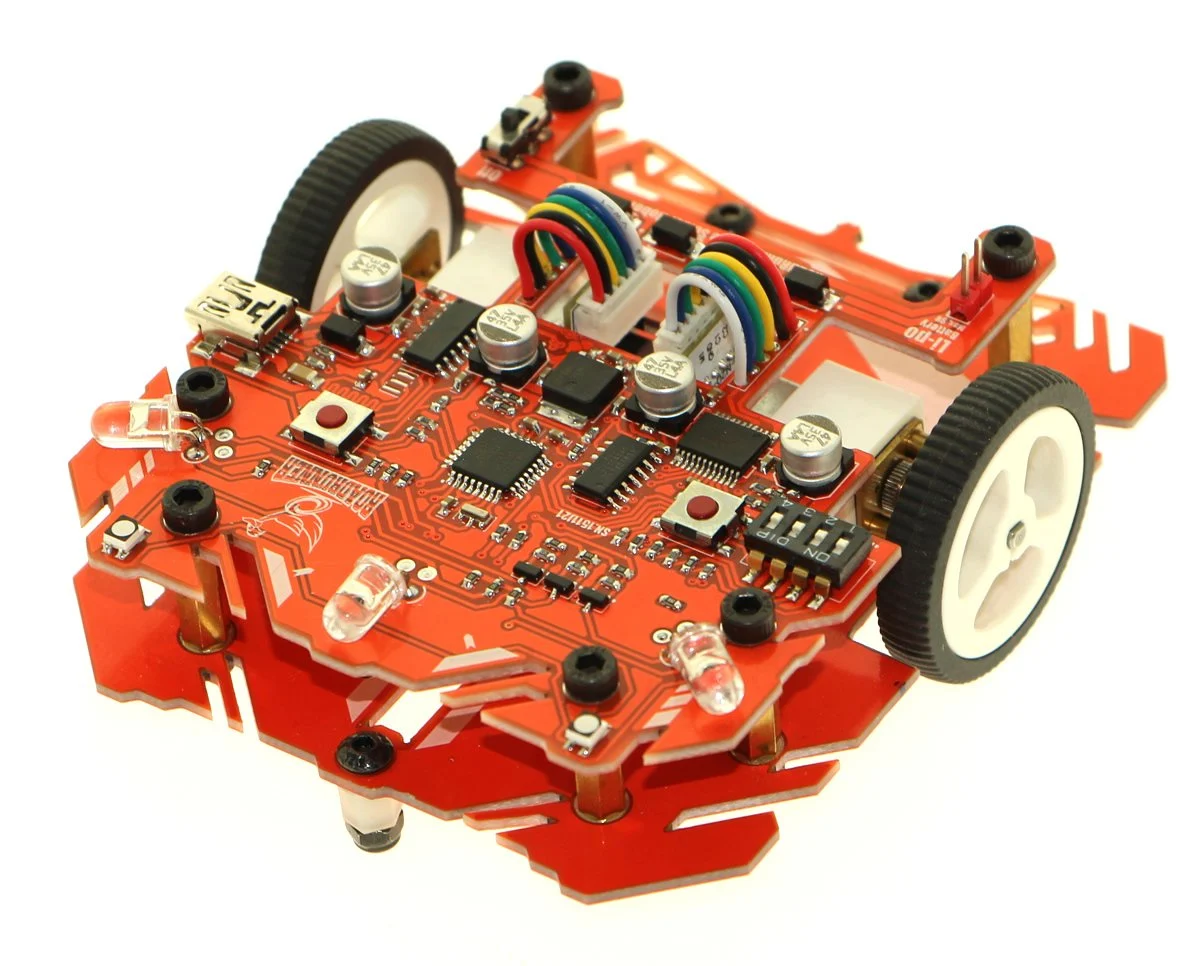

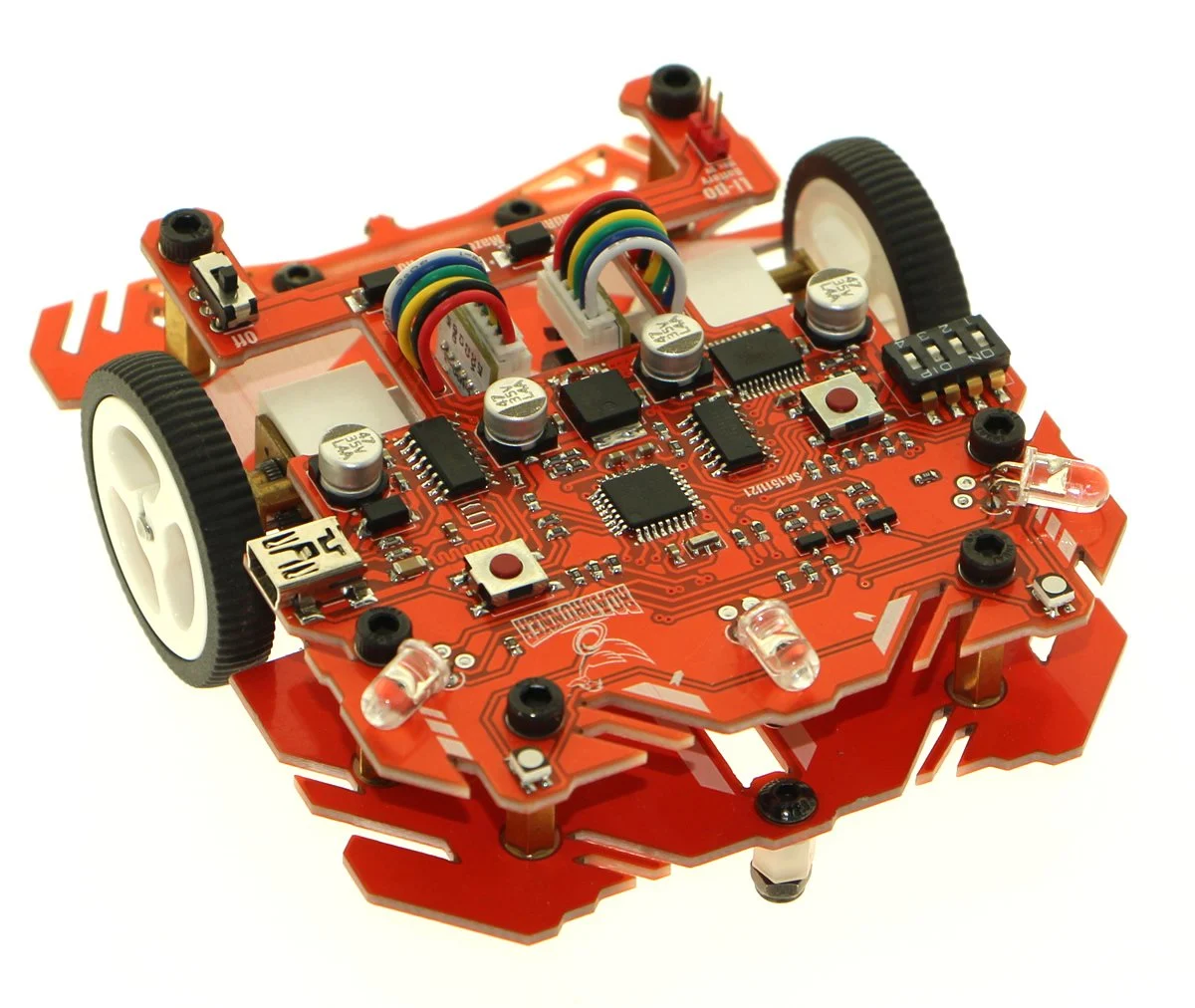

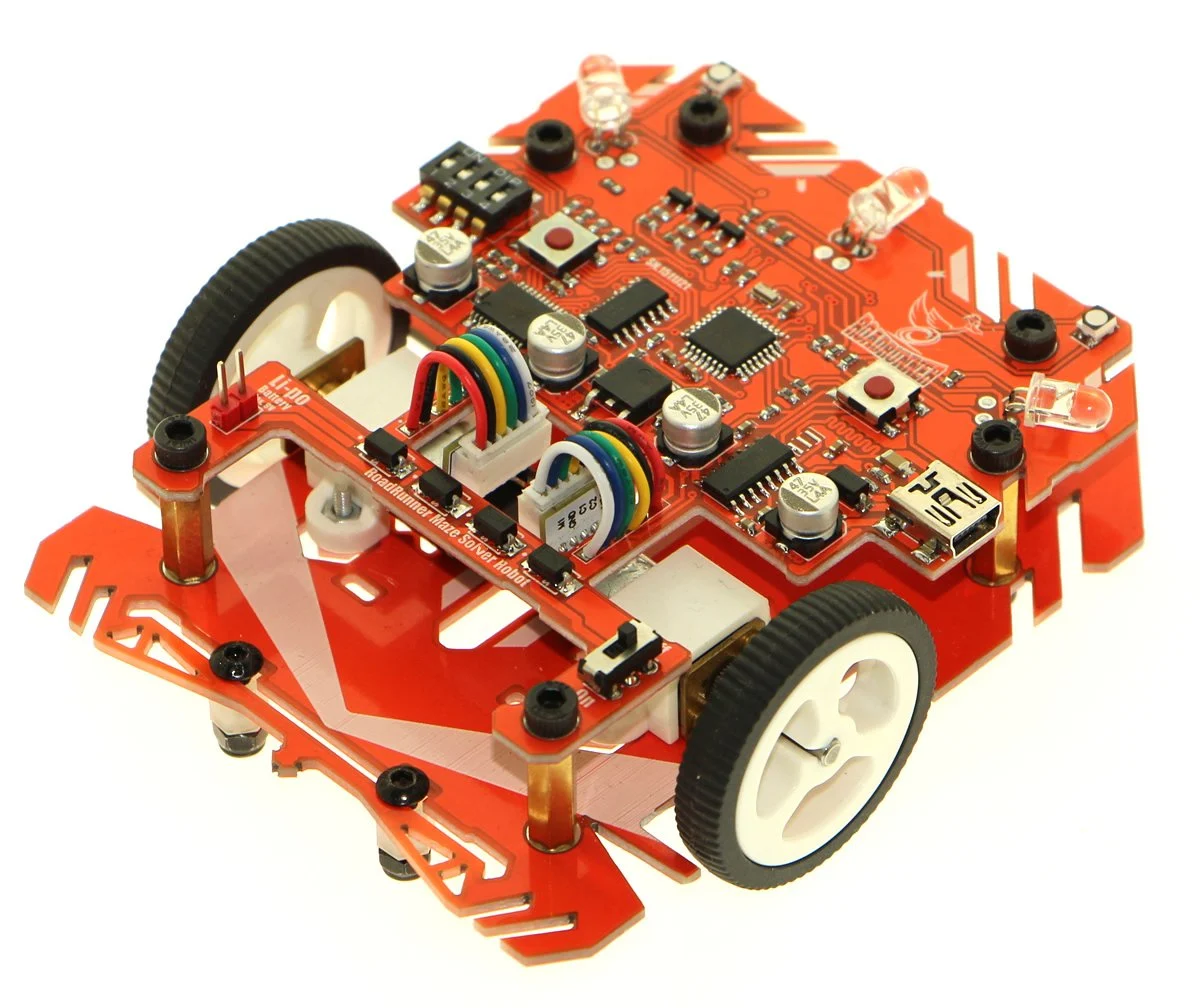

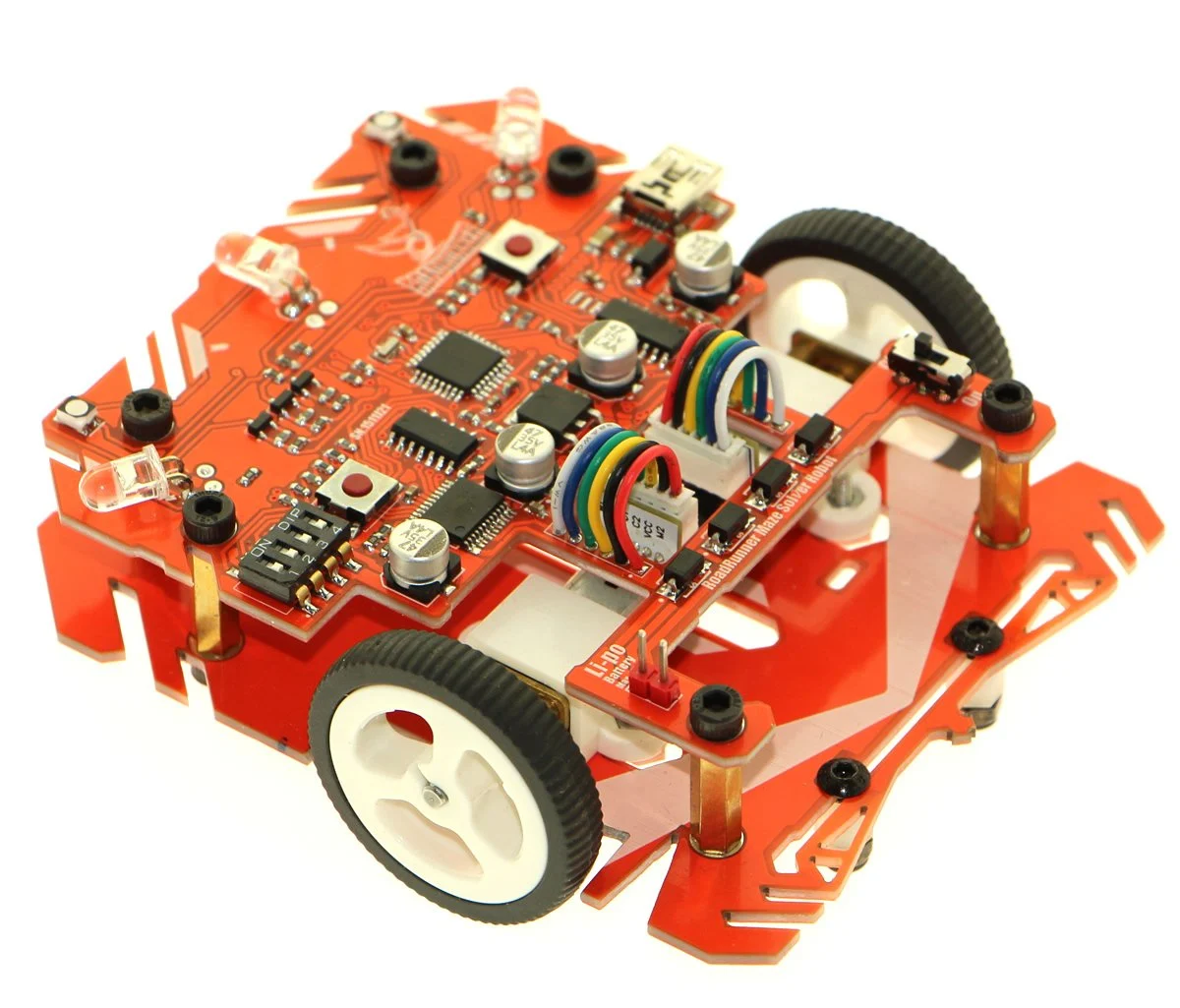

RoadRunner Maze-Solving Robot Kit

Specially revised and developed for the 2025 Robot Competitions!

This robot kit completes a maze on a designated black surface with white walls, starting from the starting point and reaching the finish line in the shortest time possible. Meet our new and professional design RoadRunner Maze-Solving Robot Kit!

It is designed for maze-solving robot categories in both national and international robot competitions.

Open-source software, developed by our professional team, is provided free of charge to those who purchase this robot kit, and it can be further customized and developed.

The RoadRunner Maze-Solving Robot Kit is shipped fully assembled, produced and tested by our team before delivery.

We strongly recommend this kit for teams aiming for precision due to its speed and stabilization, achieved with NovaMax 12mm 6V 750 RPM encoder motors.

The specially developed software allows the robot to analyze dead-end paths and avoid entering them again. It accurately follows walls to reach the end of the maze.

Equipped with 3 analog IR sensors, the robot can measure the distance between walls and center its body accordingly. Measured values between 0–20 cm are used to calculate proximity to walls.

IR sensors are controlled via N-Channel MOSFETs, allowing on/off signals and adjustable operating frequency.

Distance traveled and 90-degree turns are stabilized using two NovaMax 6V 750 RPM encoder motors. The motor mounts and fixing holes are compatible with the standard 12mm motor casing, requiring no modifications.

Motor driver: Toshiba TB6612FNG, supporting precise PWM control and hard braking. Provides 1A per motor and up to 3A instantaneous current during stress or sudden direction changes.

Continuous voltage monitoring allows automatic speed adjustments. Low current consumption allows operation without Li-Po batteries, using disposable 9V batteries for 5–6 hours.

The robot operates on 7.4V–12.6V, leaving battery choice up to the user. A 9V test battery is included for setup.

Reverse voltage protection is built-in via a bridge diode; the robot functions correctly regardless of battery polarity.

Onboard user LEDs display sensor data in real-time. DIP switches allow speed adjustments or track selection.

Start and reset buttons allow the robot to start or reset without disconnecting power.

Fully PCB-based and lightweight chassis ensures smooth turns and straight-line movement.

Micromouse design, first produced in Turkey.

Front and rear mounting holes allow balance adjustment.

Pololu 32×7mm wheels ensure perfect traction on the track.

Atmega328P microcontroller allows Arduino programming and serial data reading.

CH340G USB-to-serial converter for programming via USB. CH340 driver required: [Driver Link](http://www.5v.ru/zip/ch341ser.zip)

No soldering required; fully assembled and tested by our team.

Recommended optional accessories: 7.4V 450mAh 40C Li-Po battery, JetFire B3 Pro Max 20W 1600mAh Compact Li-Po charger.

Operating Voltage: 7.4V–12.6V

Motors: 2 × NovaMax 6V 750 RPM Encoder Motors

Weight: 98 g

Dimensions: 98 × 82 mm, Height: 38 mm

Microcontroller: Atmega328P

USB/Serial Converter: CH340G

Sensors: 3 × Analog IR Sensors

Motor Driver: TB6612FNG

DIP Switches: 4

Buttons: Start and Program Reset

Polarity-Free Power Input

USB Programming Port

IR Sensor On/Off Control

Wheels: 2 × Pololu 32×7mm

Motor Mounts: 2 × 12mm

On/Off Switch

Arduino Interface Support

* Guarantee of the experienced Sumozade team

* Customizable maze-solving program

* High-quality, tested components

* NovaMax 12mm 6V 750 RPM Encoder Motors

* Low power consumption

* High-current motor drivers

* User-friendly buttons and switches

* RoadRunner Maze-Solving Robot

* 9V Battery

* 9V Battery Holder

* USB Programming Cable

* Spare Consumables
