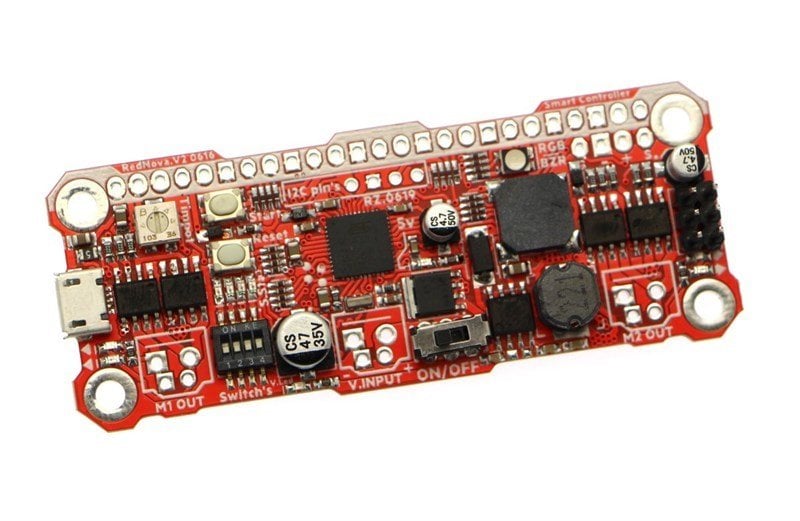

RedNova Robot Controller Board

RedNova is an advanced robot card based on arduino, the card is designed by Sumozade team to control your robot in a professional way.

Red Nova gets its processing power from RZ-Core Mcu Card . This card uses the Atmega32U4 Microcontroller and is supplied with the Arduino compatible Leonardo Bootloader. With its own library, you can use all the features of the card more easily and effectively. Advanced custom software will be shared with those who purchased the card . Free Software and Free After Sale Support.

Winner Team of RoboChallenge Competition 2018 in Romania used this card

You can achieve success by using our RedNova Robot Control Board.

With this card you can make professional robot projects for competitions. If you always want to be ahead of your competitors, you must have RedNova Advanced Robot Control Card

You can add a high level of quality to your projects using this highly advanced card for robot competitions, robot projects and robotics training.

Those who buy the Robot Card will be given a mini sumo robot program with 9 different tactical combinations for competitions free of charge.

Our robot card is manufactured in accordance with all robot competitions, you can install on the start module with the remote stop and start can do easily. Click to view the startup module. Compatible with All Japan tournament Robot Competition and All Robot Competitions.

Card Features:

• 7 - 40V voltage input can be made.
• 7 Amps x 2 Total 14A Output
• Reverse voltage, usb and short circuit protections are available.
• The current of the 5V regulator is 2 ampere. (Short-circuit protected)
• There are 2 motor drive controls. Each of the motor drives outputs 7 Amps. A total of 14 Amps is provided to you.
• There is user button on board.
• There are 4 pcs. 2 position dipswitch. (You can choose tactics with this switches )
• There is 1 RGB user leds.
• I2C and Serial port pins are available.
• Bluetooth, acceleration sensor and Lcd display can connect
• There are 11 Free io pins.
• Size: 77 x 30 x 9 mm.
• Weight: 10g.

What You Can Do with RedNova Some of the Robot Projects are Below.

• Minisumo Robot
• Line Following Robot
• Land Robot Project
• The Robot
• Labyrinth Robot
• Fire Fighting Robot
• Light Tracking Robot
• Robot Arm
• Bluetooth Controlled Projects
• and many more you can do your project.

Power:

The RedNova Robot Card can be powered by USB or from an external power source. The external power supply may be an AC-DC adapter or a battery. . 7-40V can be used as an external power supply. The operating voltage of the microcontroller on the robot board is 5V.     7-40V voltage from the power socket is reduced to 5V by the voltage regulator on the card and distributed to the card. 7.4V - 11.1V - 14.8V - 18.5V - 22.2V Lipo batteries is Suitable for This Card

Memory:

The Atmega32u4 microcontroller has 32 KB flash memory (up to 4 KB used by the bootloader). It has 2.5 KB SRAM and 1 KB EEPROM.

Input and Output:

11 Empty pins can be used as input or output on the user card.

I2C: D2 - (SDA), D3 - (SCL)

External Interrupts: D3 - (interrupt 0), D2 - (interrupt 1)

Analog Pin: A0, A1, A2, A3, A4, A5, A6, A7(You can do analog reading from D4 pin)

Digital Pin: D2, D3, D7

Built-in Features:

Motor Drive: There are 2x7A motor drives. Motor outputs have short circuit protection. Motor1-> D5 - D11 is connected to motor2-> D9 - D10 pins.

Regulator: There is a regulator circuit capable of delivering 2 Amps output in 7-40V range. The card will protect itself when you plug in the external power supply. In addition, the card will protect itself from short circuit in the 5V line.

Button: There is a button. The button is connected to D7

Leds: There is a RGB user led. LEDs are connected to pins D0, D30 and D1.

Dipswitches : 4 pcs 2 position dipswitches Connected to D16, D15, D14, D13 pins.
