50:1 Micro Metal Gearmotor HPCB 6V 625Rpm
18,90 USD
Category
Product Code
T429
Price
18,90 USD
* Worldwide Shipping Available
Pololu High Power series micro gearmotors are very ideal for your projects. These motors have carbon brushes and this leads a high performance and long life. You can use them for Your mini sumo, light follower, line follower and many other robot projects.

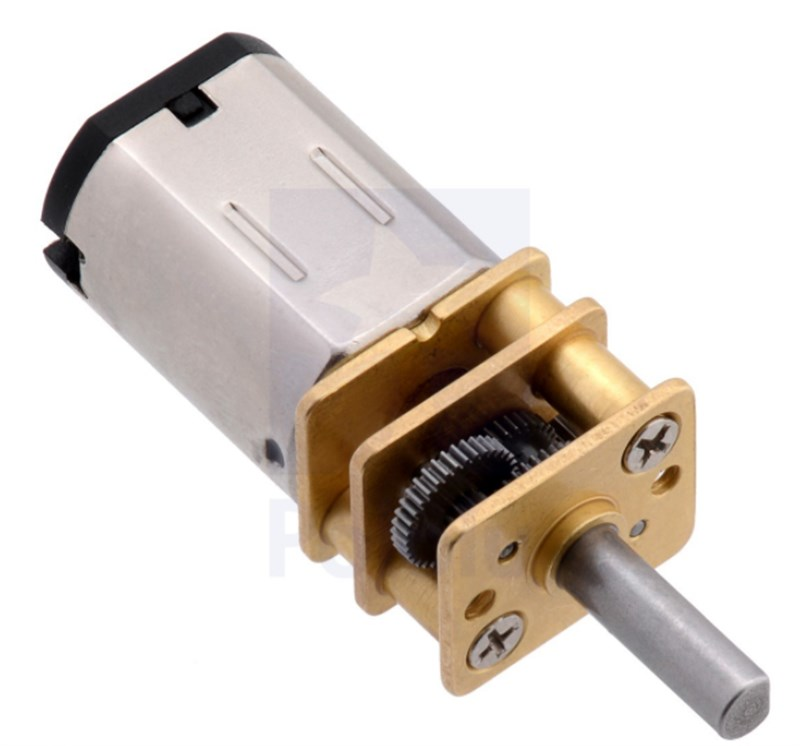

This gearmotor is a miniature high-power, 6 V brushed DC motor with long-life carbon brushes and a 51.45:1 metal gearbox. It has a cross section of 10 × 12 mm, and the D-shaped gearbox output shaft is 9 mm long and 3 mm in diameter.
Key specs at 6 V: 625 RPM and 120 mA with no load, 15 oz-in (1.1 kg-cm) and 1.6 A at stall.
Dimensions
- Size:10 × 12 × 26 mm
- Weight:9.5 g
- Shaft diameter:3 mm
General specifications
- Gear ratio:51.45:1
- Free-run speed @ 6V:625 rpm
- Free-run current @ 6V:120 mA
- Stall current @ 6V:1600 mA
- Stall torque @ 6V:15 oz·in
- Extended motor shaft?:N
- Long-life carbon brushes?:Y
- Motor type:1.6A stall @ 6V (HPCB 6V - carbon brush)
