12V 200Rpm 60mm High Torque Motor
55,00 USD
You can use this motor in your robot projects and also for all your projects that require high torque.
These gearmotors, which have become popular in recent years, are used successfully in many sectors due to their torque and nominal size.
You can use it successfully in industrial applications, Land Robots, War Robots, Jimmy Jib Camera Industry and many machines, we highly recommend it.
Specifications:
+ Operating Voltage Range: 12-24 V
+ Motor Rotation Speed: 200Rpm (12V)
+ Motor Power: 25W
+ Rated Load Torque: 7.2kg/cm
+ Stopping Torque: 17kg/cm
+ Idle Current Drawn: 275mA
+ Strain Current: 3.8A

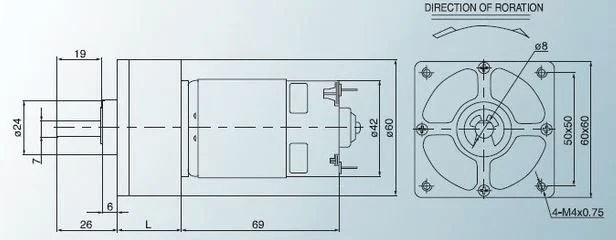

+ Gear diameter: 60 mm
+ Motor diameter: 42 mm
+ Total length: 140 mm
+ Shaft diameter: 8 mm (with D shaft)
+ Shaft length: 19 mm
+ Weight: 535 gr.
