Ready to Build the Fastest Line Follower Robot?

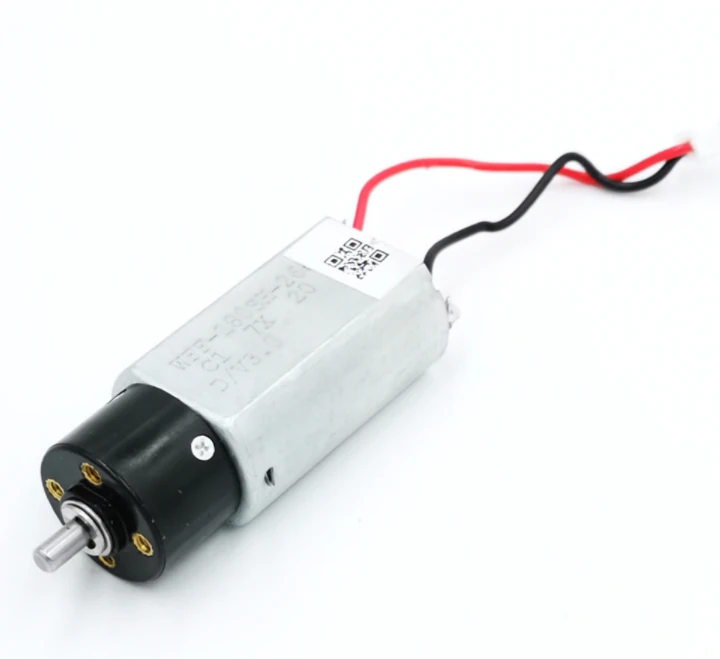

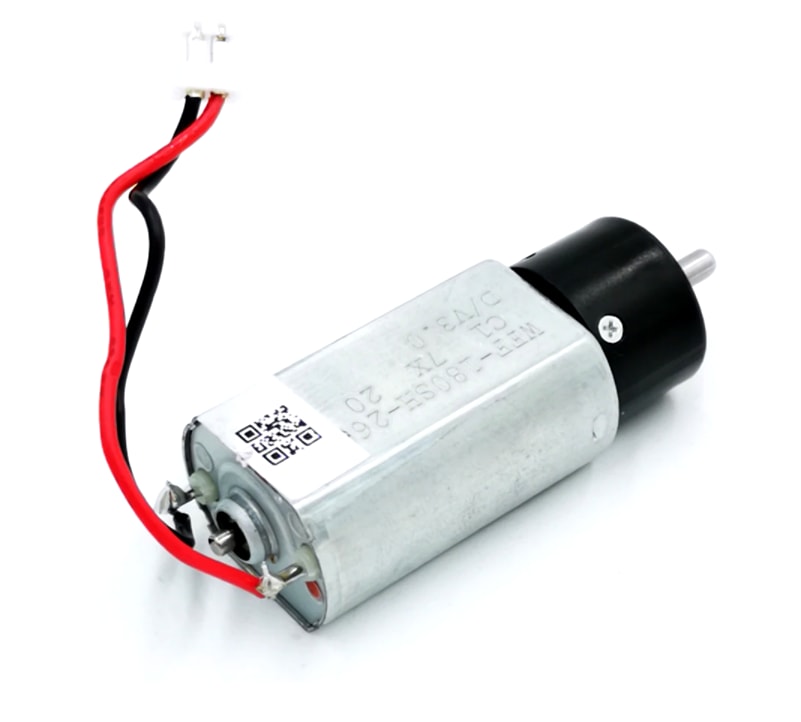

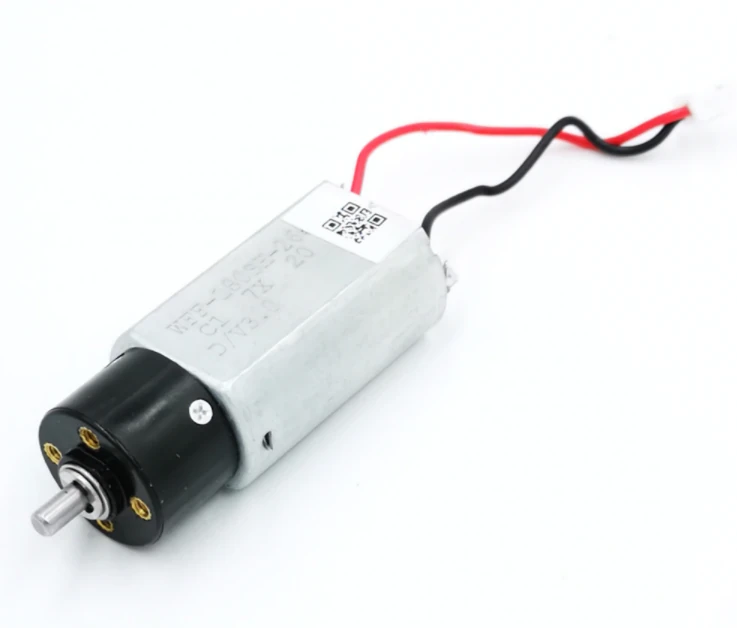

This is a China-made, mid-quality, high-speed planetary line follower robot motor with 12V and 5400 RPM.
It is used by those who want to build fast and torque-rich line follower robots.
The main advantage of this motor is that it is high torque and high speed, featuring an ultra-precise planetary plastic gearbox.
The motor comes with a pre-soldered socket, so you can use it comfortably in your projects.
Purchase Limit: Maximum of 4 units per person to allow everyone to benefit from this campaign. Do not trust sellers who sell the same motor at excessive prices.
Technical Specifications
- Nominal Operating Voltage: 12V – 5400 RPM
- Maximum Operating Voltage: 16V
- Speed: 5400 RPM (at 12V)
- No-load Current: 265 mA
- Operating Current: 415 mA
- Stall Current: 3.7 A – Very Powerful :)
- Nominal Load Torque: 1.20 kg·cm
- Stall Torque: 2.8 kg·cm
- Motor Diameter: 20 mm
- Gearbox Diameter: 16.9 mm
- Shaft: 3 mm D-shaft, center output
- Shaft Length: 5.5 mm
- Overall Length (end to end): 55 mm
- Weight: 38 g
