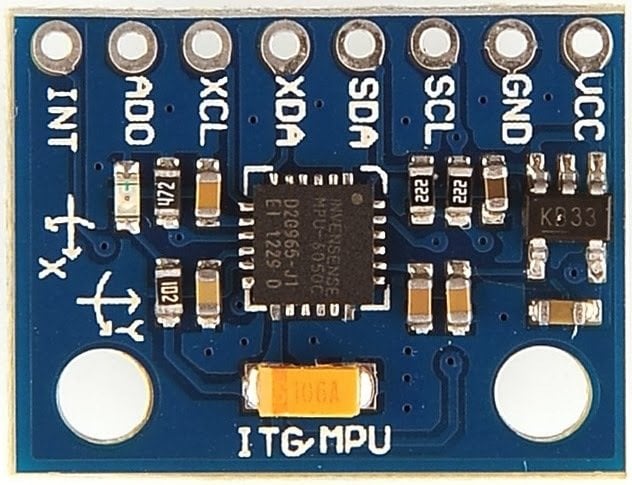

MPU6050 6 Axis Acceleration and Gyro Sensor

MPU-6050 is a six axis IMU sensor card which includes a triaxial gyro, a triaxial angual accelerometer and often used in various hobby, multicopter and robotic project.

The card works between 3 and 5 V supply voltage because of the voltage regulator based on it. Both of accelerometer and gyro outs give I²C outs from differend channels. It can give a 16-bits resolution out on each axis.

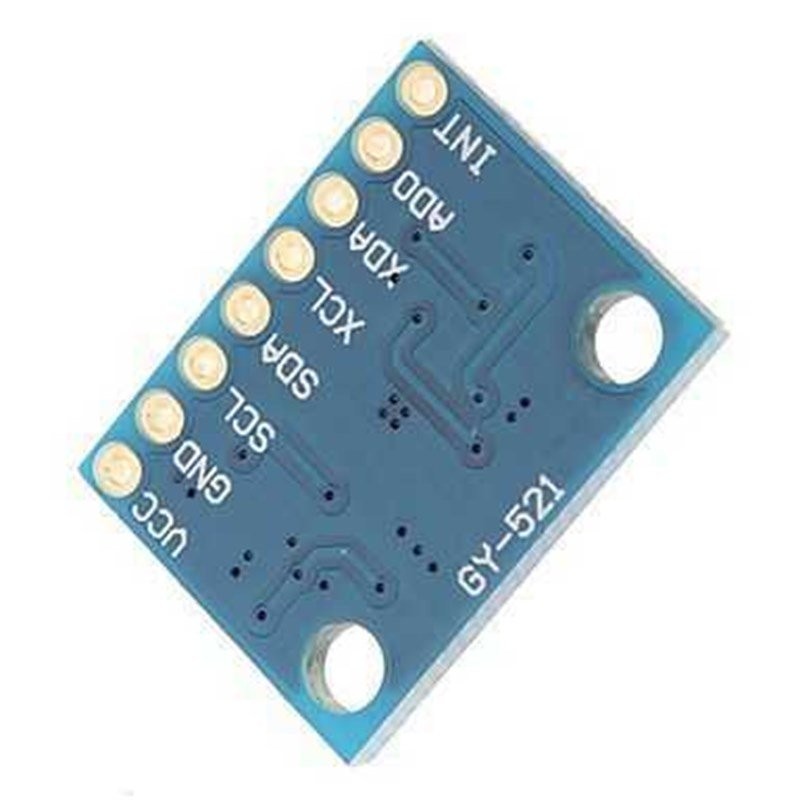

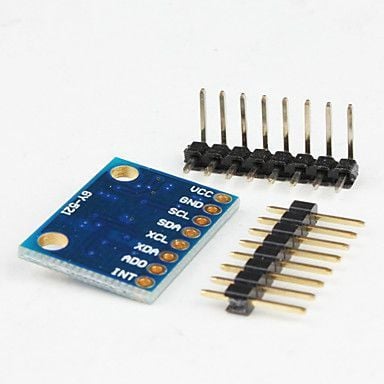

With standard located pinouts it can be used with breadboard and differend circuit cards easily.

Features:

• Operaation volage: 3-5V
• Gyro measurement range: + 250 500 1000 2000 ° / s
• Angular accelerometer measurement range: ± 2 ± 4 ± 8 ± 16 g
• Channel: Standard I²C
