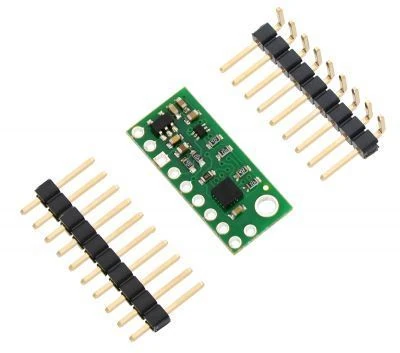

L3GD20H 3-Axis Gyroscope Sensor with Voltage Regulator

The L3GD20H is a sensor that measures the angular rotation rates of the X, Y, and Z axes. It offers three selectable angular rate sensitivities: ±245°/s, ±500°/s, and ±2000°/s. Sensor data can be read via digital I2C or SPI interfaces.

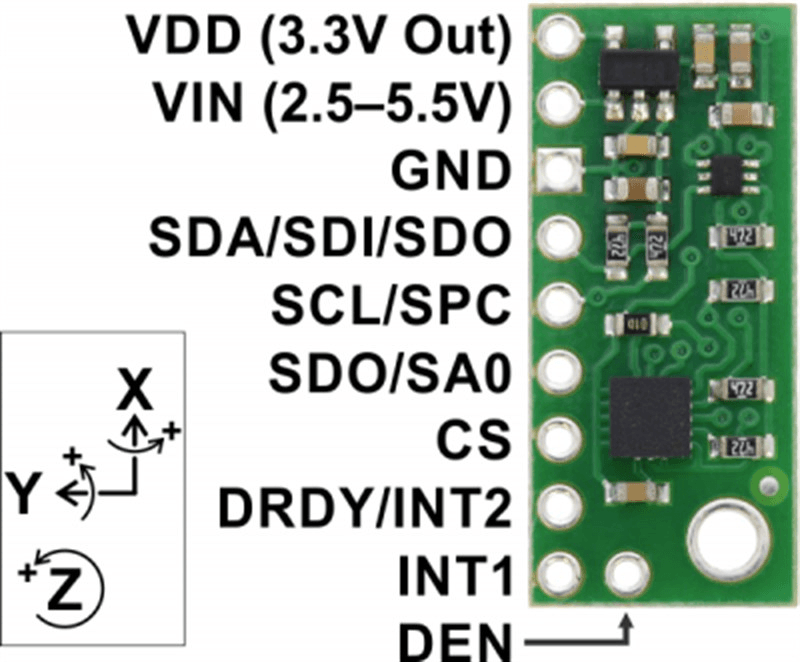

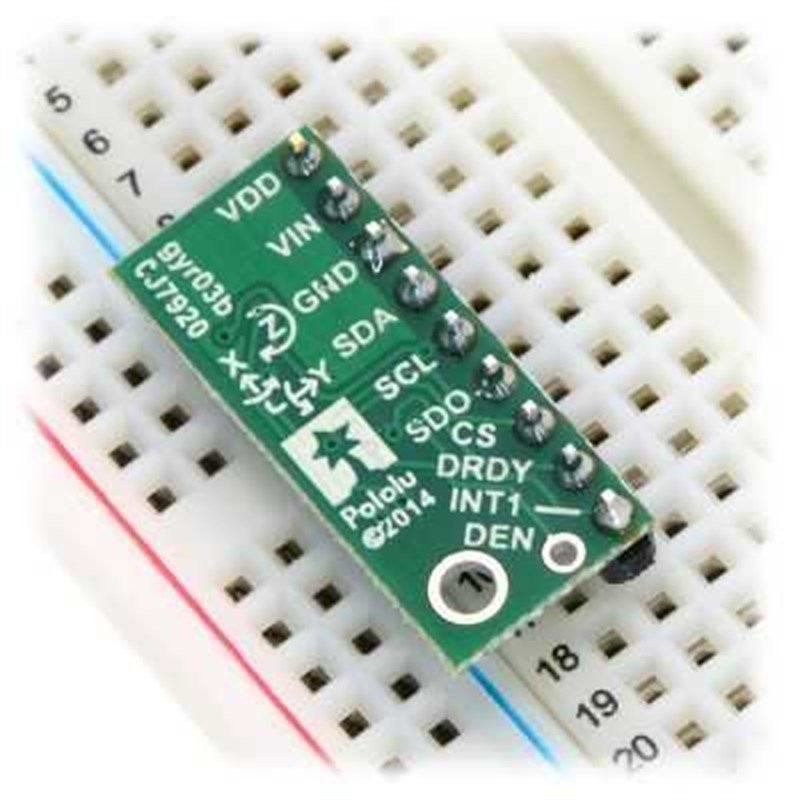

The onboard linear 3.3V regulator allows an input voltage range of 2.5V to 5.5V. Thanks to the standard 0.1" pin spacing, you can easily use the module on a breadboard or perfboard.

The L3GD20H includes many configurable features such as selectable output data rates, a FIFO buffer for storing output data, and a programmable external interrupt signal. Angular rate readings can be accessed through a configurable digital interface that supports both I2C and SPI modes.
