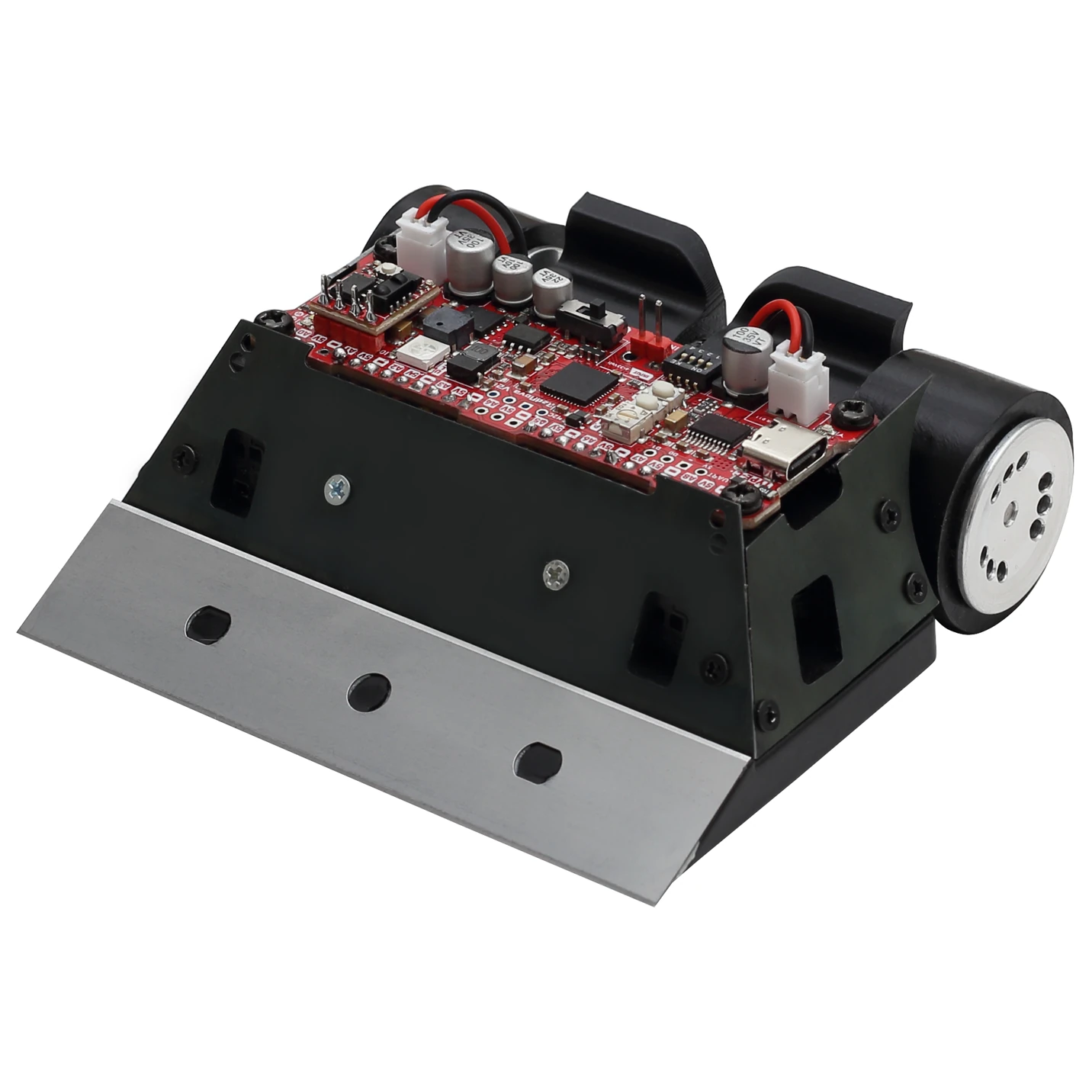

JUTSU Professional Mini Sumo Robot Kit

Next-Generation Mini Sumo Performance

The JUTSU Mini Sumo Robot Kit is the latest high-performance competition robot developed by the Robotzade engineering team for professional mini sumo tournaments. Designed with advanced hardware, precision balance, and optimized combat dynamics, JUTSU delivers exceptional speed, stability, and pushing power on the arena.

Built with a durable CNC-machined chassis, precision blade mounting system, and cutting-edge electronics, JUTSU is engineered to dominate competitive mini sumo matches with fast reactions and aggressive maneuverability.

With compact dimensions of 100 × 95 × 48 mm and a total weight of only 415 g, JUTSU combines lightweight agility with powerful attack capability.

Why Choose JUTSU Mini Sumo Robot Kit?

Competition-Oriented Professional Design

Fully compliant with mini sumo competition standards and optimized for tournament-level performance.

Superior Balance and Stability

Optimized weight distribution and NovaMax motors provide excellent body balance and stable movement during intense pushing battles.

Maximum Grip and Traction

High-performance Bond silicone wheels deliver outstanding surface grip for maximum pushing force and acceleration.

Advanced Sensor Infrastructure

Fast object detection and precise directional control ensure rapid reaction against opponents.

Open-Source Software Support

Flexible software architecture allows users to develop and customize their own strategies easily.

Hardware Specifications

Component	Specification

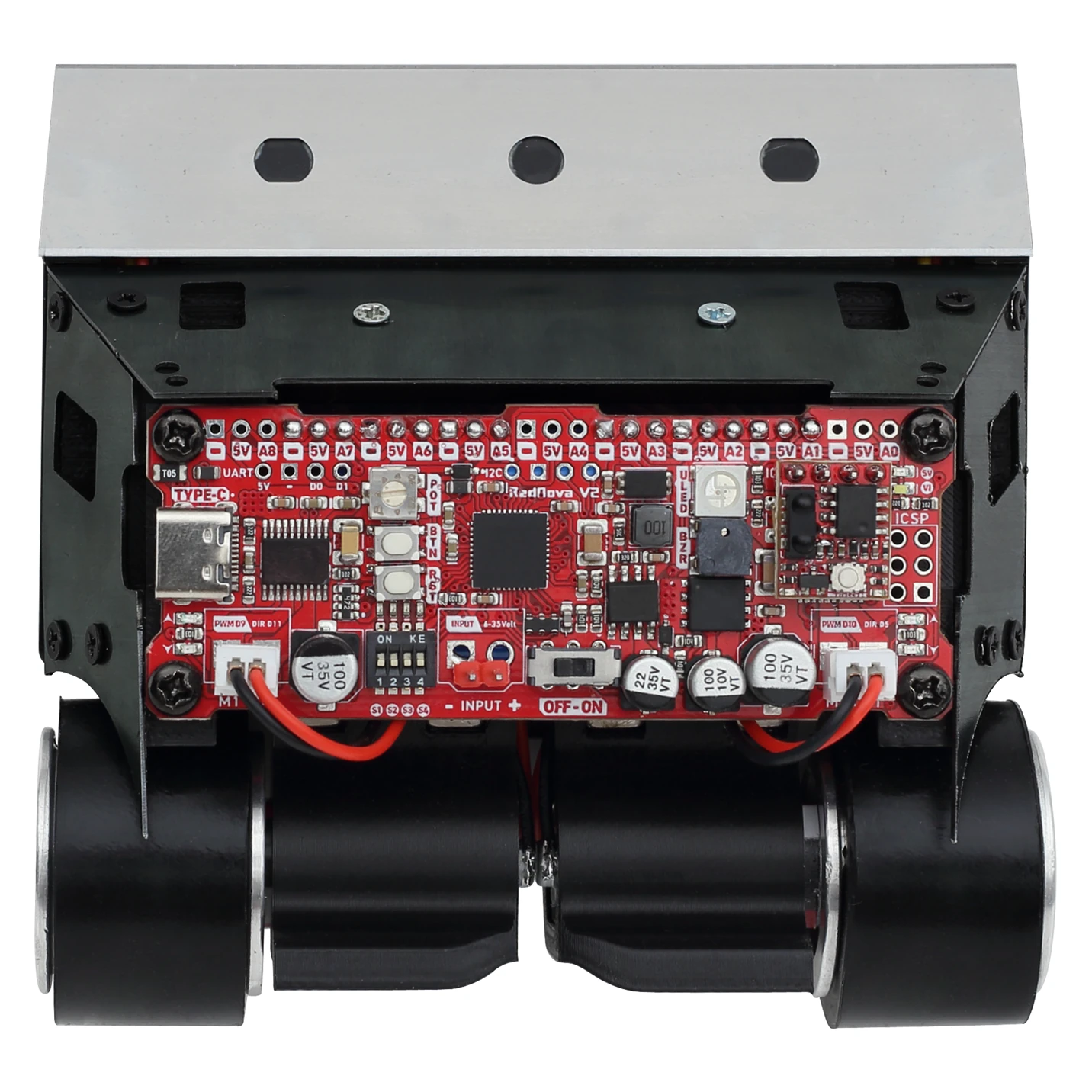

Robot Control Board	Rednova V2 Advanced Robot Control Board
Motors	2 × NovaMax 800 RPM DC Motors
Chassis	CNC-machined body with spring steel protection plates and matte black electrostatic coating
Wheels	Bond silicone wheels
Mini Sumo Blade	100 mm dual-sided usable sharp blade
Object Sensors	RZ60S Digital Distance Sensors
Line Sensors	QTR-1A Line Sensors
Battery	3S 11.1V Li-Po
Dimensions	100 × 95 × 48 mm
Weight	415 g

Maximum Grip and Pushing Power

JUTSU uses specially selected Bond silicone wheels to achieve superior traction on the arena surface. This optimized grip system transfers motor power directly to the ground without wheel slip, providing stronger pushing capability during combat.

The carefully optimized motor-wheel combination delivers:

• Fast acceleration
• High torque
• Stable driving performance
• Efficient power transfer

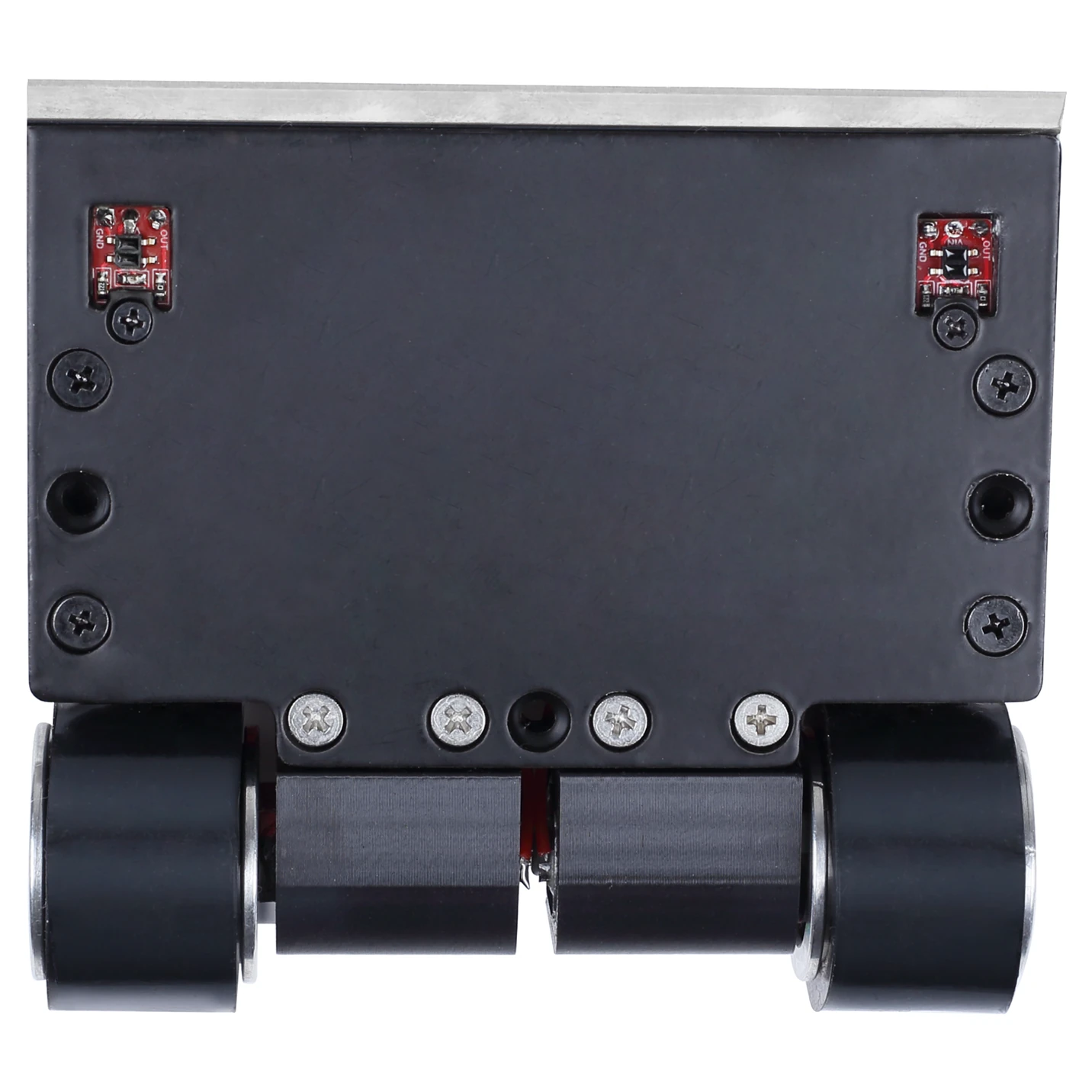

Advanced Sensor System

JUTSU features an optimized sensor configuration designed for fast and accurate reactions.

The robot includes:

• 4 × RZ60S object sensors for opponent detection and directional tracking
• 2 × QTR-1A line sensors for reliable arena edge detection

Thanks to this advanced sensor infrastructure, JUTSU can quickly identify opponents, execute accurate attack maneuvers, and maintain stable control inside the arena.

Advanced Software Support

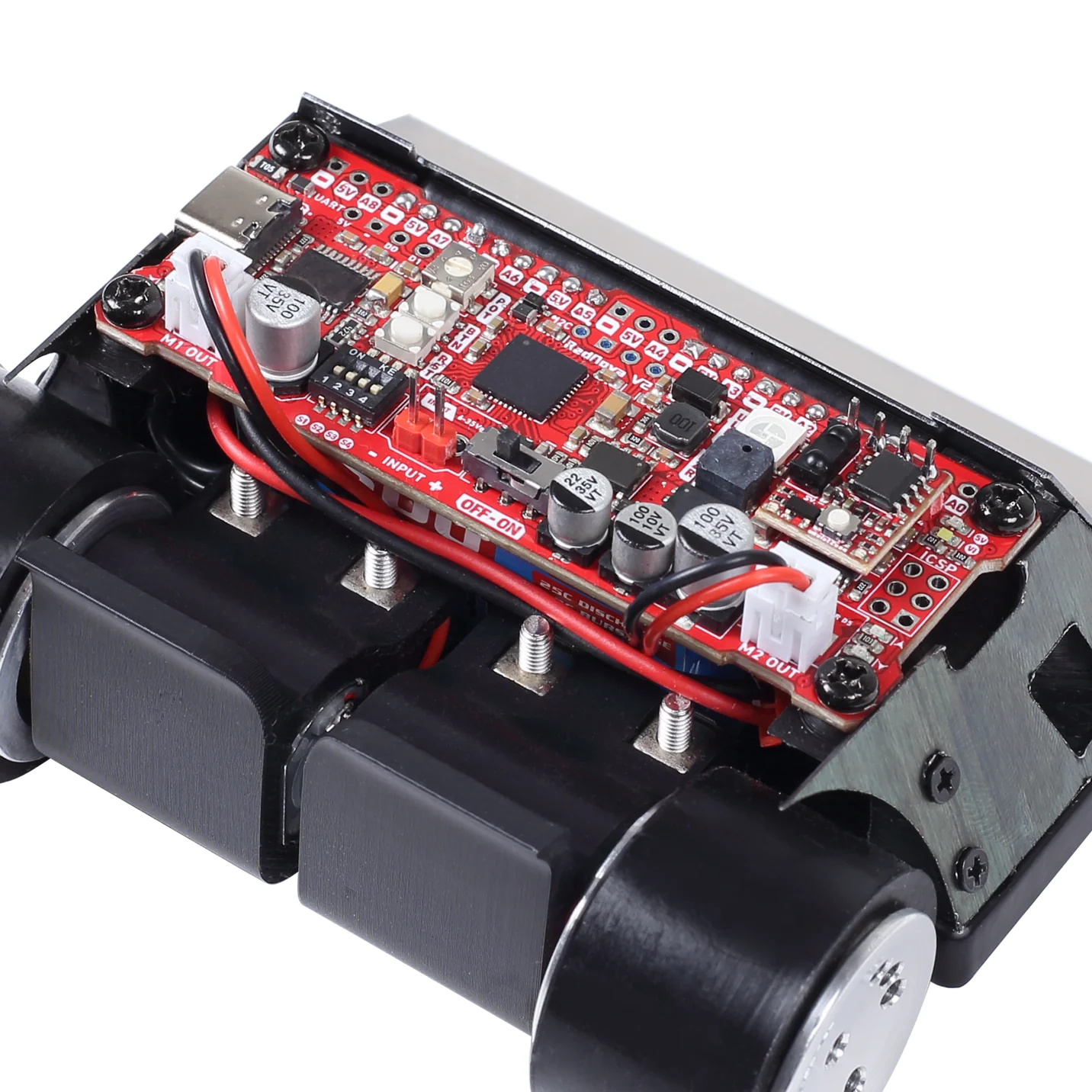

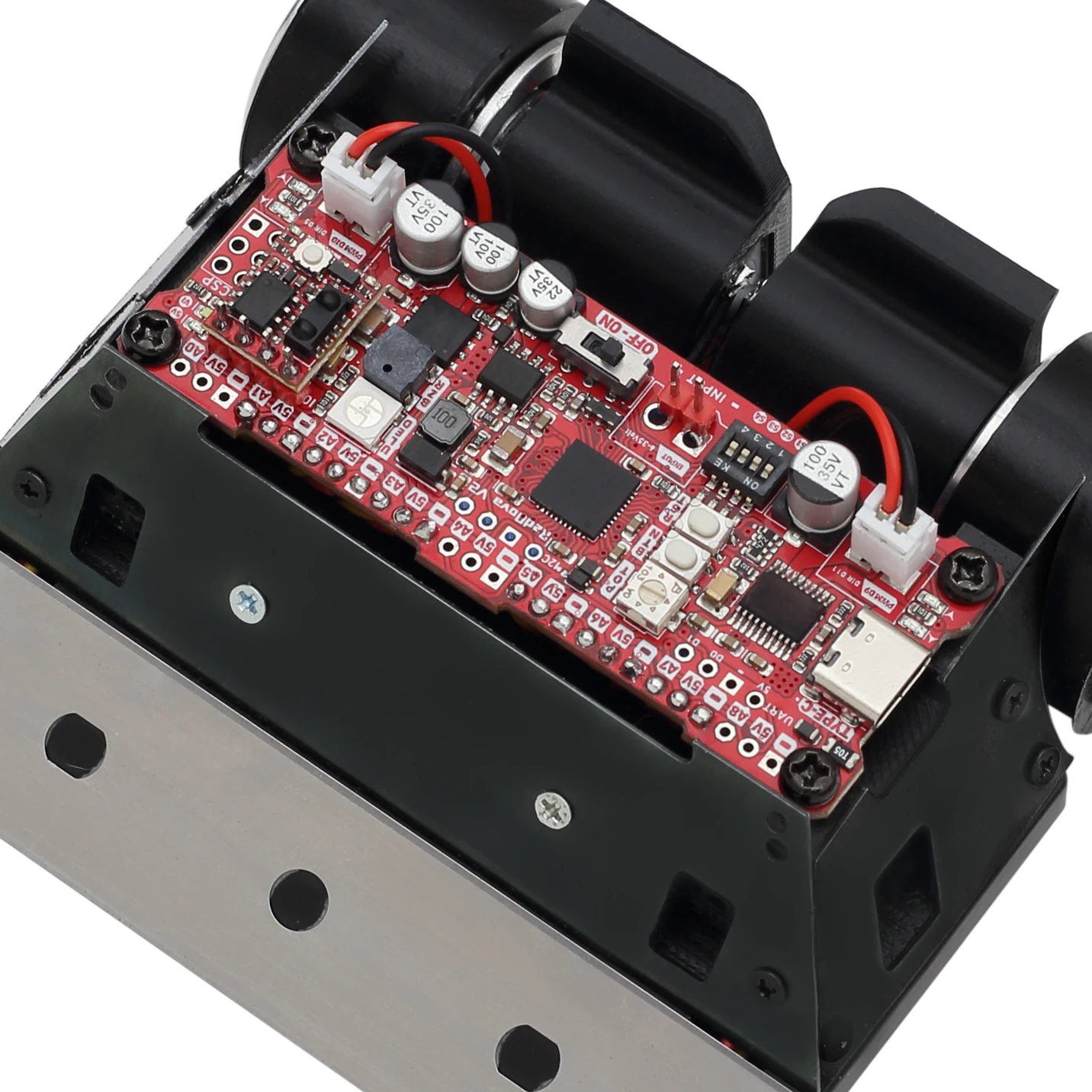

Powered by the Rednova V2 Control Board, JUTSU offers both beginner-friendly usability and professional-level control capabilities.

Key software features include:

• 9 different tactical strategy combinations
• Automatic opponent-based attack modes
• Real-time sensor feedback
• Fast and stable turning algorithms
• Open-source programmable infrastructure
• Easy software customization and development

The system is designed to help users improve and test their own combat strategies with ease.

Designed Specifically for Mini Sumo Competitions

JUTSU combines every essential feature required for competitive mini sumo robotics into a compact and efficient platform:

• High-performance Rednova V2 control system
• Durable and balanced CNC chassis
• Aggressive mini sumo blade design
• NovaMax 800 RPM high-speed motors
• Low-profile body structure for reduced visibility
• Multiple tactical combat modes

Ready to Compete

The JUTSU Mini Sumo Robot Kit is delivered fully assembled with professional open-source software pre-installed.

Its optimized mechanical structure, advanced electronics, and powerful motor system make JUTSU a reliable choice for both beginners and experienced competitors looking for a serious advantage in mini sumo tournaments.
