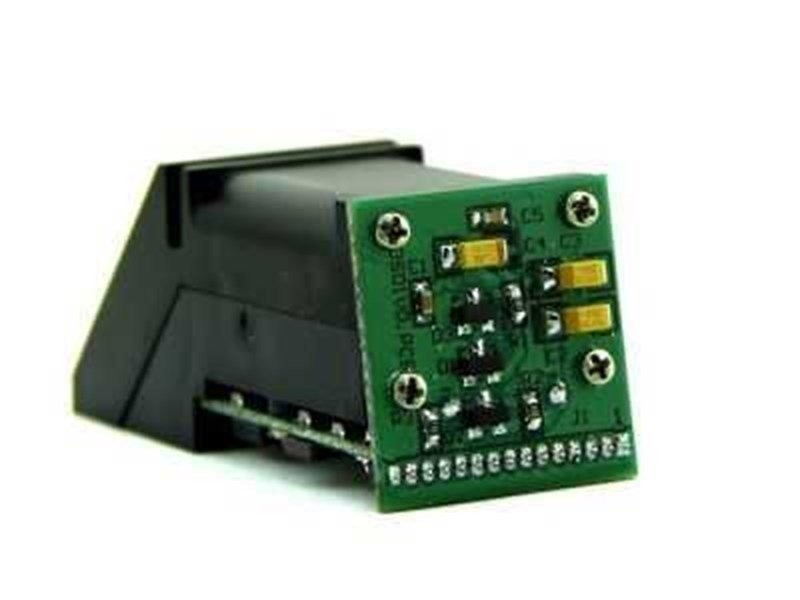

Fingerprint Sensor Grove

The Finger Print Sensor is one optical fingerprint sensor which will make fingerprint detection and verification adding super simple.There's a high powered DSP chip AS601 that does the image rendering, calculation, feature-finding and searching.

You can also enroll new fingers directly - up to 162 finger prints can be stored in the onboard FLASH memory. There's a red LED in the lens which will light up during taking photos so that you know its working condition.

• Storage capacity: 162 finger prints
• Security level and communicating rate can be adjustabled.
• High power DSP IC AS601 can be used as a control unit.

• Interface:

Pin Numble	Name	Type	Function Description
1	Vin	in	Positive Power Supply Input Terminal(Line color:Red)
2	TD	out	Serial data output, TTL logic levels(Line color: Yellow)
3	RD	in	Serial data input, TTL logic levels(Line color: White)
4	GND	-	Signal ground(Line color: Black)
