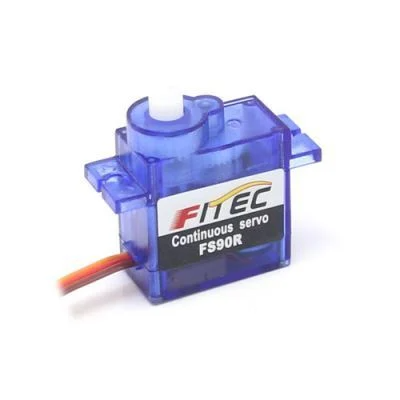

Feetech FS90R Continuously Rotating Micro Servo Motor
8,50 USD
Feetech FS90R is a continuously rotating servo motor with micro servo motor dimensions.
Note: Since continuously rotating servo motors do not give feedback like standard servo motors, angle control cannot be made. Direction and speed control can be done.
It has a speed of 130 Rpm and a torque of 1.5 kg/cm at 6V. It is fully compatible with Futaba remote controls and you can use it in your RC vehicles. In addition, you can easily use it in your own robot projects with the PWM signal you can receive from many microcontrollers.
FS90R converts signals of standard servo positions into continuous rotation speed. This motor has a stop position set at 1.5 ms. This time can be increased or decreased using the potentiometer on the motor. When a signal with a width above the stop position time is sent to the motor, it will rotate counterclockwise, and when a signal with a width below this time is sent, it will rotate clockwise. As the signal width increases, the rotation speed will also increase.
The gearbox is plastic. It is shipped with servo horns and other parts.
