220V 70 RPM 60mm Geared AC Motor YN60/10W
The 220V YN60/10W Geared AC Motor is a high-torque industrial motor with gearbox, designed for demanding low-speed applications. Operating directly from 220V AC mains power, it delivers strong and stable torque for heavy-duty systems.
This is one of the most widely used torque-focused AC geared motors in industrial machinery and automation systems, and it has been reliably used for years in applications requiring powerful, controlled rotation.
Motor Specifications
- Output Speed: 70 RPM
- Torque: 50 kg·cm
- Motor Speed (Before Gearbox): 1250 RPM
- Gear Reduction Ratio: 1/15
- Power:10W
- Operating Voltage:220V–240V AC (Mains Power)

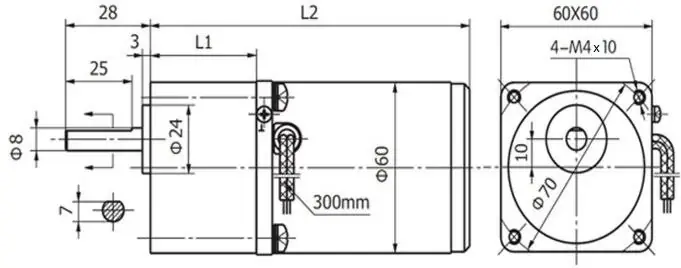

- Overall Length: 147 mm
- Motor Diameter: 60 mm
- Shaft Diameter: 8 mm (D-shaped shaft)
- Shaft Length: 25 mm
- Weight: 1319 g
