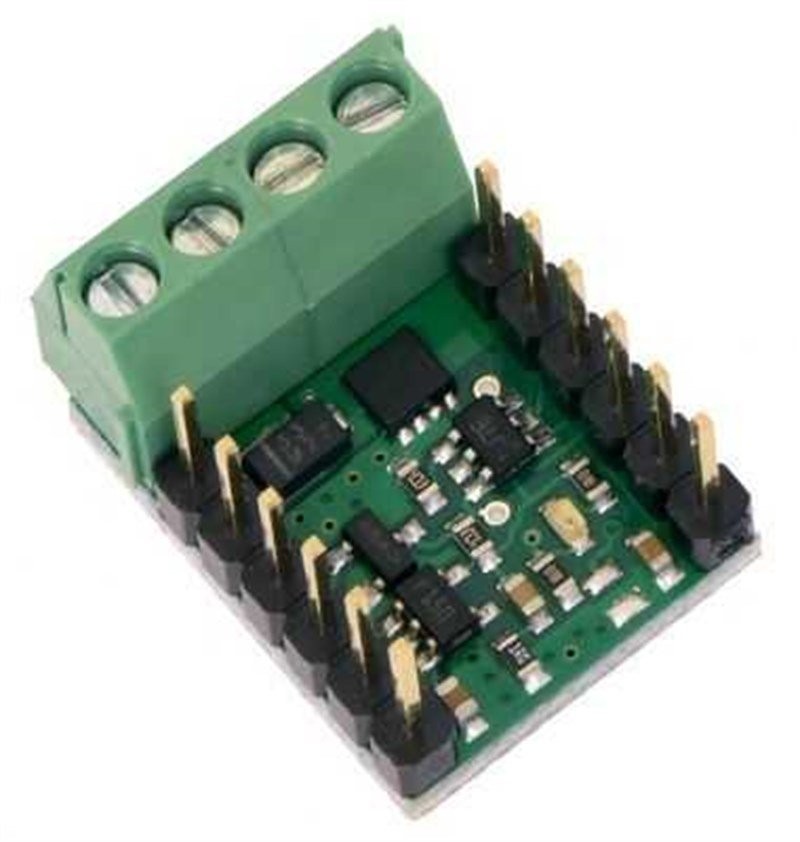

This RC switch is compatible with RC remote controllers and contains a small low-side MOSFET. It is possible to control lights, motor directions or any electronic system to set on/off as it switches the currents up to 15 A.
By safe start and safe guiding it is possible to rescue the board from anonymous over loads. The input voltage of the board can be between 2.5 V and 16 V.
Remote controllers are very praktical for mutual communications. However, as the output signal of remote controllers are in PWM format, it is not easy to integrate to another systems. As a result of this reason, the maximums of switching for this module operating with an remote controller are 30 V and 15 A.
Features:
- Operating voltage: 2.5 V - 16 V
- Max output current: 15 A
- Maximum voltage load: 30 V

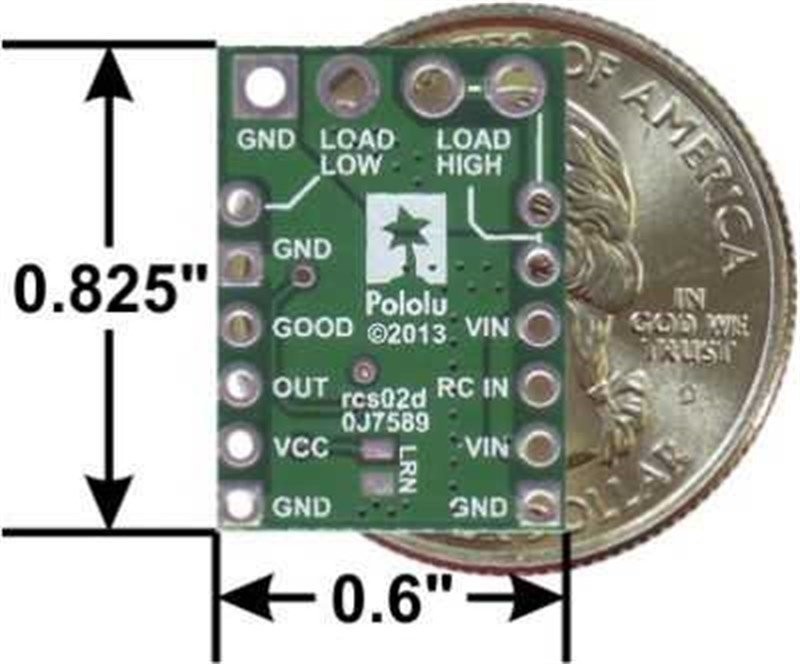

- PCB dimensions: 1.5 cm x 2.1 cm
- Wight: 1.2 gr
